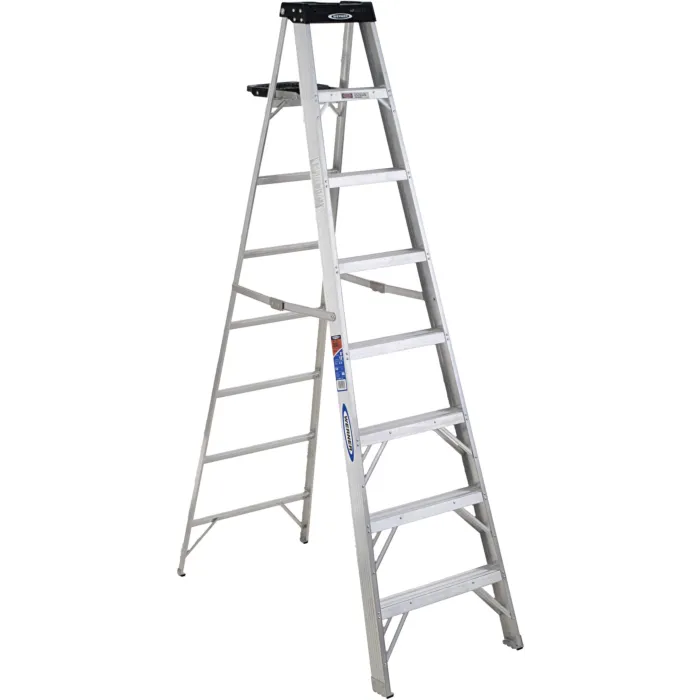

The 378 Aluminum 8 ft Step Ladder has a duty rating of 300 pounds yet is lightweight and easy to transport. The TOOL-TRA-TOP® has a drill holster, convenient tray for tools/paint and small parts. There is also a sturdy molded paint can hanger on the backside of the top. The SPILL-PROOF® pail shelf has a rag rack and holds a gallon paint can and automatically closes with the ladder. There is a full set of horizontals on the rear section. The TRACTION-TRED® steps are slip resistant and double riveted.
- Top step and bottom three steps braced
- TOOL-TRA-TOP® with drill holster, convenient tray for tools/paint and small parts
- Heavy duty aluminum bracket with slip-resistant foot pad
- External PINCH-PROOF™ spreaders
- Sturdy molded paint can hanger on back of top
- Double riveted slip-resistant TRACTION-TRED® steps
- Sturdy SPILL-PROOF® pail shelf with rag rack holds gallon paint can and automatically closes with ladder
- Full set of rear horizontals spaced one per foot
- 375
- 376
- 310
- 378
- 373
- 374
- AC11 Stepladder Hanger
Brand | Werner |
---|---|
UPC | 051751010572 |
Manufacturer Part Number | 378 |
Type | Type IA Duty Rating |
Reach Height | 12 ft |
Performance Rating | 4 star |
Load Capacity | 300 lbs |
Style | Single-Sided |
Size | 8 ft |
Rear Flange Dimension | 1 in |
Front Rails Dimension | 3 in |
Front Flange Dimension | 7/8 in |
Top Dimension | 5-1/8 in x 12-1/8 in |
Rear Rails Dimension | 1-1/4 in |
Steps Dimension | 3 in |
Approx. Cu. Ft. Per Unit | 5.1 |
Material | Aluminum |
With Pail Shelf | Yes |
Spreader Material | Aluminum |
Approx. Spread | 54-1/4 in |
Certifications | ANSI A14.2 (2007); OSHA |
Approx. Shipping Wt. Lbs. | 22.5 |
Description of Top Features | Paint tray slot, can hook, 3 tool holes, drill hole, p int, quart & gallon paint can, parts tray |
Max. Standing Height | 5 ft 9 in |
Approx. Width | 26-1/2 in |
