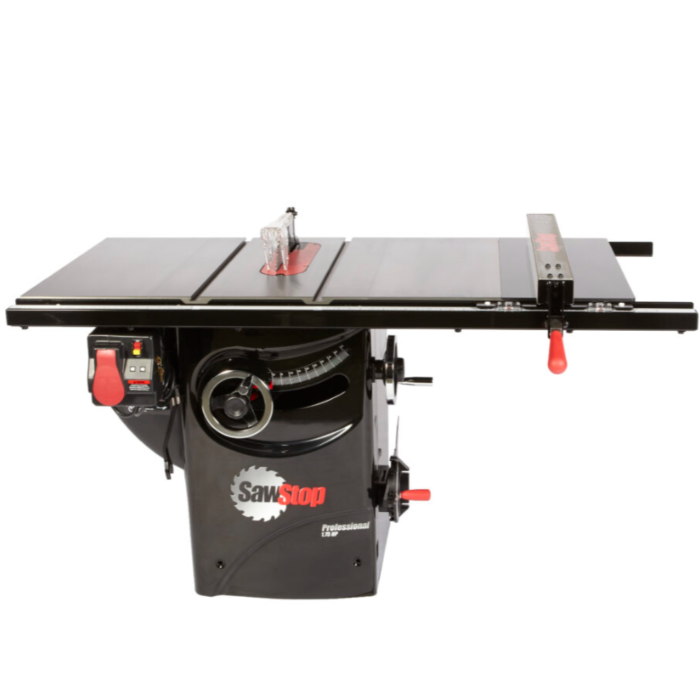

3HP Professional Cabinet Saw Body
SKU: PCS31230A
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$3,317.00
Features
Specifications
Downloads
The Professional Cabinet Saw is SawStop’s top-selling cabinet saw, offering unmatched fit, finish, and best-in-class cutting performance. It features a reliable advance fence assembly, and its unmatched quality is built on a trunnion and arbor engineered for precision, strength, and stability. Smooth and easy adjustability is provided by gas piston elevation, and table flatness boasts a maximum diagonal gap of only 0.010”. For a cleaner workspace, the saw delivers 99% dust collection, both above the table with the included blade guard and below the table via advanced shrouding; optional Overarm Dust Collection (Model # TSA-ODC, sold separately) can route dust away into the 4” port. Crucially, the SawStop Patented Safety System stops a spinning blade on contact with skin in less than 5 milliseconds, minimizing potential injury to a mere scratch. For continuous peace of mind, the Control Box houses an on-board computer that constantly checks all systems via the on-off switch and power paddle to reliably keep you safe. Finally, the powerful 3HP motor provides the extra performance needed to quickly rip through most materials.
- Unmatched fit and finish with a keen attention to detail make the Professional Cabinet Saw SawStop's most popular saw
- SawStop Safety System stops on contact with skin
| Brand | SawStop |
|---|---|
| Date Added | Apr 1, 2026 |
| Store Location (Lititz, PA) | Aisle 27, Section M3 |
| Package Length (in) | 30.00" |
| Package Width (in) | 42.00" |
| Package Height (in) | 31.00" |
| Manufacturer Part Number | PCS31230 |
| Saw body footprint | 19 3/8" W x 19 3/8" D (Cabinet) |
| Cast iron table | 20" W x 27" D |
| Weights - table saw only | 335 lb |
| Blade | 40-tooth, prof. grade, 5/8" arbor |
| Blade diameter | 10" |
| Blade tilt | Left |
| Blade kerf | 0.118" (3mm) |
| Blade plate thickness | 0.078" (2mm) |
| Max. depth of cut, blade at 0º | 3-1/8" |
| Max. depth of cut, blade at 45º | 2-1/4" |
| Dado diameter | 8" (requires dado brake cartridge & insert) |
| Dado max. width | 29/32” |
| Arbor diameter at blade | 5/8" |
| Main bearing size | 62mm OD x 30mm ID |
| Second bearing size | 52mm OD x 25mm ID |
| Table in front of blade (max. elevation) | 10-1/4" |
| Table behind blade (max. elevation) | 7-1/2" |
| Arbor Runout | 0.001" Maximum allowable runout |
| Table flatness measured diagonally | 0.010" Maximum gap |
| Blade alignment with miter slot | 0.010" Maximum displacement |
| Deviation of miter gauge indexing stops from actual | ±0.25º |
| Alignment between splitter and blade | 0.010" Maximum difference |
| Miter slots T-shaped | 3/4" at top, 1" at bottom, 3/8" deep |
| Miter slots center | 11-1/8" center-to-center |
| Miter slots info | 5-1/2" (arbor flange to center of right slot) |
| Dust collection port diameter | 4" |
| Riving knife / splitter thickness | 0.090" (2.3 mm) |
| Blade guard | (dust collection) port diameter 1-1/2" Outside, 1-1/4" Inside |
| Insert | zero clearance, phenolic core, melamine surfaces |
| Hand wheels | 7" diameter, cast iron w/ chrome handle |
| Belts | 2 V-ribbed belts - arbor b. static dissipative |
