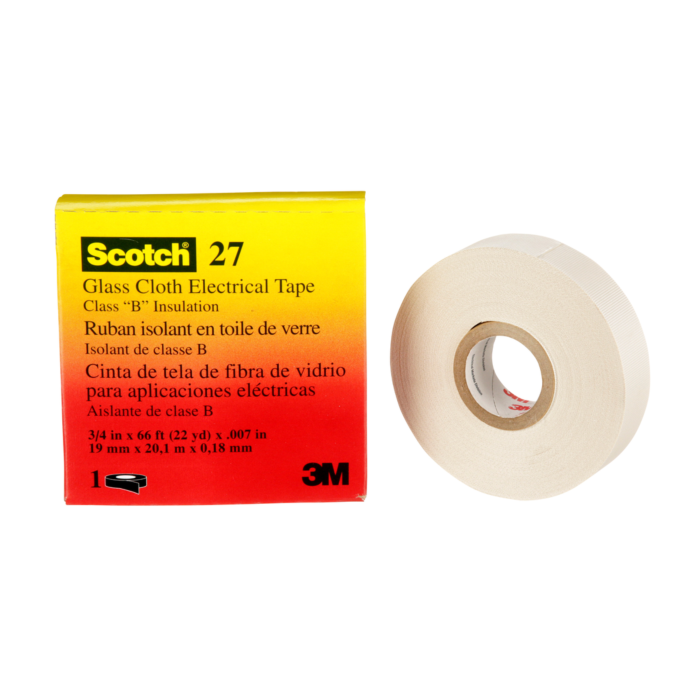

The3M Glass Cloth Electrical Tape 27 isa greatoption when it comes toelectrical jobs that require heatinsulation, edge tearresistance and adaptable tape applications. Thecomposite in its materialis suitable for 600V rated, dry location application on motors and transformers. 3M Glass Cloth Electrical Tape27features a pressure sensitive, high temperature, thermosetting,rubberadhesive that offersexceptionalbonding once adhered.This reactive compound results inanon-corrosive adhesivethatoffers solvent resistant protection; providing stability and reliability. A7-milwoven insulating glass cloth provides high mechanical strength, high temperature resistanceandheat-stable insulationforheating unitsand oven controls, motor leads and switches.This glass cloth backing holds a feature suitable for tough 600V ratings andendures extreme temperature operations (low temperatures up to 302F / 0 to150C) often presented in application environments.Resists rotting and shrinking after extended use.
- PROVIDES A STRONG BOND: At extreme temperatures ranging from low temperature to 302F (up to 150C)
- GLASS CLOTH BACKING: Optimally insulates with no shrinking or burning
- INSULATES A VARIETY OF WAYS: Use as coil cover, anchor, banding, core layer and crossover insulation
- PERFORMACE: Designed to operate in 600 volt dry applications requiring high mechanical strength and resistance to high temperatures
- RELIABLE AND RESISTANT: Resists rotting and shrinking after extended use in a variety of environments
- PRESSURE SENSITIVE ADHESIVE: Non–corrosive, solvent resistant, thermosetting rubber adhesive
Brand | 3M |
---|---|
UPC | 054007150749 |
Store Location (Lititz, PA) | Aisle 08 End Cap |
Package Length (in) | 3.40" |
Package Width (in) | 3.40" |
Package Height (in) | 0.60" |
Manufacturer Part Number | 7000005815 |
Country of Origin | United States |
Adhesive Type | Rubber |
Overall Width (Imperial) | 0.75 in |
Overall Width (Metric) | 19.05 mm |
Product Color | White |
Total Tape Thickness without Liner (Imperial) | 7.0 mil |
Total Tape Thickness without Liner (Metric) | 0.178 mm |
Application | Electrical Maintenance |
Backing (Carrier) Material | Glass Cloth |
Dielectric Strength | 3000.0 V |
Electrolytic Corrosion Factor | 0.9 |
Elongation at Break | 5.0 % |
Insulation Resistance | 4.8 x 10^4 megohms |
Maximum Operating Temperature (Celsius) | 150.0 Degree |
Maximum Operating Temperature (Fahrenheit) | 302.0 Degree |
Minimum Operating Temperature (Celsius) | 0.0 Degree |
Minimum Operating Temperature (Fahrenheit) | 32.0 Degree |
Overall Length (Imperial) | 66.0 ft |
Overall Length (Metric) | 20.1 m |
Product Markets | Electrical MRO |
Shelf Life | 1825 |
Specifications Met | CSA Certified, RoHS 2011/65/EU, UL Listed |
Units per Case | 50.0 |
Item Status | Active |
ETIM Class 7.0 | EC000128 |
ETIM Class 8.0 | EC000128 |
