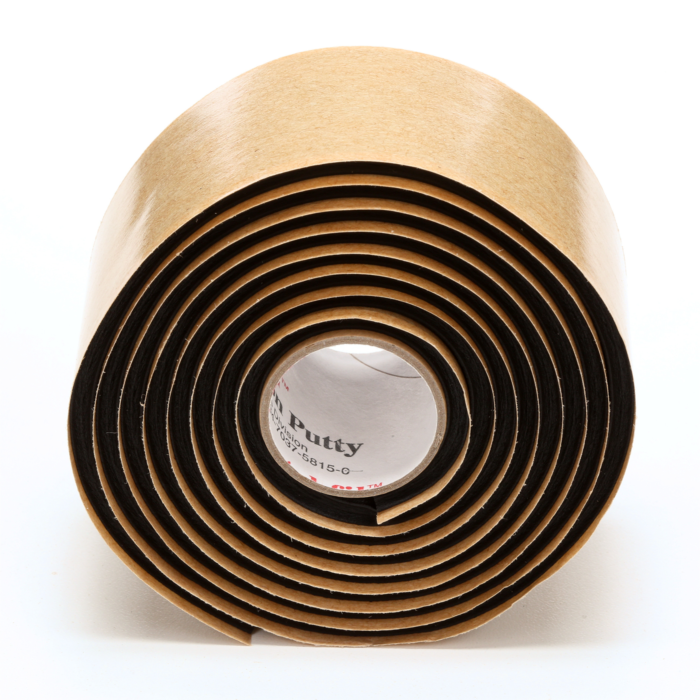

™ Scotchfil™ Electrical Insulation Putty, 1-1/2 in x 60 in, 1 roll/carton, 12 rolls/case
SKU: E2074
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$24.99
Features
Specifications
Downloads
3M™ Scotchfil™ Electrical Insulation Putty comes in a tape form that is used to insulate irregular surfaces like fittings and valves. This self fusing, electrical grade tape can be stretched or wrapped and helps to insulate connections up to 600V. It withstands a wide temperature range of 32 to 176 °F (0 to 80 °C).
- Non-corrosive mastic adhesive in a flexible tape form
- UL Listed and RoHS 2011/65/EU Compliant
- Suitable for temperatures from 32 to 176 °F (0 to 80 °C).
| Brand | 3M |
|---|---|
| UPC | 054007417507 |
| Store Location (Lititz, PA) | Aisle 08 End Cap |
| Package Length (in) | 3.60" |
| Package Width (in) | 3.40" |
| Package Height (in) | 2.00" |
| Manufacturer Part Number | 7000006089 |
| Country of Origin | United States |
| Maximum Temperature Rating (Celsius) | 80.0 |
| Maximum Temperature Rating (Celsius) UOM | Degree |
| Maximum Temperature Rating (Fahrenheit) | 176.0 |
| Maximum Temperature Rating (Fahrenheit) UOM | Degree |
| Minimum Temperature Rating (Celsius) | 0.0 |
| Minimum Temperature Rating (Celsius) UOM | Degree |
| Minimum Temperature Rating (Fahrenheit) | 32.0 |
| Minimum Temperature Rating (Fahrenheit) UOM | Degree |
| Overall Length (Imperial) | 60.0 |
| Overall Length (Imperial) UOM | in |
| Overall Length (Metric) | 1.524 |
| Overall Length (Metric) UOM | m |
| Overall Width (Imperial) | 1.5 |
| Overall Width (Imperial) UOM | in |
| Overall Width (Metric) | 38.1 |
| Overall Width (Metric) UOM | mm |
| Adhesive Material | Mastic |
| Application | Sealing |
| Backing Material | Electrical Insulation Putty |
| Backing Thickness (Metric) | 3.175 |
| Backing Thickness (Metric) UOM | mm |
| Dielectric Strength (V/mil) | 22000 |
| Elongation UOM | % |
| Elongation at Break | 10% |
| High Temperature Rating | 176°F (80°C) |
| Insulated | Yes |
| Low Temperature Rating | 32°F (0°C) |
| Manufacturing Origin | USA |
| Material | Electrical Grade Putty |
| Operating Temperature (Celsius) | 0 to 80 Degree Celsius |
| Operating Temperature (Fahrenheit) | 32 °F to 176 °F |
| Product Color | Black |
| Product Markets | Electrical Construction |
| Product Type | Mastic tape |
| RoHS EU Comments | RoHS 2011/65/EU compliant without exemption |
| Self-extinguishing | No |
| Self-sticking | Yes |
| Shelf Life | 1825 |
| Shelf Life UOM | Year |
| Solution for | Wireless Network: Infrastructure Accessories |
| Suitable for High Voltage | No |
| Tape Grade | Premium |
| Tape Length (Metric) | 1.5 |
| Tape Length (Metric) UOM | m |
| Tape Type | Sealing and Insulating Mastic |
| Tape Width (Metric) | 38.0 |
| Tape Width (Metric) UOM | mm |
| Temperature Protected Till | 80.0 |
| Temperature Protected Till UOM | Degree |
| Total Thickness | 3.175 |
| Total Thickness UOM | mm |
| UV Resistant | Yes |
| Voltage Application | Low Voltage |
| Vulcanizing | No |
