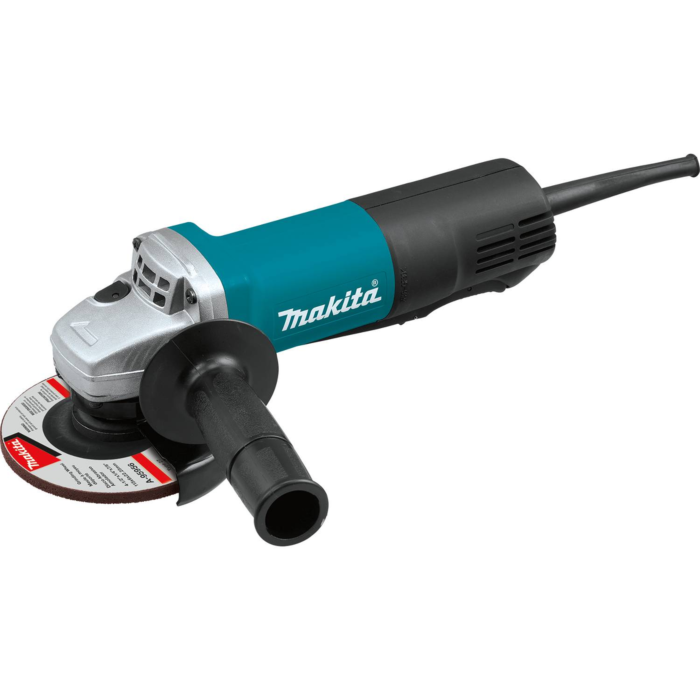

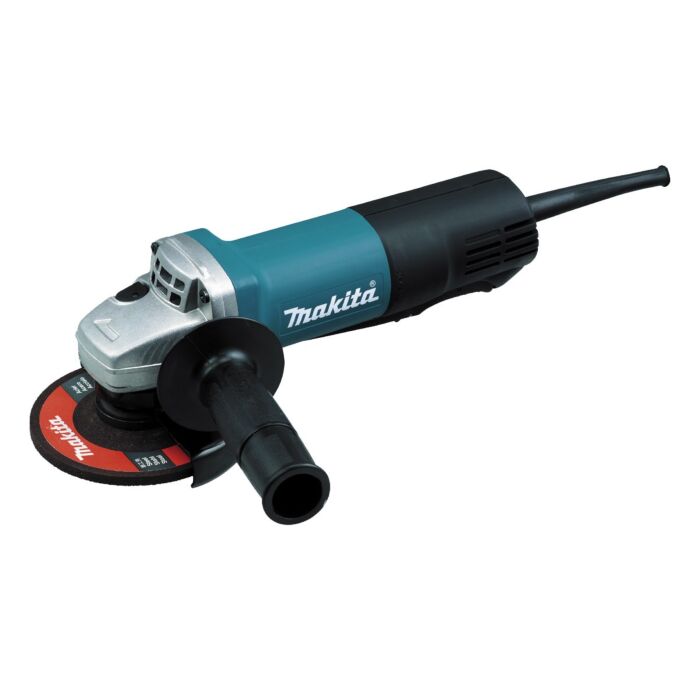

Makita’s 4-1/2” Angle Grinder combines 7.5 AMP power with comfort and motor-protection features for longer-lasting industrial performance. The 9557PB Angle Grinder delivers 11,000 RPM. The Angle Grinder also features a range of durability features including labyrinth construction which seals and protects the motor and bearings from dust and debris for longer tool life, as well as a protective zig-zig varnish engineered to seal the armature from dust and debris. Ease-of-use features include an extra large paddle switch for comfortable operation, and a lock-on/off feature for continuous operation. The 9557PB weighs only 4.5 lbs., with a side handle that can be easily installed on either side of the tool. This grinder also has an AC/DC switch for use with alternative-power sources. The 9557PB is a versatile and powerful grinder engineered for cutting, grinding and polishing applications.
- Lock Nut Wrench (782422-3)
- Lock Nut (193465-4)
- 4-1/2" Wheel Guard (125273-5)
- POWER - 7.5 AMP motor delivers 11,000 RPM
- Thicker coil wires are wound more closely to reduce heat and energy loss
- DURABILITY - Labyrinth construction, zig-zag varnish and thicker coil wires for longer tool life
- All-ball bearing design and metal gear housing for durability
- AC/DC paddle switch for use with alternative power sources
- INCLUDES - Grinding wheel, wheel guard, side handle, inner flange, lock-nut, and wrench
- Labyrinth construction seals and protects the drive gear and bearings from contamination
- Compact design with small 2-1/2" diameter barrel and weighs only 4.5 lbs. for added comfort
- Protective zig-zig varnish seals the armature from dust and debris for longer tool life
- CONVENIENCE - AC/DC paddle switch for use with alternative power sources
- AC/DC switch for use with alternative power source
- Powerful 7.5 AMP motor delivers 11,000 RPM for high output power
- 4-1/2" Grinding Wheel (A-95956)
- Inner Flange (224399-1)
- Side Handle (153489-2)
- Extra large paddle switch for comfortable operation
- Lock-on/off feature for continuous operation
- Push button spindle lock for operator convenience
- Labyrinth construction seals and protects the drive gear and bearings from contamination for longer tool life
- COMFORT - Large paddle switch for easy operation; less weight (4.5 lbs.)
- WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: lead from lead-based paints, crystalline silica from bricks and cement and other masonry products, and arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. For more information, visit www.P65warnings.ca.gov.
| Brand | Makita |
|---|---|
| UPC | 088381063531 |
| Store Location (Lititz, PA) | Aisle 25, Section N6 |
| Package Length (in) | 4.40" |
| Package Width (in) | 5.40" |
| Package Height (in) | 13.60" |
| Manufacturer Part Number | 9557PB |
| Country of Origin | Thailand |
| Variable speed dial | No |
| Power Type | Corded |
| Spindle Type | 5/8" - 11 UNC |
| UPC Code | 088381-063531 |
| Lock-Off Switch | Yes |
| Net Weight | 4.5 lbs. |
| Overall Length | 10-3/4" |
| Bind-Up Control | No |
| Wheel Diameter | 4-1/2" |
| Lock-On Switch | Yes |
| Switch Type | Body grip/paddle |
| AMPS | 7.5 |
| No Load Speed | 11,000 RPM |
| Shipping Weight | 6.84 lbs. |
