Makita’s 4-1/2” Cut-Off/Angle Grinder combines 7.5 AMP power with comfort and motor-protection features for longer-lasting industrial performance. The 9557PB Angle Grinder delivers 11,000 RPM. The Cut-Off/Angle Grinder also features a range of durability features including labyrinth construction which seals and protects the motor and bearings from dust and debris for longer tool life, as well as a protective zig-zig varnish engineered to seal the armature from dust and debris. Ease-of-use features include an extra large paddle switch for comfortable operation, and a lock-on/off feature for continuous operation. The 9557PB weighs only 4.5 lbs., with a side handle that can be easily installed on either side of the tool. This grinder also has an AC/DC switch for use with alternative-power sources. The 9557PB is a versatile and powerful grinder engineered for cutting, grinding and polishing applications. The 9557PBX1 is a kit that includes the Angle Grinder, 5 4-1/2” grinding wheels, metal tool case, cut-off and grinding wheel guards, as well as a Makita Diamond Blade with turbo rim engineering for constant contact with material for a smoother cut and finish.

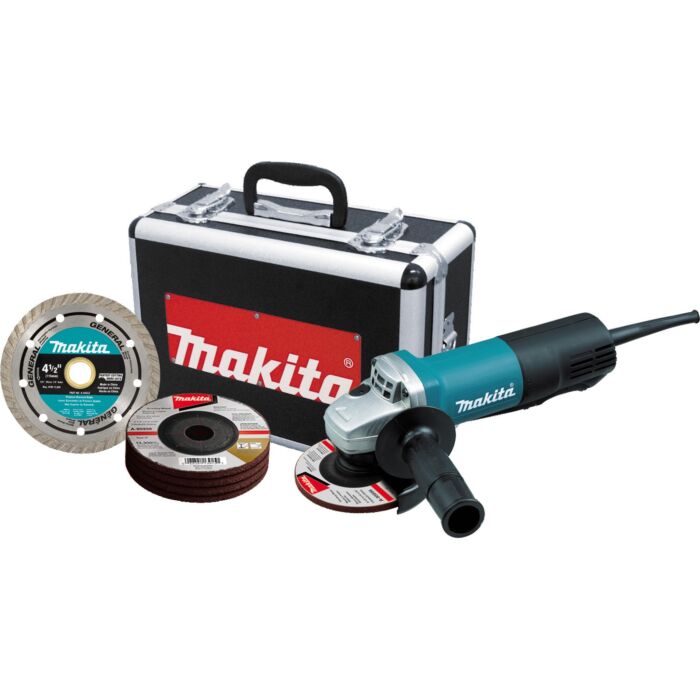

Includes: Diamond blade, grinding wheels, grinding guard, cut-off guard, side handle, inner flange, lock-nut, wrench and aluminum case
- Powerful 7.5 AMP motor delivers 11,000 RPM for high output power
- All-ball bearing design and metal gear housing for durability
- Rotatable gear housing can be positioned every 90°
- Labyrinth construction seals and protects motor and bearings from contamination
- Thicker coil wires are wound more closely to reduce heat and energy loss
- AC/DC slide switch for use with alternative power source
- Extra large paddle switch for comfortable operation
- Large paddle switch for easy operation; less weight (4.5 lbs.)
- Protective zig-zig varnish seals the armature from dust and debris for longer tool life
- Lock-on/off feature for continuous operation
- Small diameter barrel grip (only 2-1/2") for added comfort
| Brand | Makita |
|---|---|
| UPC | 088381085847 |
| Store Location (Lititz, PA) | Aisle 25, Section M4 |
| Package Length (in) | 5.80" |
| Package Width (in) | 11.00" |
| Package Height (in) | 15.40" |
| Manufacturer Part Number | 9557PBX1 |
| Country of Origin | China |
| Bind-Up Control | No |
| Wire Cup Brush | 3-1/2" |
| Variable speed dial | No |
| UPC Code | 088381-085847 |
| Switch Type | Body grip/paddle |
| Wheel Diameter | 4-1/2" |
| Power Type | Corded |
| No Load Speed | 11,000 RPM |
| Spindle Type | 5/8" - 11 UNC |
| Overall Length | 10-3/4" |
| AMPS | 7.5 |
| Lock-Off Switch | Yes |
| Shipping Weight | 13.15 lbs. |
| Lock-On Switch | Yes |
| Net Weight | 4.5 lbs. |
| Warning | WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: lead from lead-based paints, crystalline silica from bricks and cement and other masonry products, and arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. For more information, visit www.P65warnings.ca.gov. |
