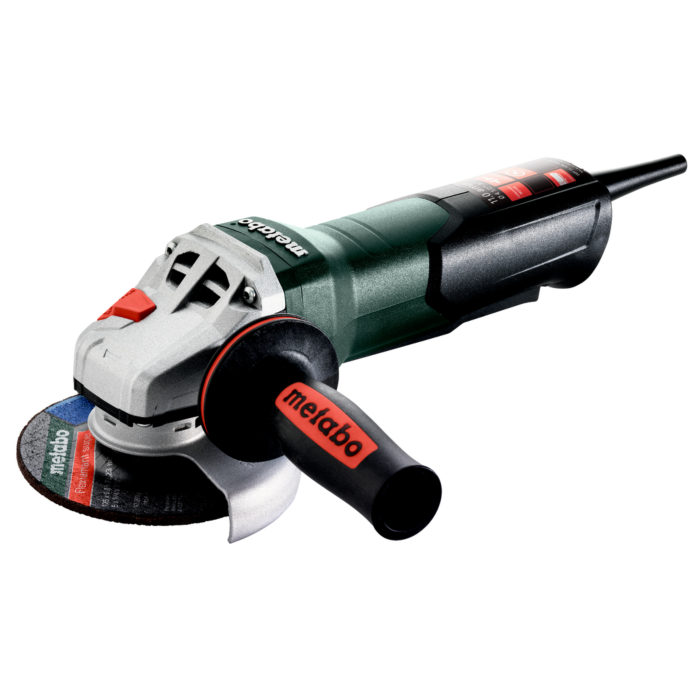

This compact angle grinder is engineered for perfect ergonomics and low fatigue, featuring the smallest handle circumference in its class. Powering it is the Metabo LongLife Motor, which includes a patented dust guard, offering up to 20% more high overload capacity and 50% more torque for a longer service life and exceptional drive. Disc changes are quick and tool-free thanks to the Metabo M-Quick System, and the guard is both tool-free adjustable and twist-proof. Safety is ensured by a non-slip, ergonomically integrated paddle switch with a dead-man function, and the Metabo S-automatic Torque Limiting Clutch minimizes kick-back for maximum user protection. For versatility, the gear housing can be mounted in 90° steps for left-handed operation or cutting applications. The motor is further protected by auto-stop carbon brushes, and the unit is suitable for 120 volt direct current (DC) operation.
| Brand | Metabo |
|---|---|
| UPC | 061792176953 |
| Store Location (Lititz, PA) | Aisle 27, Section N4 |
| Package Length (in) | 15.20" |
| Package Width (in) | 4.80" |
| Package Height (in) | 4.80" |
| Manufacturer Part Number | 603624420 |
| Amps | 11 AMPS |
| Disc Diameter | 4.5" / 5" |
| Rated Input Power | 1100 W |
| Output Power | 720 W |
| No-Load Speed | 11000 RPM |
| Speed at Rated Load | 7500 RPM |
| Torque | 28 in-lbs |
| Spindle Thread | 5/8" - 11 UNC |
| Grip Circumference | 7.688" |
| Weight (without power cable) | 5.1 lbs |
| Cable Length | 13 ft |
| Surface Grinding | 5.8 m/s² |
| Uncertainty of Measurement | K1.5 m/s² |
| Grinding with Sandpaper | 2.6 m/s² |
| Sound Pressure Level | 94 dB(A) |
| Sound Power Level (LwA) | 105 dB(A) |
