Timken

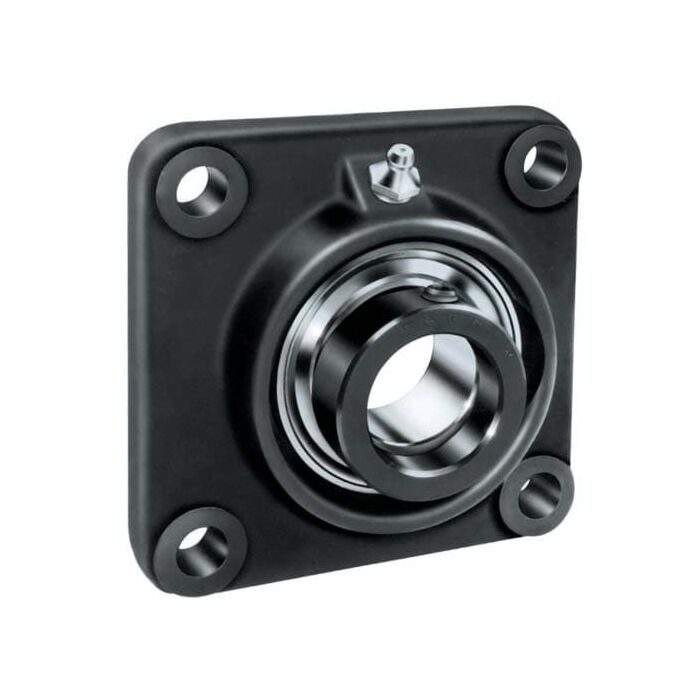

1-1/4 in 3-5/8 in Cast Iron Normal Duty Flange Mount Ball Bearing Unit
SKU: RCJ114
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$228.73
Features
Specifications
Flange Mount Ball Bearing Unit, Normal Duty, Series: Industrial Series, 1-1/4 in Bore Dia, 3-5/8 in Bolt Center-to-Center Length, 4-Bolt Flange Mounting, 4-5/8 in Overall Length, 2.106 in Overall Depth, 4-5/8 in Overall Height, Eccentric Locking Collar, Cast Iron Bearing, 28500 lb Dynamic, 3400 lb Static, 3930 rpm Maximum, -30 to 275 deg F, Uncoated
- Timken cartridges are used in applications where a minimum amount of machining is to be done
- Each unit comes assembled and ready for mounting, with bolts through the flange
- These are wide-inner-ring ball bearings, self-aligning B-types, which compensate for shaft misalignment
- The RCJ flange cartridge is equipped with G-KRRB (R-seal) wide-inner-ring ball bearings
- The units are factory pre-lubricated
- The units are supplied with self-locking collars
| Brand | Timken |
|---|---|
| UPC | 087796058514 |
| Store Location (Lititz, PA) | Aisle 09, Section W5 |
| Package Length (in) | 5.00" |
| Package Width (in) | 3.80" |
| Package Height (in) | 5.20" |
| Manufacturer Part Number | RCJ114 |
| Type | Normal Duty |
| Series | Industrial Series |
| Bore Diameter | 1-1/4 in |
| Bolt Center-to-Center Length | 3-5/8 in |
| Flange Mounting Type | 4-Bolt |
| Overall Length | 4-5/8 in |
| Overall Depth | 2.106 in |
| Overall Height | 4-5/8 in |
| Locking Device | Eccentric Locking Collar |
| Bearing Material | Cast Iron |
| Load Capacity | 28500 lb Dynamic, 3400 lb Static |
| Maximum Speed | 3930 rpm |
| Temperature Rating | -30 to 275 deg F |
| Finish | Uncoated |
