Timken

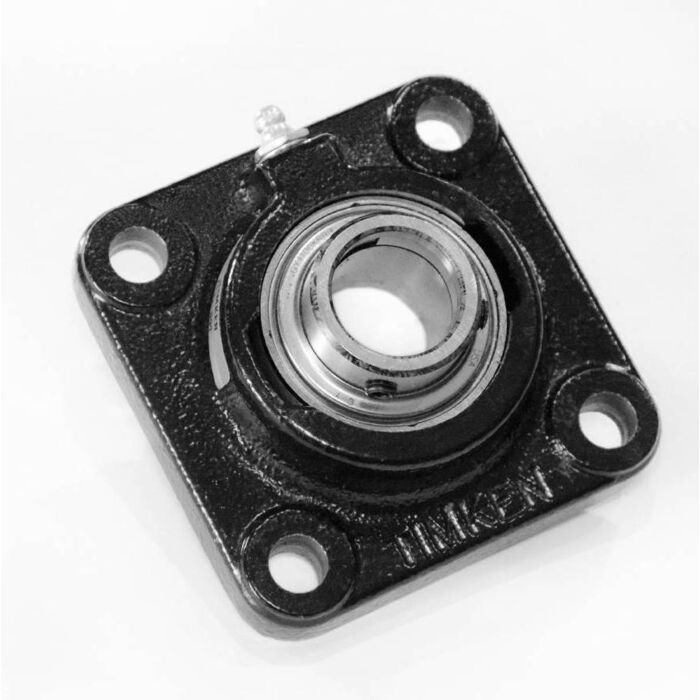

1-1/4 in 3-5/8 in Cast Iron Deep Groove Flange Mount Ball Bearing Unit
SKU: YCJ114
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$177.10
Features
Specifications
Flange Mount Ball Bearing Unit, Deep Groove, Series: YCJ, 1-1/4 in Bore Dia, 3-5/8 in Bolt Center-to-Center Length, 5.1 in Bolt Circle, 4-Bolt Flange Mounting, 4-5/8 in Overall Length, Set Screw, Cast Iron Bearing
- Incorporates Shaft Guarding Technology, which reduces replacement time, provides shaft protection and prolongs the life of the shaft
- The same basic design as the RCJ series, except specially designed set screws are used as the locking device instead of an eccentric collar
- All units are equipped with GY-KRRB wide-inner-ring set screw bearings
- Spherical outside diameter of the bearings mounted in the corresponding machined housing seats provides the initial self-alignment
- Bolt-hole spacing dimensions are interchangeable with the RCJ series and most competitive units
- Units are factory-prelubricated, but a grease fitting is provided for relubrication if required
- Safety end caps are available for selected sizes
| Brand | Timken |
|---|---|
| UPC | 087796157989 |
| Store Location (Lititz, PA) | Aisle 09, Section W5 |
| Package Length (in) | 4.80" |
| Package Width (in) | 3.60" |
| Package Height (in) | 5.20" |
| Manufacturer Part Number | YCJ114 |
| Type | Deep Groove |
| Series | YCJ |
| Bore Diameter | 1-1/4 in |
| Bolt Center-to-Center Length | 3-5/8 in |
| Bolt Circle Diameter | 5.1 in |
| Flange Mounting Type | 4-Bolt |
| Overall Length | 4-5/8 in |
| Locking Device | Set Screw |
| Bearing Material | Cast Iron |
