40 Series-1008 37 Degree Flare Female Swivel 90 Degree Long Drop Elbow (7/8-14 Thread Size & 2.8 in. OAL)
SKU: 40FS90L1008
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$24.99
Features
Specifications

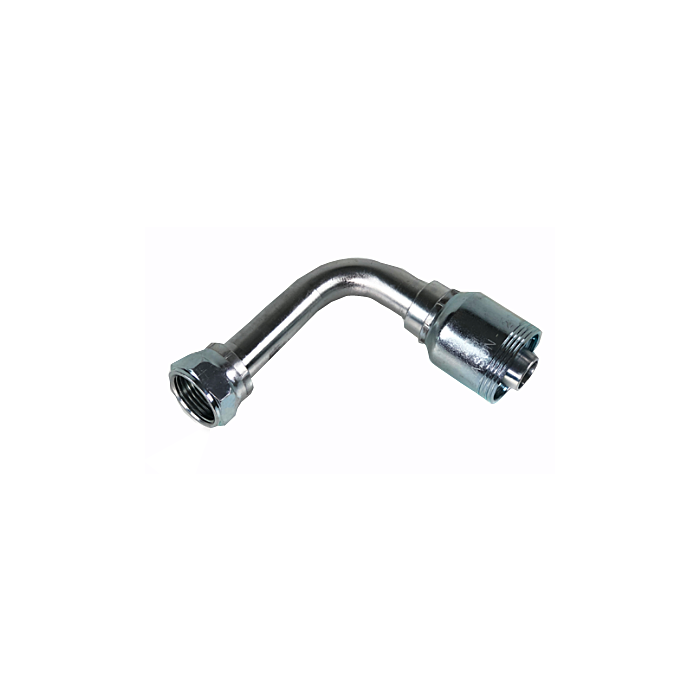

This 90 Degree Long Drop Elbow is from the 40 Series (1008) and has a 37 Degree Flare Female Swivel. The thread size is 7/8-14 and it has a 2.8 inch overall length.
| Brand | Jason |
|---|---|
| Package Length (in) | 2.80" |
| Package Width (in) | 1.00" |
| Package Height (in) | 1.00" |
| Brands | Jason |
| Descriptive Part Number | JB40FS90L-10-08 |
| Thread Size | 7/8-14 |
| Hose ID | 1/2 in |
| Hex Size (H1) | 1.00 in |
| Weight | 0.35 lb |
| Bulk Pack | 80 |
| Seat Angle | 37 º |
| Elbow Angle | 90 º |
| Connection Type | Female/Flared |
| Features | Swivel |
| Overall Length (A) | 2.80 in |
| Cut-Off Length (B) | 1.50 in |
| Drop (D) | 2.56 in |
