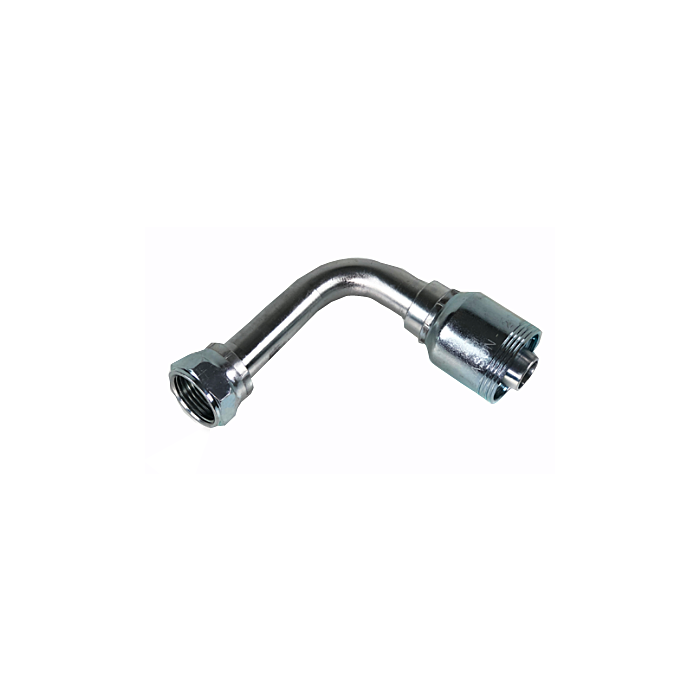

40 Series-1212 37 Degree Flare Female Swivel 90 Degree Long Drop Elbow (1-1/16-12 Thread Size & 4 in. OAL)
SKU: 40FS90L1212
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$32.99
Features
Specifications
This 90 Degree Long Drop Elbow is from the 40 Series (1212) and has a 37 Degree Flare Female Swivel. The thread size is 1-1/16-12 and it has a 4 inch overall length.
| Brand | Jason |
|---|---|
| Package Length (in) | 4.20" |
| Package Width (in) | 1.25" |
| Package Height (in) | 1.25" |
| Brands | Jason |
| Descriptive Part Number | JB40FS90L-12-12 |
| Thread Size | 1-1/16-12 |
| Hose ID | 3/4 in |
| Hex Size (H1) | 1.25 in |
| Weight | 0.62 lb |
| Bulk Pack | 50 |
| Seat Angle | 37 º |
| Elbow Angle | 90 º |
| Connection Type | Female/Flared |
| Features | Swivel |
| Overall Length (A) | 4.02 in |
| Cut-Off Length (B) | 2.40 in |
| Drop (D) | 3.74 in |
