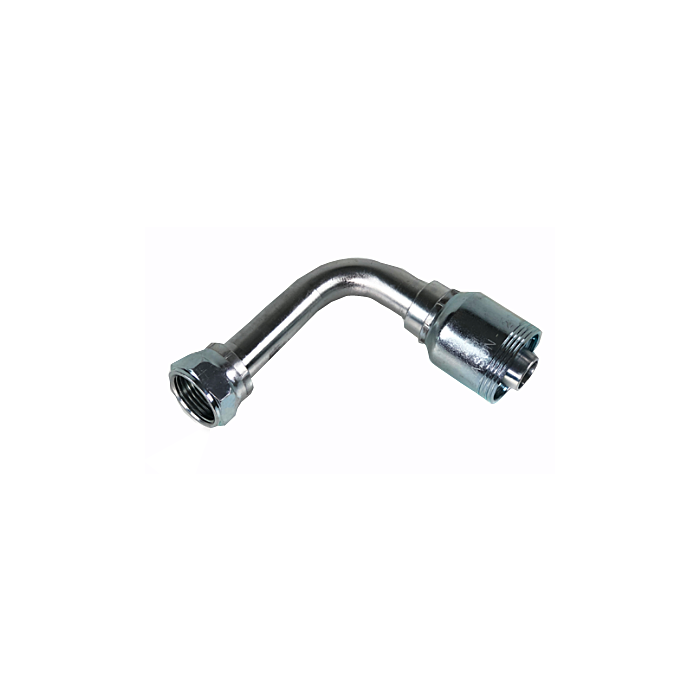

40 Series 90 Degree Long Drop Elbow (3/4-16 Thread Size)
SKU: 40FS90L0808
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$19.49
Features
Specifications
This 90 Degree Long Drop Elbow is from the 40 Series (0808) and has a 37 Degree Flare Female Swivel. The thread size is 3/4-16 and it has a 2.8 inch overall length.
| Brand | Jason |
|---|---|
| Package Length (in) | 2.80" |
| Package Width (in) | 0.87" |
| Package Height (in) | 0.87" |
| Thread Size | 3/4-16 |
| Hose ID | 1/2 in |
| Hex Size (H1) | 0.87 in |
| Weight | 0.33 lb |
| Bulk Pack | 80 |
| Seat Angle | 37 º |
| Elbow Angle | 90 º |
| Connection Type | Female/Flared |
| Features | Swivel |
| Overall Length (A) | 2.80 in |
| Cut-Off Length (B) | 1.50 in |
| Drop (D) | 2.44 in |
