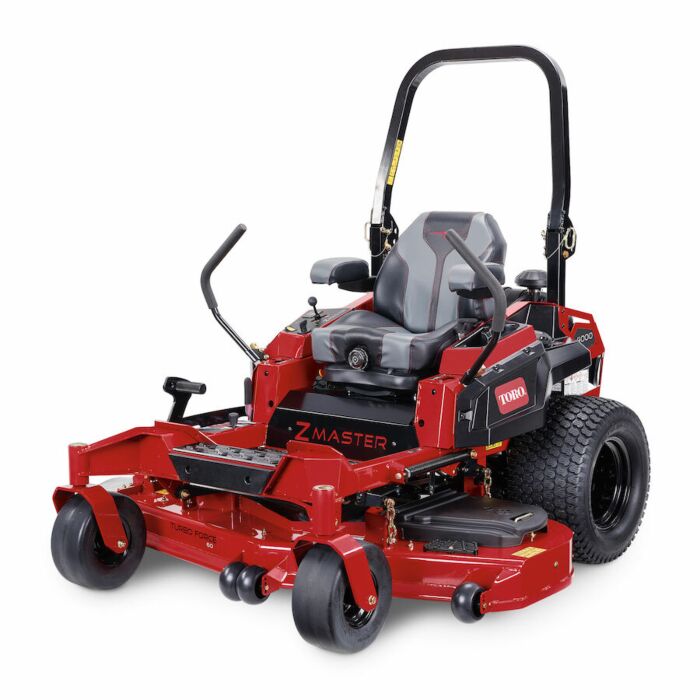

4000 Series HDX Pro XL - 60 in.
SKU: T74020
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$16,221.00
$14,599.00
Features
Specifications
Downloads
The Z-Master 4000 HDX Pro XL has been engineered to last and built to reign. Redefine durability with a powerful 35 HP Kawasaki FX1000V engine, heavy-duty commercial grade hydros, flat-free semi-pneumatic caster tires, 26" tires, and a 60" 7-Gauge High-Strength Steel TURBO FORCE® cutting deck. Add in the hour meter, USB ports, phone holder, and a cup holder, and you’ll have everything you need-- all from the comfort of the deluxe suspension seat.
- I-beam front end paired with tubular chassis and bumper
- Easy on and off with a step-through front end, deck step plate, and anti-slip floormat
- Keep your phone and drink at arm's reach
- Keep tabs on time and keep devices powered up with the hour meter and USB ports
- Horizon360® Business Management Software
| Brand | Toro |
|---|---|
| Date Added | Dec 29, 2025 |
| UPC | 021038740201 |
| Manufacturer Part Number | 74020 |
| Blade Tip Speed | 18,500 ft/min / 5,638 m/min |
| Blades | 0.204" (0.5 cm) heat-treated steel |
| CARB Compliant | Not CARB Compliant |
| Caster Tires | 15" x 6.5" - 6" (38.1 cm x 16.5 cm - 15.2 cm) Flat-Free Semi-Pneumatic |
| Clutch | Electromagnetic |
| Deck Design | 60" (152.4 cm) 7-Gauge High-Strength Steel TURBO FORCE® |
| Deck Size | 60" / 152 cm |
| Discharge Chute | Rubber |
| Drive Tires | Carlisle Multi Trac 26" x 12" - 12" (66 cm x 30.5 cm - 30.5 cm) |
| Engine | 35 hp* Kawasaki FX1000V (999 cc) with Heavy-Duty Donaldson® Canister-Style Air Cleaner |
| Engine Displacement | 999 cc |
| Engine Horsepower | 35 hp |
| Foot Operated Height of Cut | Standard |
| Forward Ground/Transport Speed | Up to 12.0 mph / 19.3 kph |
| Fuel Capacity | 10 gal / 37.8 L / 40 qt |
| Fuel Type | Gasoline |
| Height of Cut | 1.5 - 5.5" / 3.8 - 14.0 cm in 0.25 in (0.6 cm) increments |
| Hour Meter | Standard |
| Product Type | Zero Turn Mowers |
| Roll-Over Protection System (ROPS) | Folding; Standard |
| Seat | Handcrafted Deluxe Suspension Seat with Arm Rests |
| Spindle Bearings | Maintenance-free |
| Spindle Housing | 9" / 2.9 cm Diameter Aluminum |
| Start Type | Electric |
| Steering Controls | 1.4" (3.6 cm) Diameter Grips; Adjustable, Dampened |
| Transmission | ZT-5400 Integrated Pumps and Wheel Motors |
| Weight | 1,285 lbs / 582.9 kg |
