Makita

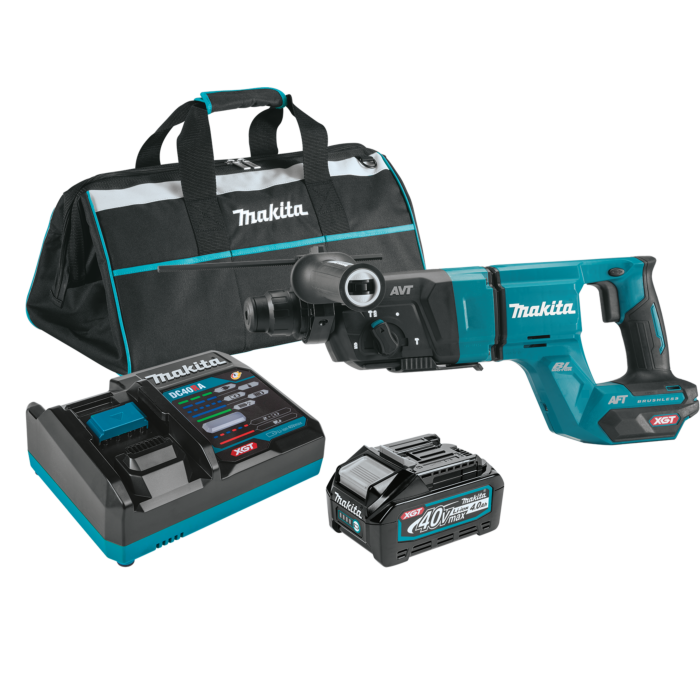

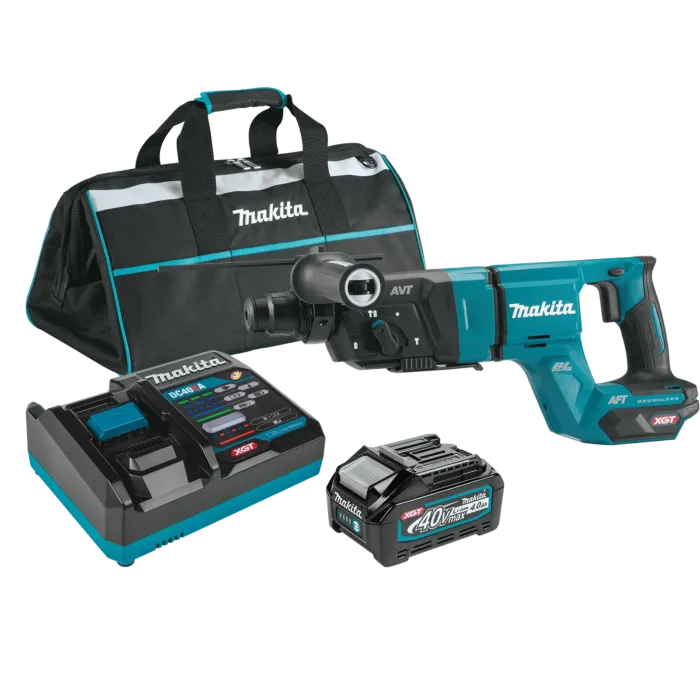

40V Max XGT 1‑1/8 in. SDS‑PLUS D-Handle Rotary Hammer (Kit)

SKU: GRH07M1
Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down
Lititz Your Store 2 in stock
Features chevron-down chevron-up
The 40V Max XGT® Brushless 1-1/8" AVT® Rotary Hammer Kit delivers corded power in a cordless design, making it the ultimate solution for heavy-load concrete applications. Its ergonomic D-handle is perfect for overhead, downward, and hard-to-reach drilling or chipping, while the Makita-built brushless motor generates a powerful 2.7 ft-lb of impact energy. Engineered for maximum safety and comfort, it features Active Feedback-Sensing Technology (AFT®) to instantly stop the motor if the bit binds, a torque-limiting clutch to protect the gears, and Anti-Vibration Technology (AVT®) with an internal counterbalance to significantly reduce user fatigue. Built to withstand harsh jobsite conditions, Extreme Protection Technology (XPT™) provides enhanced dust and water resistance. The tool also supports OSHA Table 1-compliant dust extraction through the optional DX15 on-board HEPA extractor or via Bluetooth® with the Auto-Start Wireless System (AWS®). Complete with constant speed control, an electric brake, a built-in LED light, and a tethering loop, this SDS-PLUS rotary hammer provides contractors with unparalleled performance, efficiency, and durability.

Includes:
(1) 40V max XGT® Brushless 1-1/8" SDS-PLUS AVT® Rotary Hammer (D-Handle), AWS® Capable
(1) 40V max XGT® 4.0Ah Battery
(1) 40V max XGT® Rapid Optimum Charger
(1) Hammer Bit Grease
(1) Cloth/Wiping Oil
(1) Side Handle Assembly

  • Delivers 2.7 ft-lb of impact energy
  • Active Feedback-Sensing Technology (AFT®) electronically turns off the motor if rotation of bit is suddenly forced to stop
  • Anti-Vibration Technology (AVT®) is designed to reduce vibration for increased comfort
  • Dust extraction capability with optional OSHA Table 1 compliant on-board HEPA Dust Extractor or stand-alone AWS® Extractor
  • Auto-Start Wireless System (AWS®) which utilizes Bluetooth® technology for wireless power-on/off communication between tool and dust extractor (AWS® Transmitter sold separately)
  • Electric brake allows the tool to be repositioned faster for maximum productivity
  • Torque limiting clutch engineered to prevent gear damage by automatically disengaging gears during a bind-up situation
  • Variable speed trigger enables user to match the speed to the application
  • D-handle design is ideal for overhead, downward or hard-to-reach horizontal drilling/chipping applications
  • Ergonomic soft-grip handle and large 2-finger trigger provide increased comfort on the job
  • Built-in L.E.D. light with an independent on/off illuminates the work area
  • Tethering loop/hanging hook helps secure the tool when working at heights or on a lift (sold separately)
  • 3-mode operation for "Rotation Only", "Hammering with Rotation" or "Hammering Only" for multiple applications
  • Multiple bit angles allow the bit to be set at different positions for increased comfort
  • Extreme Protection Technology (XPT™) is engineered for improved dust and water resistance for operation in harsh conditions
  • The digital communication within XGT® optimizes performance to provide up to 2X longer sustained power under heavy-load applications
  • The digital communication within XGT® actively monitors and protects against overload, over-discharge, and overheating
  • Designed with a multi-layer contact interface for more constant power delivery to take on high-current demands
  • Feature rigid rails with impact-resistant construction to secure the battery to the tool during high-demand applications
  • Dual-fan design circulates air through the battery to cool the battery and circuit board quickly for faster charging
  • Digital display indicates battery charge level (-80%, +80%, 100%)
  • Built-in chip thoroughly communicates during the charging process to control current, voltage, and temperature
  • Only use genuine Makita batteries and chargers
Specifications chevron-down chevron-up
Brand Makita
Date Added Jul 20, 2026
Store Location (Lititz, PA) Aisle 28, Section S3
Package Length (in) 13.03"
Package Width (in) 7.99"
Package Height (in) 25.08"
Manufacturer Part Number GRH07M1
Max. Capacity 1-1/8"
Optimum Range 3/16" - 3/4"
Impact Energy 3.7 J
Blows Per Minute 0 - 5,000 BPM
No Load Speed 0 - 980 rpm
Vibration Control Yes
Max. Capacity (concrete drilling w/ core bit) 2-9/16"
System 40V Max XGT®
Bind-Up Control Yes
Automatic-start Wireless System (AWS®) Capable (transmitter sold separately)
Bit Type Accepts SDS-PLUS
Overall Length 18-5/8"
Net Weight 10 lbs.
Power Type Cordless
Packaged Depth 7.99"
Packaged Height 13.03"
Packaged Width 25.08"
Shipping Weight 17.64 lb
UPC Code 088381-754729
