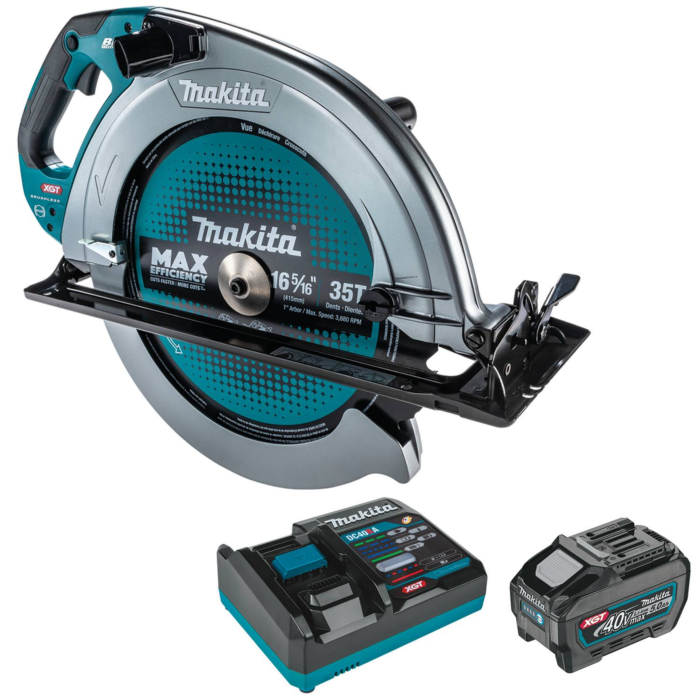

The 40V Max XGT® 16-5/16" Circular Saw is the largest cordless circular saw, offering up to 30% faster cutting, ideal for large timber and logs. It can deliver up to 75 cuts per charge in 6x12 lumber with a 5.0Ah battery, featuring a 6-1/4" maximum cut at 90° and a 0-45° bevel capacity. Designed to be compact and ergonomic, it weighs 24.3 lbs and includes an electric brake, Soft Start, and a blade stabilizer for superior performance. Furthermore, it incorporates the Auto-Start Wireless System (AWS®) for Bluetooth communication with a dust extractor and Extreme Protection Technology (XPT™) for durability in harsh conditions, making it a high-power part of the XGT® 40V Max cordless platform.
Includes:
(1) 40V Max XGT® Brushless 16-5/16" Circular Saw, AWS Capable
(1) 40V Max XGT® 5.0Ah Battery
(1) 40V Max XGT® Rapid Optimum Charger
(1) 16-5/16" 35T C.T. Circular Saw Blade
(1) Dust Extracting Attachment
(1) Saw Storage Holder
(1) Hex Wrench
(1) XGT® Battery Cover
- Cuts 6x material at 90° and 4x material at 45° in a single pass
- Up to 75 cuts in 6x12 lumber on a single charge of a 5.0Ah battery
- Compact and ergonomic die-cast aluminum design weighs only 24.3 lbs
- Blade stabilizer for stable blade rotation and superior cutting performance
- Large capacity blade cuts 6-5/16" at 90° and 4-1/4" at 45°
- Electric brake for maximum productivity
- 0-45° bevel capacity with positive stops at 15°, 30°, and 45°
- Soft start suppresses start-up reaction for improved accuracy
- Ideal for cutting large timber, pressure treated lumber and wood logs
- AWS® uses Bluetooth technology to power wireless on-off communication (transmitter sold separately)
- XGT® Batteries feature rigid rails with impact-resistant construction to secure the battery to the tool
- Dual-fan design circulates air through the battery to cool the battery & circuit board for faster charging
- Digital display indicates battery charge level (-80%, +80%, 100%)
- Built-in chip thoroughly controls current, voltage, and temperature for more efficient charging
- Compatible with Makita® 40V max XGT® Lithium-Ion Batteries
- 3-year limited warranty on tool, battery, and charger
- Only use with genuine Makita® batteries and chargers
| Brand | Makita |
|---|---|
| Date Added | Dec 10, 2025 |
| UPC | 197050007391 |
| Store Location (Lititz, PA) | Aisle 27, Section N7 |
| Package Length (in) | 14.41" |
| Package Width (in) | 27.95" |
| Package Height (in) | 25.00" |
| Manufacturer Part Number | GSH06T1 |
| Country of Origin | China |
| Shipping Weight | 50.72 lbs |
| Blade Diameter | 16-5/16" |
| Arbor | 1" |
| Max. Cutting Capacity (at 90°) | 6-1/4" |
| Max. Cutting Capacity (at 45°) | 4-3/16" |
| Length | 23-7/8" |
| Net Weight | 24.3 lbs |
| Power Type | Cordless |
