The 40V Max XGT® 20" Chain Saw delivers the power and high chain speed (5,700 FPM) of a 50cc gas rear handle chain saw, cutting up to 25% faster than its gas counterpart, with the option to utilize the XGT® High Power 8.0Ah Battery for up to 35% more power. Built for durability, it features Extreme Protection Technology (XPT™) and an IPX4M rating for use in rainy conditions, alongside an inertia-activated chain brake and Active Feedback-Sensing Technology (AFT®) for improved safety. The saw eliminates pull starts with an easily accessible on/off power button and features tactile controls, a variable trigger, and three chain speeds for improved cutting control, all monitored via an LED display panel. Convenience is built in with a rubberized soft grip, a large oil filling port with a view window for easy lubrication checks, a lateral chain tensioning system with dual studs, and captured bar nuts for easy maintenance, while a 5-minute auto power-off helps conserve battery life. This saw is a high-power tool within the XGT® system, which utilizes 40V Max lithium-ion batteries and advanced technology to allow users to transition to a cordless jobsite.

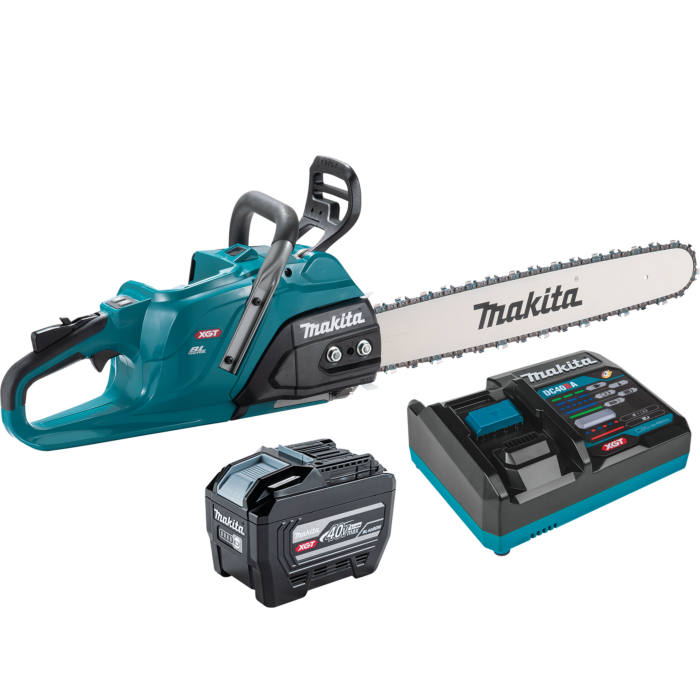

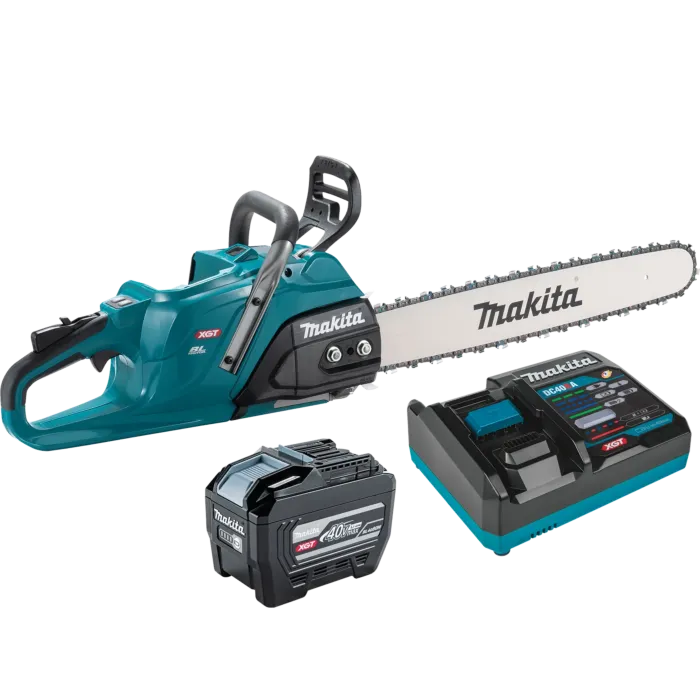

Includes:
(1) 40V max XGT® Brushless Cordless 20" Chain Saw
(1) 40V max XGT® 8.0Ah High Power Battery
(1) 40V max XGT® Rapid Optimum Charger
(1) 20" Guide Bar, .325" LP, .050", D025, 82
(1) 20" Saw Chain, .325" LP, .050", 82, Low Kickback
- High Power Battery features tabless cell technology delivering up to 35% More Power
- Tactile controls with 3-mode chain speed button for enhanced operability
- On/off power button eliminates pull starts
- Display panel with 6 LED indicators allow for instant tool status check and chain speed monitoring
- Variable trigger and 3 chain speeds (3,937/ 4,823/ 5,700 FPM) for improved speed control
- Lock-off lever improves handling and 5-minute auto power-off helps prevent accidental activation while conserving battery life
- Includes 20" sprocket nose guide bar and .325" low profile pitch, .050" gauge chain
- No gas, emissions, oil mixing, or pull starts
- High performance with low noise levels
- Reduced maintenance lowers operating costs and minimizes down time
- Captured bar nuts retained in sprocket cover for convenient setup and maintenance
- Lateral chain tensioning with dual stud for efficient chain retention
- Adjustable automatic chain lubrication with large oil reservoir
- Large oil filling port with view window allows operator to easily add and check bar oil level
- Inertia-activated chain brake stops rotation of the chain
- Rubberized soft grip top handle is engineered for the user to more easily apply even cutting pressure
- XGT® actively monitors and protects against overload, over-discharge, and overheating
- Designed with a multi-layer contact interface for more constant power delivery to take on high-current demands
- Impact-resistant construction to secure the battery to the tool during high-demand applications
- Dual-fan design circulates air through the battery to cool the battery and circuit board quickly for faster charging
- Digital display indicates battery charge level (-80%, +80%, 100%)
- Charger’s built-in chip thoroughly communicates during the charging process to control current, voltage, and temperature
- Compatible with Makita® 40V Max XGT® Lithium-Ion Batteries
- 3-year limited warranty on tool, battery, and charger
- IPX4M-rated for use in rainy conditions
| Brand | Makita |
|---|---|
| Date Added | Apr 16, 2026 |
| UPC | 197050012814 |
| Package Length (in) | 13.19" |
| Package Width (in) | 24.77" |
| Package Height (in) | 10.56" |
| Manufacturer Part Number | GCU08E |
| Power Equivalency | 50cc |
| Product Type (CS, PS) | Rear Handle, Captured Bar Nut |
| Guide Bar Length | 20" |
| Pitch | .325" LP |
| Gauge | .050" |
| Chain Speed | 5,700 FPM |
| Handle Type | Rear Handle |
| Shipping Weight | 18.68 lb |
| UPC Code | 197050-012814 |
