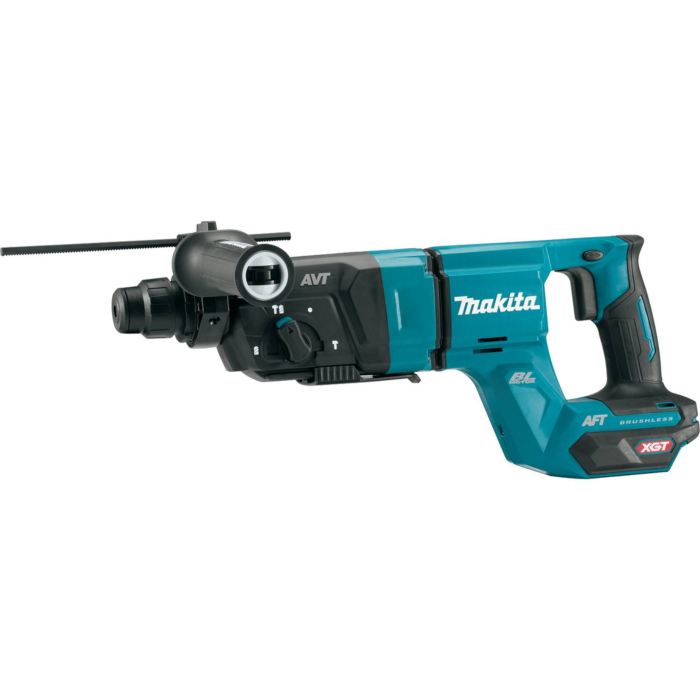

The 40V Max XGT® Brushless 1-1/8" Rotary Hammer is a high-performance cordless solution for heavy-duty concrete drilling and chipping. Delivering 2.7 ft-lb of impact energy, its Makita-built brushless motor features constant speed control to maintain power under load. The ergonomic D-handle design is ideal for overhead or hard-to-reach areas, while advanced AVT® and AFT® technologies reduce vibration and enhance user safety. Built for the job site, it includes XPT™ dust and water resistance and is AWS® compatible for wireless dust extraction.
Includes:
(1) Rotary Hammer Bare Tool
(1) Hammer Bit Grease
(1) CLOTH F/WIPING OIL
(1) Side Handle Assembly
- Anti-Vibration Technology (AVT®) is designed to reduce vibration for increased comfort
- Dust extraction capability with optional OSHA Table 1 compliant on-board HEPA Dust Extractor or stand-alone AWS® Extractor
- Auto-Start Wireless System (AWS®) utilizes Bluetooth® technology for wireless power-on/off communication (transmitter sold separately)
- Electric brake allows the tool to be repositioned faster for maximum productivity
- Torque limiting clutch engineered to prevent gear damage by automatically disengaging gears during a bind-up situation
- Variable speed trigger enables the user to match the speed to the application
- D-handle design is ideal for overhead, downward or hard-to-reach horizontal drilling/chipping applications
- Ergonomic soft-grip handle and large 2-finger trigger provide increased comfort on the job
- Built-in L.E.D. light with an independent on/off illuminates the work area
- Tethering loop/hanging hook helps secure the tool when working at heights or on a lift (sold separately)
- 3-mode operation for "Rotation Only", "Hammering with Rotation" or "Hammering Only" for multiple applications
- Multiple bit angles allow the bit to be set at different positions for increased comfort
- Extreme Protection Technology (XPT™) is engineered for improved dust and water resistance for operation in harsh conditions
- XGT® optimizes performance to provide up to 2X longer sustained power under heavy-load applications
- XGT® actively monitors and protects against overload, over-discharge and overheating
- Designed with a multi-layer contact interface for more constant power delivery to take on high-current demands
- Impact-resistant construction to secure the battery to the tool during high-demand applications (batteries not included)
- Dual-fan design circulates air through the battery to cool the battery and circuit board quickly for faster charging (charger not included)
- Digital display indicates battery charge level (-80%, +80%, 100%)
- Built-in chip thoroughly communicates during the charging process to control current, voltage, and temperature for more efficient charging
- Compatible with Makita® 40V max XGT® Lithium-Ion Batteries
| Brand | Makita |
|---|---|
| Date Added | Jun 10, 2026 |
| Package Length (in) | 10.00" |
| Package Width (in) | 4.53" |
| Package Height (in) | 22.24" |
| Manufacturer Part Number | GRH07Z |
| Country of Origin | China |
| Power Type | Cordless |
| Max. Capacity (concrete drilling w/ core bit) | 2-9/16" |
| Bit Type | Accepts SDS-PLUS |
| Vibration Control | Yes |
| Impact Energy (Joules) | 3.7 J |
| No Load Speed (variable speed) | 0 - 980 rpm |
| UPC Code | 088381-754675 |
| Shipping Weight | 9.13 lb |
| Optimum Range (concrete drilling) | 3/16" - 3/4" |
| Bind-Up Control | Yes |
| Max. Capacity (concrete drilling) | 1-1/8" |
| Net Weight (with battery) | 10 lb |
| System | 40V max XGT® |
| Automatic-start Wireless System | Capable (transmitter sold separately) |
| Dimensions (LxWxH) | 18" x 4" x 7-1/4" |
| Blows Per Minute (variable speed) | 0 - 5,000 BPM |
| Impact Energy | 2.7 ft-lb |
| Overall Length | 18-5/8" |
