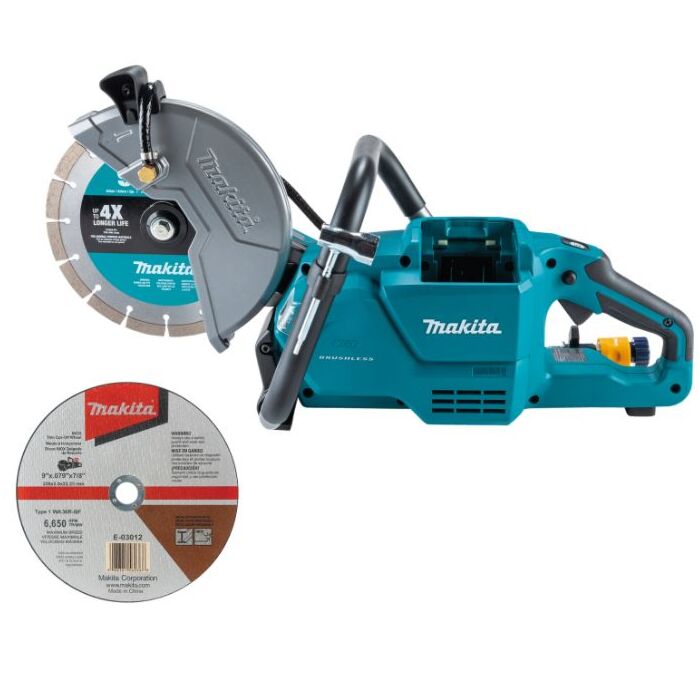

The Makita 40V Max XGT® 9" Power Cutter is a high-power cordless solution for cutting various masonry and metal materials, offering a maximum cutting depth of 3-1/2". Powered by a single 40V Max XGT® battery and a brushless motor that delivers up to 6,600 rpm, the GEC03 offers up to 45% more power and 55% less vibration for reduced user fatigue. The benefits over gas include instant starts, lower noise, zero emissions, and minimal maintenance, allowing for indoor use. It features an integrated water delivery system for OSHA Table 1 Compliance in concrete cutting, an electric brake to stop the wheel in under two seconds, and Active Feedback-Sensing Technology (AFT®) for safety. Convenience is enhanced with a tool-less blade guard, multiple-position rubberized front handle, built-in LED light, and a large spindle lock. Additionally, it is engineered with Extreme Protection Technology (XPT™) for increased resistance to dust and water in harsh job conditions.
Includes:
(1) 9" Diamond Blade, Segmented, General Purpose
(1) 9" x .079" x 7/8" INOX Thin Cut-Off Wheel, 36 Grit
(1) Water Hose Coupling Sleeve
(1) Universal Wrench, 13mm x 16mm
- Active Feedback-sensing Technology (AFT®) turns the motor off if rotation of the wheel is suddenly forced to stop
- Electric brake stops the wheel in 2 seconds or less allowing for faster re-positioning
- Adjustable blade guard facilitates cutting in low or upper wall zones
- Integrated water delivery system with water flow adjustment knob continuously feeds water for OSHA Table 1 Compliance
- Built-in L.E.D. light with an independent on/off switch illuminates the cutting area for increased visibility
- Integrated overload indicator alerts of excessive battery power draw during heavy loads
- No-load speed of 6,660 rpm
- Overload protection is designed to protect the motor from burnout in abnormally high torque situations
- Extreme Protection Technology (XPT™) is engineered for improved dust and water resistance for operation in harsh conditions
- Rubberized front handle can be held in multiple positions for increased comfort at various cutting orientations
- Belt-drive design provides smoother operation with lower vibration
- Lock-off power switch requires two actions to start power
- Large spindle lock button for easier wheel changes while wearing gloves
- Lower noise at 116 dB(A) and smoother operation for continuous use over longer periods
- Weighs only 16 lb with battery for reduced operator fatigue
- Integrated battery charge light indicator allows user to monitor battery charge level
- Multi-layer contact interface for more constant power delivery to take on high-current demands
- Digital display indicates battery charge level (-80%, +80%, 100%)
- Built-in chip thoroughly communicates to control current, voltage, and temperature for more efficient charging
- Compatible with Makita® 40V Max XGT® Lithium-Ion Batteries
- 3-year limited warranty on tool, battery, and charger
| Brand | Makita |
|---|---|
| UPC | 197050005670 |
| Manufacturer Part Number | GEC03Z |
| Type | Cordless |
| Size | 9" |
| Power | 40V |
| Style | Cut-Off Saw |
| Includes | Bare Tool |
| Product_line | XGT |
| Wheel Diameter | 9" |
| No Load Speed | 6,600 rpm |
| Max. Cutting Depth | 3-1/2" |
| Arbor Size | 7/8" |
| Electric Brake | Yes |
| Bind-Up Control | Yes |
| Lock-On Switch | No |
| Lock-Off Switch | Yes |
| Switch Type | Rear trigger switch |
| Overall Length | 21-3/4" |
| Power Type | Cordless |
| Battery | 40V Max XGT® Lithium-Ion |
| Motor Type | Brushless |
| Packaged Depth | 9.45" |
| Packaged Height | 13.7" |
| Packaged Width | 21.54" |
| Shipping Weight | 15.48 lb |
| UPC Code | 197050-005670 |
