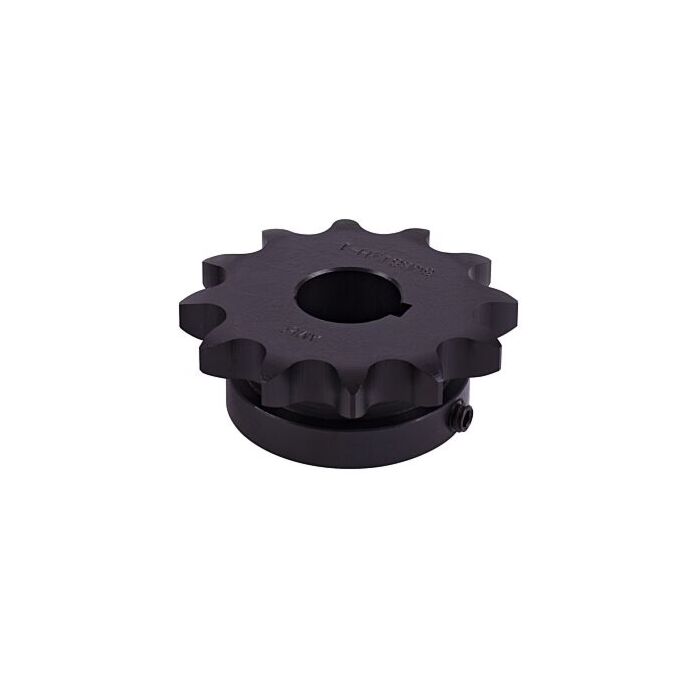

#41 Chain Fixed Bore Sprocket
1.8" #41 Chain, 10 Tooth, 3/4" Bore Sprocket
3/4 in 15 Teeth 1/2 in Chain Pitch Finished Bore Sprocket
#41 Chain, 19 Tooth, 5/8" Bore Sprocket
SKU: 41FBS-
SKU: 411012
SKU: 411512
SKU: 411910
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
As low as:
$8.29
As low as:
Features
Specifications
1.8" #41 Chain, 10 Tooth, 3/4" Bore Sprocket
- Fixed bore sprocket
- Black oxide steel
- Hardened teeth
- Keyway & 2 set screws
1.8" #41 Chain, 10 Tooth, 3/4" Bore Sprocket
- Fixed bore sprocket
- Black oxide steel
- Hardened teeth
- Keyway & 2 set screws
Sprocket, Finished Bore, 3/4 in Bore, Chain Number: 41, 15 Teeth, 1/2 in Chain, 2.4049 in Pitch, 2.652 in Outside Dia, 7/8 in Length Through Bore, Steel, 1 Chain Rows, B Hub, 3/16 x 3/32 in Keyway, 0.227 in Single Strand Tooth Thickness, 1 Hardened Teeth
#41 Chain, 19 Tooth, 5/8" Bore Sprocket
- Fixed bore sprocket
- Black oxide steel
- Hardened teeth
- Keyway & 2 set screws
| Brand | Amec |
|---|---|
| Store Location (Lititz, PA) | Aisle 09, Section T5 |
| Package Length (in) | 2.40" |
| Package Width (in) | 1.60" |
| Package Height (in) | 1.00" |
| Manufacturer Part Number | 41BS10X3/4H |
| Type | Finished Bore |
| Bore | 3/4 in |
| Chain Number | 41 |
| Number of Teeth | 10 |
| Chain Pitch | 1/2 in |
| Outside Diameter | 1.839 in |
| Length Through Bore | 7/8 in |
| Material | Steel |
| Keyway | 3/16 x 3/32 in |
| Brand | Amec |
|---|---|
| Store Location (Lititz, PA) | Aisle 09, Section T5 |
| Package Length (in) | 2.40" |
| Package Width (in) | 1.60" |
| Package Height (in) | 1.00" |
| Manufacturer Part Number | 41BS10X3/4H |
| Type | Finished Bore |
| Bore | 3/4 in |
| Chain Number | 41 |
| Number of Teeth | 10 |
| Chain Pitch | 1/2 in |
| Outside Diameter | 1.839 in |
| Length Through Bore | 7/8 in |
| Material | Steel |
| Keyway | 3/16 x 3/32 in |
| Brand | Amec |
|---|---|
| Store Location (Lititz, PA) | Aisle 09, Section T5 |
| Package Length (in) | 3.60" |
| Package Width (in) | 3.20" |
| Package Height (in) | 0.80" |
| Manufacturer Part Number | 41BS15X3/4H |
| Type | Finished Bore |
| Bore | 3/4 in |
| Chain Number | 41 |
| Number of Teeth | 15 |
| Chain Pitch | 1/2 in |
| Pitch Diameter | 2.4049 in |
| Outside Diameter | 2.652 in |
| Length Through Bore | 7/8 in |
| Material | Steel |
| Number of Chain Rows | 1 |
| Hub Configuration | B |
| Keyway | 3/16 x 3/32 in |
| Single Strand Tooth Thickness | 0.227 in |
| Hardened Teeth | 1 |
| Brand | Amec |
|---|---|
| Store Location (Lititz, PA) | Aisle 09, Section T5 |
| Package Length (in) | 3.20" |
| Package Width (in) | 3.20" |
| Package Height (in) | 1.40" |
| Manufacturer Part Number | 41BS19X5/8 |
| Type | Finished Bore |
| Bore | 5/8 in |
| Chain Number | 41 |
| Number of Teeth | 19 |
| Chain Pitch | 1/2 in |
| Outside Diameter | 3.296 in |
| Length Through Bore | 1 in |
| Material | Steel |
| Keyway | 3/16 x 3/32 in |
