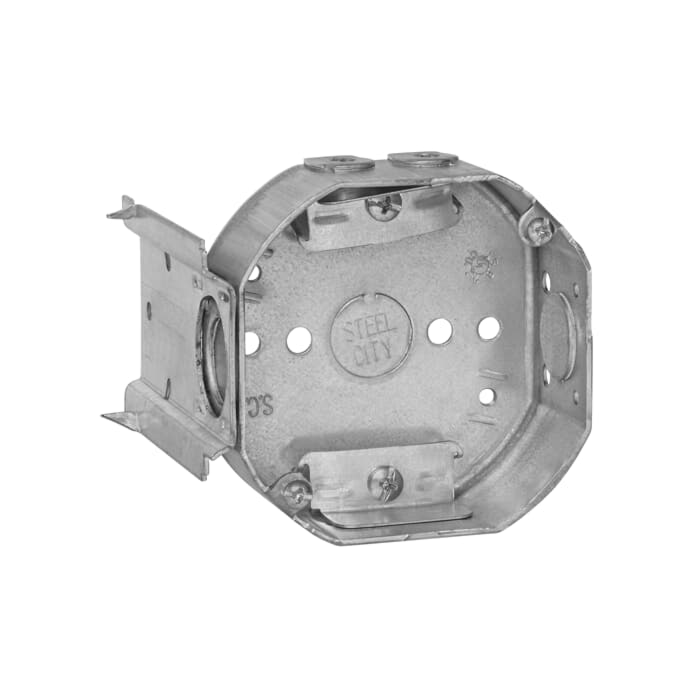

Steel Octagonal Electrical Box - 4 in.
SKU: E160
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$5.29
Features
Specifications
Octagonal electrical box with drawn construction, 4-inch diameter, 1.5-inch depth, and 15.8 cubic-inch capacity. Features one 1/2-inch conduit bottom knockout, two 1/2-inch conduit side knockouts, and four cable end knockouts. Made from 0.062-inch galvanized hot rolled ASTM G-60-U, AISI C-1008 steel. Designed for use with non-metallic sheathed cable with a C-5 type clamp. UL 514-A approved and meets Federal Specification W-J-800.
| Brand | Southwire |
|---|---|
| UPC | 837654081716 |
| Store Location (Lititz, PA) | Aisle 09, Section D6 |
| Package Length (in) | 3.20" |
| Package Width (in) | 2.60" |
| Package Height (in) | 1.40" |
| Manufacturer Part Number | 54151NL-30 |
| Application | For use with non-metallic sheathed cable |
| Brand / Label | Steel City |
| Color | Silver |
| Construction Element | Drawn |
| Effective Date | 19970327 |
| Material | Steel |
| Product Name | STEEL CITY BOXES AND ACCESS |
| Product Type | Octogonal Boxes |
| Size | 4 Inches Diameter x 1/2 Inch depth |
| Standards | UL E2969 |
| Volume | 15.8 in³ |
| Country of Origin | United States (US) |
| Selling Unit of Measure | each |
| WEEE Category | Product Not in WEEE Scope |
| IDEA Granular Category Code (IGCC) | 4449 >> Box/housing for built-in mounting in the wall/ceiling |
