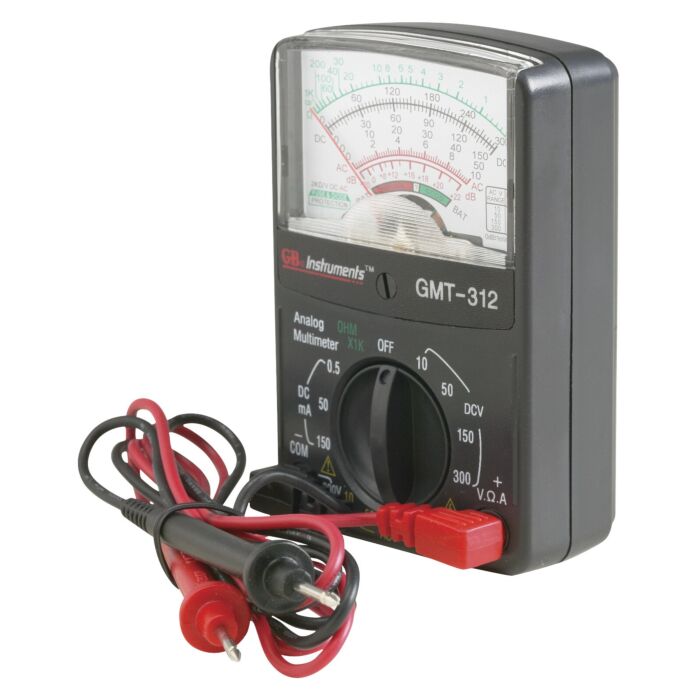

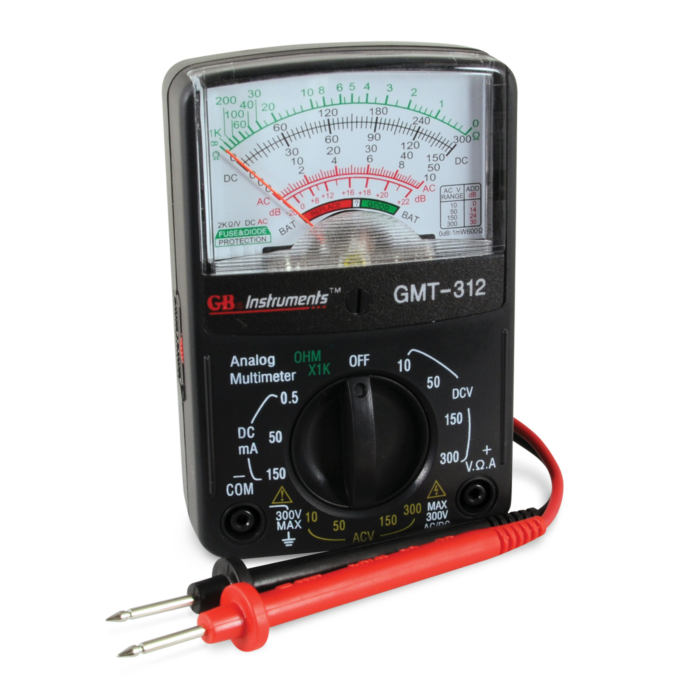

5 Function Analog Multimeter
SKU: GMT312
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$19.99
Features
Specifications
Downloads
Pocket sized analog tester. Tests voltage, DC voltage, DC current, resistance, continuity and batteries. Equipped with 1 year warranty along with a tri-lingual instruction manual. Zero ohms adjustment dial.
- Manual range selection
- Easy to read, color-coded analog displays
- Includes replaceable test leads and operating instructions
- Agency approved with fuse overload protection circuitry incorporated
- 13 position rotary dial
- Replaceable test leads
| Brand | Gardner Bender |
|---|---|
| UPC | 032076072988 |
| Store Location (Lititz, PA) | Aisle 08, Section C5 |
| Package Length (in) | 6.40" |
| Package Width (in) | 4.00" |
| Package Height (in) | 1.20" |
| Manufacturer Part Number | GMT-312 |
| GMT-312 USE 0 | GMT-312 USE 1 |
| Agency Approval | ETL, CE |
| DC Voltage | 300V |
| AC Voltage | 300V |
| DC Current | 250 mA |
| Resistance | 1 Meg |
| Total Functions | 5 |
| Total Ranges | 12 |
| Accuracy | +/- 5% |
| Battery Testing | No |
| CAT Rating | II 300V |
| Continuity | No |
| Decibels (on AC voltage ranges) | -20 to +56dB |
| Fuse | 250 mA |
| Manual Range Selection | Yes |
| Each in Package Height (in) * | 1.300 |
| Each in Package Width (in) ° | 3.400 |
| Each in Package Length/Depth (in) * | 6.600 |
| Each in Package Weight (oz) ° | 5.600 |
