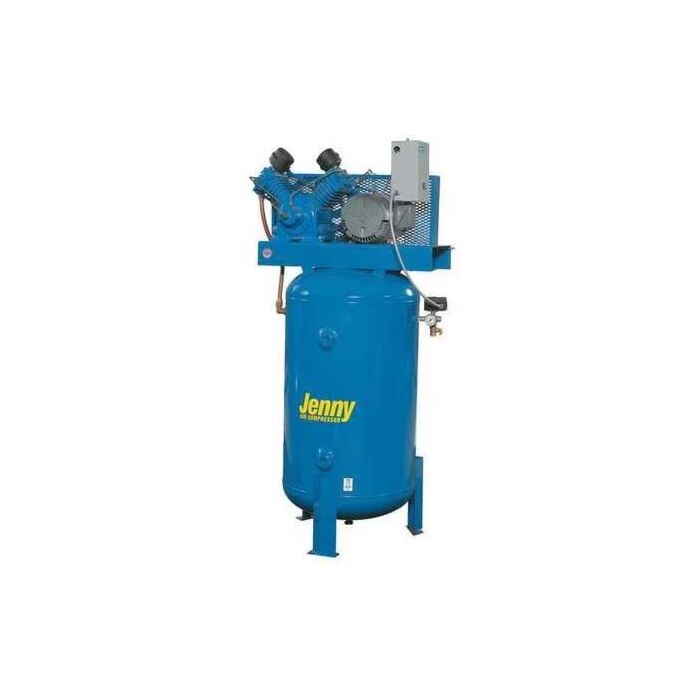

Air Compressor, 230 V, 5 hp HP Rating, 1, 2 Stage, 1/2 in Outlet Connection Size, NPT, Vertical Tank, 8 gal Tank, 175 psi, 760 rpm Speed Rating, 89 dBA, Open Dripproof Motor, Piston Pump, 37 in Overall Length, 25 in Overall Width, 73 in Overall Height, 17.5 scfm
Brand | Jenny |
---|---|
Store Location (Lititz, PA) | In Warehouse, see sales associate |
Manufacturer Part Number | W5B-80V-230/1 |
Voltage Rating | 230 V |
HP Rating | 5 hp |
Phase | 1 |
Number of Stages | 2 |
Outlet Connection Size | 1/2 in |
Outlet Connection Type | NPT |
Tank Type | Vertical |
Tank Capacity | 8 gal |
Pressure Rating | 175 psi |
Speed Rating | 760 rpm |
Sound Level | 89 dBA |
Motor Type | Open Dripproof |
Pump Type | Piston |
Overall Length | 37 in |
Overall Width | 25 in |
Overall Height | 73 in |
Flow Rate | 17.5 scfm |
