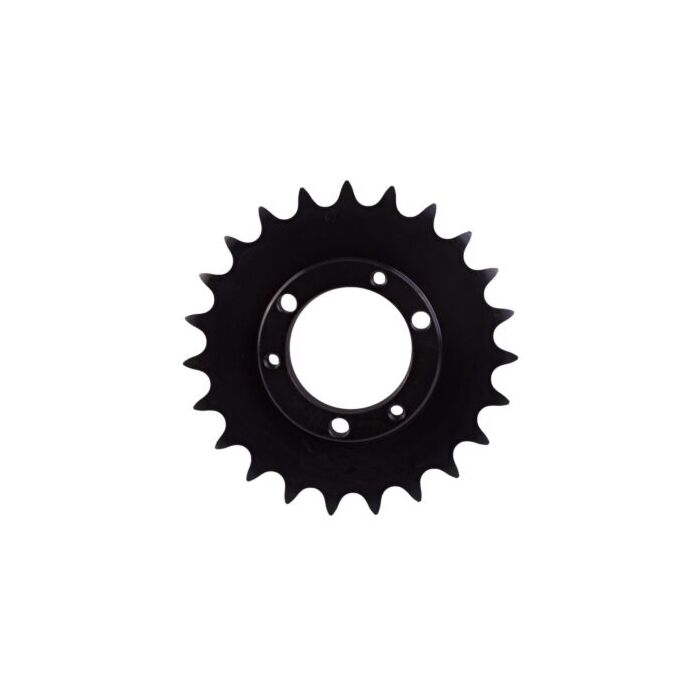

#50 Chain QD Type Sprocket

3.1" #50 Chain 14 Tooth QD Type Sprocket, JA Bushing

SKU: 50QDS-

SKU: 50JA14H

SKU: 50JA15H

SKU: 50JA16H

SKU: 50SDS25H

SKU: 50SDS30H

SKU: 50SDS23H

Select options to see availability

Lititz, PA

M-F 6:30am-8:30pm; Sat 6:30am-4:00pm

All Locations

3.1" #50 Chain 14 Tooth QD Type Sprocket, JA Bushing

3.3" #50 Chain 15 Tooth QD Type Sprocket, JA Bushing

3.5" #50 Chain 16 Tooth QD Type Sprocket, JA Bushing

5.3" #50 Chain 25 Tooth QD Type Sprocket, SDS Bushing

6.3" #50 Chain 30 Tooth QD Type Sprocket, SDS Bushing

4.9" #50 Chain 23 Tooth QD Type Sprocket, SDS Bushing

Brand	Amec
Store Location (Lititz, PA)	Aisle 09, Section T6
Package Length (in)	3.00"
Package Width (in)	0.80"
Package Height (in)	3.40"
Manufacturer Part Number	50 JA 14 H
Type	QD Type Sprocket
Chain Number	50
Number of Teeth	14
Chain Pitch	5/8 in
Pitch Diameter	2.803 in
Outside Diameter	3.11 in
Length Through Bore	0.56 in
Maximum Bore Diameter	1-1/4 in
Material	Steel
Number of Chain Rows	1
Bushing	JA
Single Strand Tooth Thickness	0.343 in
Hardened Teeth	Yes
Maximum Bore	1-1/4"

Brand	Amec
Store Location (Lititz, PA)	Aisle 09, Section T6
Package Length (in)	3.00"
Package Width (in)	0.80"
Package Height (in)	3.40"
Manufacturer Part Number	50 JA 14 H
Type	QD Type Sprocket
Chain Number	50
Number of Teeth	14
Chain Pitch	5/8 in
Pitch Diameter	2.803 in
Outside Diameter	3.11 in
Length Through Bore	0.56 in
Maximum Bore Diameter	1-1/4 in
Material	Steel
Number of Chain Rows	1
Bushing	JA
Single Strand Tooth Thickness	0.343 in
Hardened Teeth	Yes
Maximum Bore	1-1/4"

Brand	Amec
Store Location (Lititz, PA)	Aisle 09, Section T6
Package Length (in)	3.75"
Package Width (in)	4.00"
Package Height (in)	1.38"
Manufacturer Part Number	50 JA 15 H
Type	QD Type Sprocket
Chain Number	50
Number of Teeth	15
Chain Pitch	5/8 in
Pitch Diameter	3.006 in
Outside Diameter	3.32 in
Length Through Bore	0.56 in
Maximum Bore Diameter	1-1/4 in
Material	Steel
Number of Chain Rows	1
Bushing	JA
Single Strand Tooth Thickness	0.343 in
Hardened Teeth	Yes
Maximum Bore	1-1/4"

Brand	Amec
Store Location (Lititz, PA)	Aisle 09, Section T6
Package Length (in)	2.20"
Package Width (in)	2.00"
Package Height (in)	0.60"
Manufacturer Part Number	50 JA 16 H
Type	QD Type Sprocket
Chain Number	50
Number of Teeth	16
Chain Pitch	5/8 in
Pitch Diameter	3.204 in
Outside Diameter	3.52 in
Length Through Bore	0.56 in
Maximum Bore Diameter	1-1/4 in
Material	Steel
Number of Chain Rows	1
Bushing	JA
Single Strand Tooth Thickness	0.343 in
Hardened Teeth	Yes
Maximum Bore	1-1/4"

Brand	Amec
Store Location (Lititz, PA)	Aisle 09, Section T6
Package Length (in)	6.20"
Package Width (in)	1.20"
Package Height (in)	6.20"
Manufacturer Part Number	50 SDS 25 H
Type	QD Type Sprocket
Chain Number	50
Number of Teeth	25
Chain Pitch	5/8 in
Pitch Diameter	4.987 in
Outside Diameter	5.32 in
Length Through Bore	3/4 in
Maximum Bore Diameter	2 in
Material	Steel
Number of Chain Rows	1
Bushing	SDS
Single Strand Tooth Thickness	0.343 in
Hardened Teeth	Yes
Maximum Bore	2"

Brand	Amec
Store Location (Lititz, PA)	Aisle 09, Section T6
Package Length (in)	7.40"
Package Width (in)	6.80"
Package Height (in)	1.00"
Manufacturer Part Number	50 SDS 30 H
Type	QD Type Sprocket
Chain Number	50
Number of Teeth	30
Chain Pitch	5/8 in
Pitch Diameter	5.979 in
Outside Diameter	6.32 in
Length Through Bore	3/4 in
Maximum Bore Diameter	2 in
Material	Steel
Number of Chain Rows	1
Bushing	SDS
Single Strand Tooth Thickness	0.343 in
Hardened Teeth	Yes
Maximum Bore	2"

Brand	Amec
Store Location (Lititz, PA)	Aisle 09, Section T6
Package Length (in)	4.00"
Package Width (in)	3.00"
Package Height (in)	0.20"
Manufacturer Part Number	50 SDS 23 H
Type	QD Type Sprocket
Chain Number	50
Number of Teeth	23
Chain Pitch	5/8 in
Pitch Diameter	4.59 in
Outside Diameter	4.92 in
Length Through Bore	3/4 in
Maximum Bore Diameter	2 in
Material	Steel
Number of Chain Rows	1
Bushing	SDS
Single Strand Tooth Thickness	0.343 in
Hardened Teeth	Yes
Maximum Bore	2"
