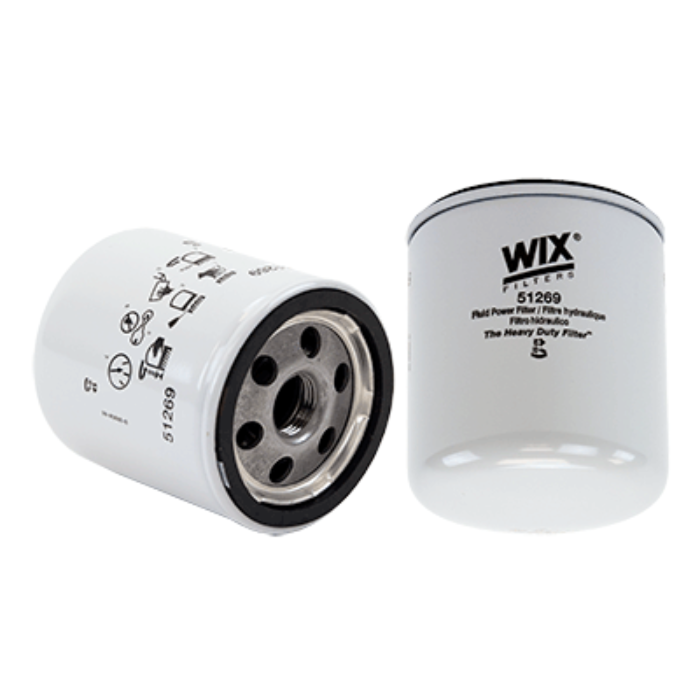

51269 Hydraulic Filter
SKU: WIX51269
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$15.99
Features
Specifications
WIX HD Hydraulic Filters are engineered for superior performance, featuring premium, application-specific media like wire-backed synthetic, enhanced cellulose, and wire mesh. Constructed with high-strength, corrosion-resistant materials and superior sealing components, these filters ensure a leak-resistant, long-lasting, and high-performing solution for all operating conditions.
| Brand | WIX Filters |
|---|---|
| Date Added | Jan 22, 2026 |
| UPC | 765809512696 |
| Package Length (in) | 3.00" |
| Package Width (in) | 3.00" |
| Package Height (in) | 4.00" |
| Style | Spin-On Hydraulic Filter |
| Service | Hydraulic |
| Type | Full Flow |
| Media | Enhanced Cellulose |
| Height | 3.53(90)* |
| Outer Diameter Top | 2.966(75)* |
| Outer Diameter Bottom | Closed: |
| Thread Size | 3/4-16 |
| By-Pass Valve Setting-PSI | 8 PSI |
| Beta Ratio | 2/20=5/17 |
| Burst Pressure | 340 PSI |
| Max Flow Rate | 7-9 GPM |
| Nominal Micron Rating | 10 |
