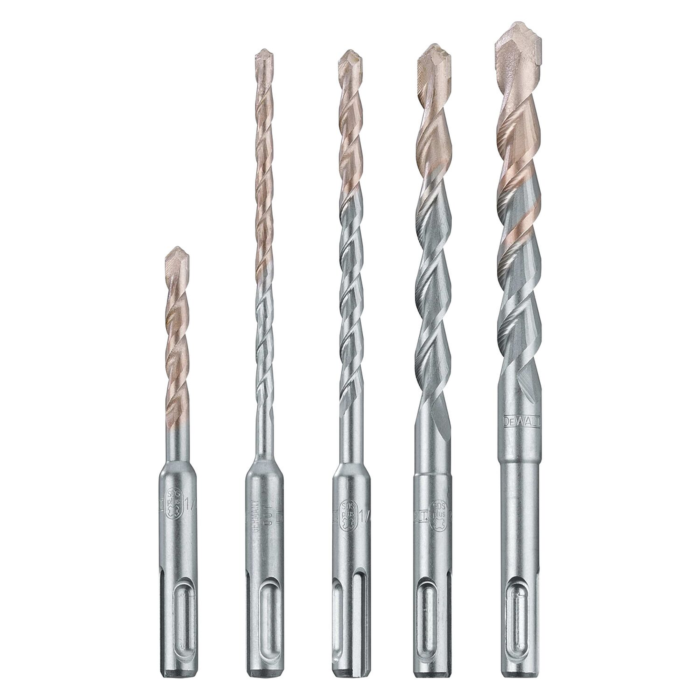

SDS Plus 2 Cutter Drill Bits have a strong tapered core to help resist flute breaks, especially when drilling deep holes. For optimal drilling speeds, the two-stage flute design features a variable helix pattern that quickly moves debris away from the contact zone. Plus, the two sharp, carbide-cutting edges deliver clean, round holes for secure anchor installation. These bits are made in Germany and are GUARANTEED TOUGH - so tough that we are offering a NO BREAK GUARANTEE. If you have our bits, we have your back.
- Strong core: Tapered core for bit strength and maximum durability, especially when drilling deep holes
- Aggressive material removal: Two stage flute design with variable helix pattern allows for efficient debris removal
- Clean, round holes: Two sharp cutting edges for true holes
- Wear mark indicator: For accurate diameter of holes
- NO BREAK GUARANTEE: If your bit fails for any reason while the wear mark is still visible, we'll replace it (excludes: DW5400, DW5401, DW5401B25)
- DEWALT carbide tip design maximizes carbide surface contact for longer bit life
| Brand | DEWALT |
|---|---|
| UPC | 028874054707 |
| Store Location (Lititz, PA) | Aisle 28, Section S1 |
| Package Length (in) | 7.38" |
| Package Width (in) | 2.81" |
| Package Height (in) | 2.81" |
| Manufacturer Part Number | DW5470 |
| Country of Origin | Germany |
| Length | 7.38 in |
| Width | 2.81 in |
| Height | 0.63 in |
| Weight | 0.45 lbs |
| Power Source | NON-ENERGY USING |
| Battery Included | No |
| Battery Test Summary | DEWALT_UN38.3 LITHIUM TEST SUMMARY_rev1,10.pdf |
| Disclaimer | For more details visit www.DEWALT.com/warranty |
| Warranty | MWC |
| Claims Needed | No |
| Bit Size | 3/16-by-6-1/2 inch, 1/4-by-4 inch, 1/4-by-6 inch, 3/8-by-6 inch, and 1/2-by-6 inch (diameter x length) |
| Bit Type | Percussion |
| Case Type | N/A (no case) |
| Chuck Type | SDS |
| Individual Vs. Set (Syndigo) | SET |
| Recommended Safety Equipment | Safety glasses |
| Self Feeding | No |
| Shank Type | SDS-Plus |
| Product Primary Material | Carbide |
