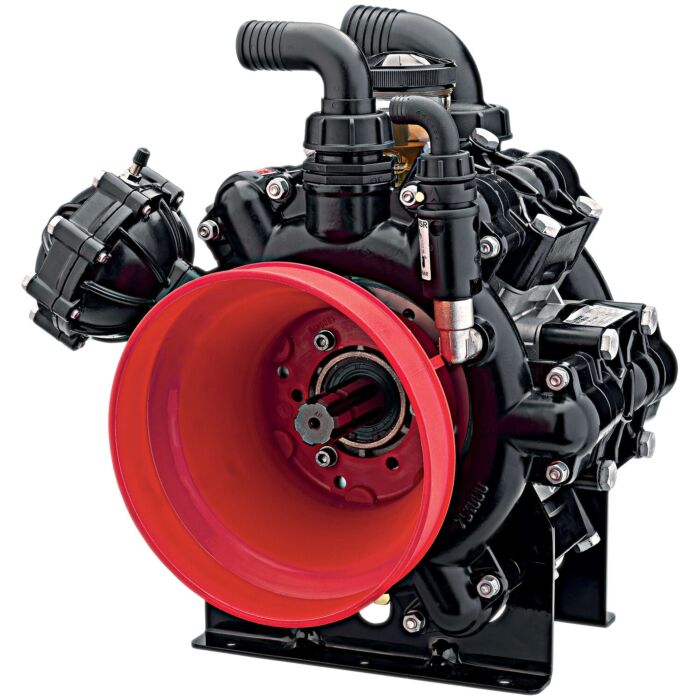

Annovi reverberi ar252-gr-gci3/4 650 rpm semi-hydraulic two diaphragm alternating volumetric pump for use in gardening or semi-professional agricultural sector, trolley-mounted in combination with electric motors or internal combustion engines for gardening and small sprayers for medium-pressure pesticide treatments in gardens, greenhouses, orchards or vineyards.
- Parts in contact with pumped liquids in plastic-coated aluminum and stainless steel
- Diaphragms in nbr, h.p.d.s., desmopan or viton
- Seals in nbr or viton
- Die-cast casing with oil-immersed mechanism and clear plastic tank for visual level checking
- Pistons with ring for a more efficient "oil cushion" system to protect the diaphragm
- New-design diaphragm cut-out system to prevent contact tearing even in heavy-duty operating conditions
- Spherical sector profile valves for lower flow resistance and improved volumetric efficiency
Brand | AR |
---|---|
Store Location (Lititz, PA) | Aisle 11, Section X4 |
Manufacturer Part Number | AR250BP-C/C |
Flow Rate | 67 gpm |
Pressure Rating | 290 psi |
Temperature Rating | 140 deg F |
