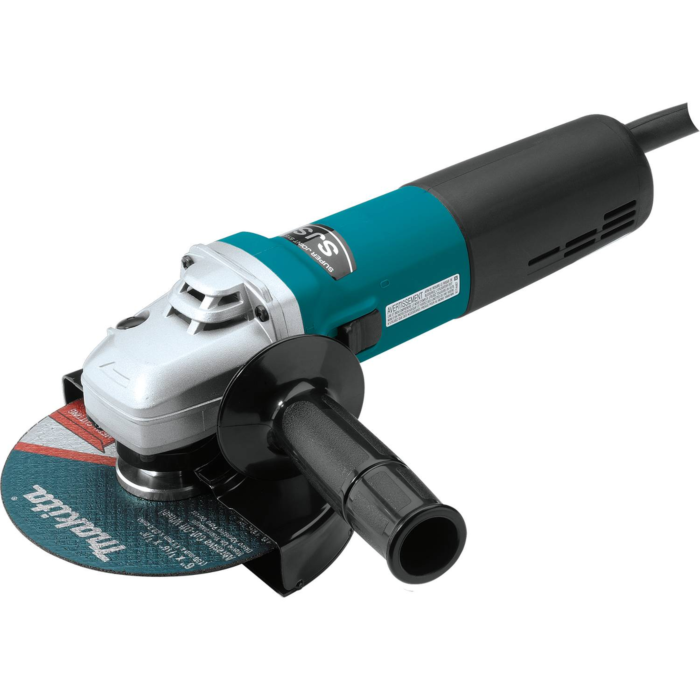

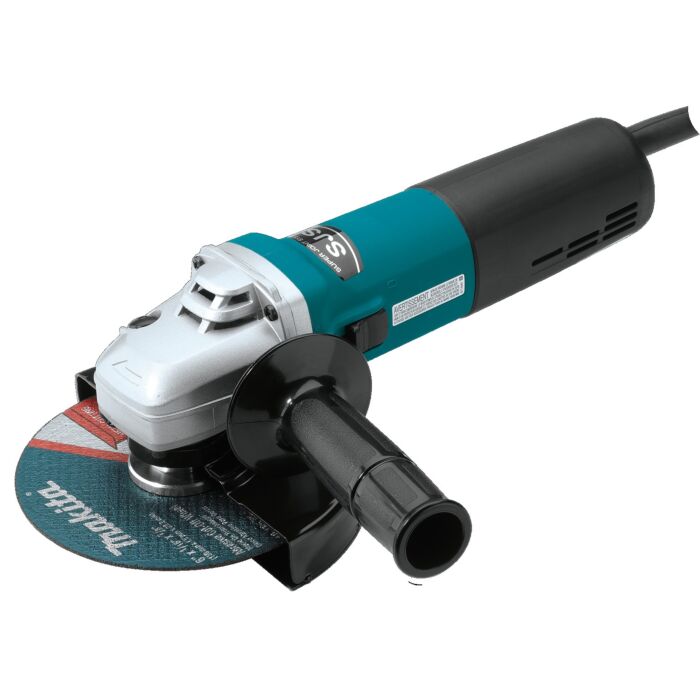

6" SJS™ High-Power Cut-Off/Angle Grinder

Makita’s 6” SJS™ Cut-Off/Angle Grinder combines 13 AMP variable speed power with comfort and motor-protection features for longer-lasting stone grinding and polishing performance. The 9566CV is engineered with Makita’s innovative SJS™ mechanical clutch system to help protect the gears for longer tool life. 13 AMP Power with SJS™ to Protect Gears The 9566CV is powered by a 13 AMP motor with soft start for smoother start-ups. The 5-stage variable speed dial (4,000 – 10,000 RPM) allows the user to match the RPM to the application. The electronic limiter stops the motor and reduces accidental motor overload and burnout, and the electronic speed control maintains consistent speed under load. Labyrinth construction protects the motor with a complex set of channels, prohibiting dust and contamination. In addition, the protective zig-zag varnish seals the motor and bearings from dust and debris by creating a barrier under rotation. The 9566CV is engineered with SJS™, an innovation from Makita that protects the gears by automatically disengaging the motor should the grinding wheel accidentally catch or bind. Comfort and Ergonomics The 9566CV is built with comfort and ergonomic features for extended use. The grinder weighs just 5.3 lbs. with a lock-on switch for easy operation. In addition, the side handle can be easily installed on either side of the tool, and the “tool-less” wheel guard adjustment provides easy clamping. Variable Speed for Stone Work The 9566CV is a versatile and powerful grinder with variable speed, allowing the user to set the RPM to the material. The variable speed control feature makes the 9566CV ideal for stone work, including polishing, grinding and cutting.

• Side Handle (153489-2)
• Powerful 13.0 AMP motor delivers more output and variable (4,000 - 10,000) RPM
• SPEED - 5-stage variable speed control dial
• Variable speed control dial enables user to match the speed to the application
• SJS™ technology is a mechanical clutch system that helps prevent motor and gear damage
• POWER - 13 AMP motor delivers 4,000 - 10,000 RPM
• PERFORMANCE - SJS™ technology is a mechanical clutch system that helps prevent motor and gear damage
• Soft start suppresses start-up reaction for smooth start-ups and longer gear life
• Labyrinth construction seals and protects the motor and bearings from dust and debris for longer tool life
• Slide switch with lock-on setting for continuous use
• Spiral bevel gears for smoother rotations and a more efficient transfer of energy
• INCLUDES - Cut-off wheel, wheel guard, side handle, inner flange, lock-nut and wrench
• 6" x 7/8" x 1/16" Super Thin Cut-off Wheel, Metal (724117-A)
• Zig-zag varnish protects the armature coil from dust and debris for longer motor life
• Constant speed control automatically applies additional power to the motor to maintain speed under load
• Lock Nut (224574-9)
• Inner Flange (224390-9)
• 6" Cut-Off Wheel Guard (122912-8)
• Lock Nut Wrench (782412-6)
• Electronic current limiter helps protect the motor from overload
• DURABILITY - Labyrinth construction, zig-zag varnish and thicker coil wires for longer tool life
• SJS™ technology is a mechanical clutch system that helps prevent motor and gear damage by allowing the drive shaft to slip if the wheel is forced to stop
• Two position adjustable side handle for operator covenience
• WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: lead from lead-based paints, crystalline silica from bricks and cement and other masonry products, and arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. For more information, visit www.P65warnings.ca.gov.
