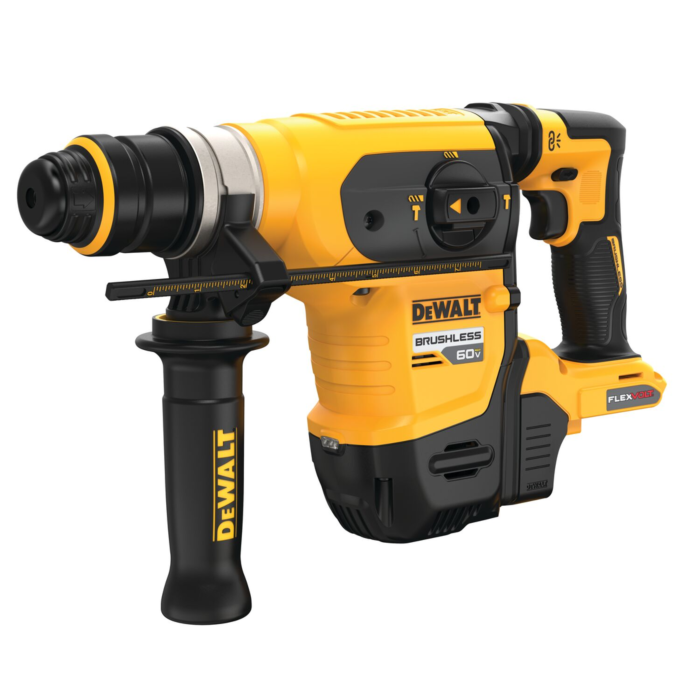

DEWALT 60V MAX* 1-1/4 in. Brushless Cordless SDS PLUS Rotary Hammer (Tool Only)

SKU: DCH416B | Location: Aisle 28, Section S1
check
PICKUP
Your store: PaulB Lititz, PA |
check
DELIVERY
Ship to your home or business

circle-exclamation 1 in stock

Due to the low inventory, we recommend contacting the store to verify availability.

Features
Tackle demanding jobs with this high-performance 60V MAX 1-1/4 in. Brushless Cordless SDS PLUS Rotary Hammer. Capable of outputting up to 4.5 J of impact energy, this rotary hammer comes equipped with a DEWALT brushless motor and German-engineered mechanism for fast drilling and chipping in even the hardest concrete. The midweight design makes it ideal for structural connections, beam and column anchorage, rod hanging, seismic and safety attachments, cable tray and strut mounting, and steel stanchion mounting. Part of the PERFORM & PROTECT product line, this hammer is integrated with the Anti-Rotation E-CLUTCH System and the SHOCKS Active Vibration Control System. E-CLUTCH shuts down the tool in bind up situations. SHOCKS reduces vibration felt by the user at the handles, compared to rotary hammers without this feature. Link the DCH416 to the DCV585 60V MAX dust extractor for remote extractor activation with WIRELESS TOOL CONTROL. This tool is Tag-Ready with a designated area for DCE041 Tag palcement. The DCE041 Tag is designed to be tracked with the TOOL CONNECT System via the DEWALT Site Manager app. This rotary hammer becomes OSHA Table 1 Compliant when used with the DWH200D shroud and DCV585 dust extractor. Battery and charger not included.
  • FAST DRILLING IN CONCRETE with 4.5 J of impact energy
  • MIDWEIGHT DESIGN: Ideal for structural connections, beam and column anchorage, rod hanging, seismic and safety attachments, cable tray and strut mounting, and steel stanchion mounting
  • BRUSHLESS MOTOR & GERMAN-ENGINEERED MECHANISM for efficient performance and runtime
  • SHOCKS ACTIVE VIBRATION CONTROL System reduces vibration felt by the user at the handles comparted to rotary hammers without this feature
  • ANTI-ROTATION E-CLUTCH System shuts down the tool in bind up situations
  • OSHA TABLE 1 COMPLIANT when paired with DWH200D shroud and DCV585 dust extractor
  • ROTATING DIAL to quickly switch between drilling, hammer drilling, and chipping applications
  • TOOL CONNECTTAG-READY: Features a designated area for DCE041 Tag placement which allows for tracking via the DEWALT Site Managerapp
Specifications
Brand DEWALT
UPC 885911716222
Store Location (Lititz, PA) Aisle 28, Section S1
Package Length (in) 18.00"
Package Width (in) 10.88"
Package Height (in) 4.81"
Manufacturer Part Number DCH416B
Country of Origin Czechia
Height 4.813 in
Length 18.000 in
Width 10.875 in
Weight 10.200 lbs
Product Diameter Us 0.509 IN
Power Source Battery
Cordless Vs. Corded Cordless
Motor Type Brushless
Voltage 60 V V
Battery Included No
Battery Type 60V MAX* Lithium Ion
Battery Test Summary DEWALT_UN38.3 LITHIUM TEST SUMMARY_rev1,10.pdf
Net Lit-Ion Y/N Yes
Charger Included No
Battery Required Yes
Number Of Batteries Required 1
Disclaimer * Maximum initial battery voltage (measured without a workload) is 60 volts. Nominal voltage is 54.
Hazmat Li-Ion (<101 WH)
Prop 65 Generic Warning Yes
Warranty 3LW1YS90D
Certifications Or Listings UL Listed
Claims Needed Yes
Bare Tool Yes
Chuck Type SDS-Max
Impact Energy 4.5
Impacts / Blows / Blasts Per Min 4200
Individual Vs. Set (Syndigo) INDIVIDUAL
