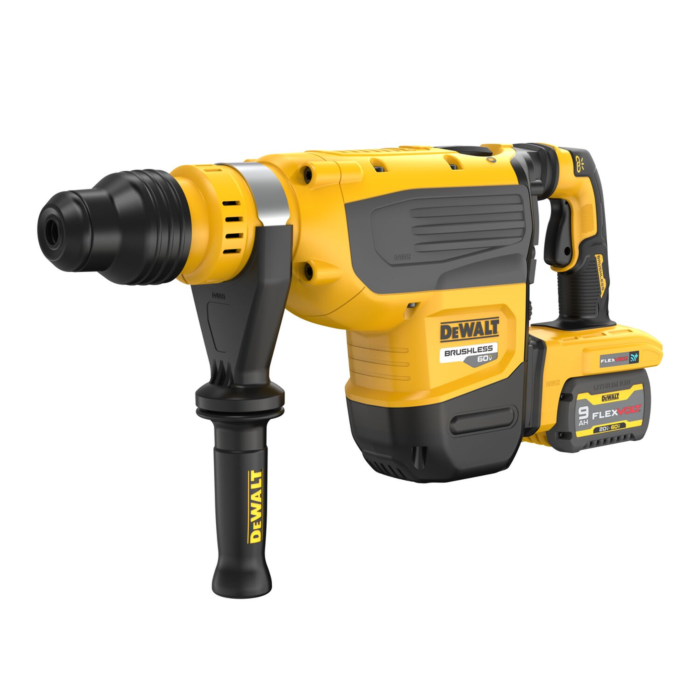

The 60V MAX Brushless 1-7/8 in. SDS MAX Combination Hammer is a midweight, high-performance hammer that is powered by a brushless motor and a durable German engineered mechanism. It delivers 13.3 Joules of impact energy for fast drilling and chipping, even in the hardest concrete. The constant speed electronics allow the tool to maintain speed under load. The midweight design makes it ideally suited for horizontal and downward drilling for #6 - #9 rebar dowel applications, dry coring up to 5 in., chipping in any lower to mid wall, ground rod driving, and bushing. This hammer is part of the PERFORM & PROTECT product line, integrated with the Anti-Rotation E-CLUTCH System and the SHOCKS Active Vibration Control System. E-CLUTCH shuts down the tool in bind up situations. SHOCKS reduces vibration felt by the user at the handles, compared to rotary hammers without this feature. The DCH735 is equipped with WIRELESS TOOL CONTROL, which allows the user to link the tool to the DCV585 60V MAX dust exctractor for remote extractor activation. This tool is Tag-Ready with a designated area for DCE041 Tag palcement. The DCE041 Tag is designed to be tracked with the TOOL CONNECT System via the DEWALT Site Manager app. This hammer becomes OSHA Table 1 Compliant when used with the either DWH050 or DWH053 shrouds and DCV585 dust extractor.
- Rapid drilling and chipping in hard concrete with 13.3 j of impact energy
- Maintain speed under heavy loads with constant speed electronics
- Efficient performance and runtime with brushless motor and german-engineered mechanism
- Pro-grade versatility: Tackle horizontal and downward drilling for #6 - #9 rebar dowel applications, dry coring up to 5 in., chipping in any lower-to-mid wall, bushing, and ground rod driving
- Reduced vibration for comfortable grip with Shocks active vibration control
- High safety and ease of use: Anti-Rotation E-CLUTCH shuts tool down in bind-up situations
- Built for security: Hammer comes Tag Ready so users and companies can attach the DEWALT Tag and track its location virtually anywhere via the DEWALT Tool Connect app
- Professional control: Adjust speed of drilling or chipping based upon the thickness and density of the material with 7-position, variable-speed dial
Brand | DEWALT |
---|---|
UPC | 885911754460 |
Store Location (Lititz, PA) | Aisle 28, Section S1 |
Package Length (in) | 26.90" |
Package Width (in) | 7.30" |
Package Height (in) | 21.50" |
Manufacturer Part Number | DCH735X2 |
Country of Origin | China |
Height | 21.496 in |
Length | 26.900 in |
Width | 7.300 in |
Weight | 40.300 lbs |
Power Source | Battery |
Cordless Vs. Corded | Cordless |
Motor Type | Brushless |
Voltage | 60 V V |
Battery Included | Yes |
Battery Type | 60V MAX* Lithium Ion |
Battery Qty | 2 |
Battery Test Summary | DEWALT_UN38.3 LITHIUM TEST SUMMARY_rev1,10.pdf |
Battery Amp Hours | 9 Ah Ah |
Watt Hours | 60 |
Net Lit-Ion Y/N | No |
Battery Required | Yes |
Number Of Batteries Required | 1 |
Disclaimer | * Maximum initial battery voltage (measured without a workload) is 20 and 60 volts. Nominal voltage is 18 and 54. |
Prop 65 Generic Warning | Yes |
Warranty | 3LW1YS90D |
Certifications Or Listings | CSA Listed |
Hazmat Code | A1 |
Chuck Type | SDS-Max |
Impact Energy | 9.81 |
Impacts / Blows / Blasts Per Min | 2705 |
Individual Vs. Set (Syndigo) | SET |
