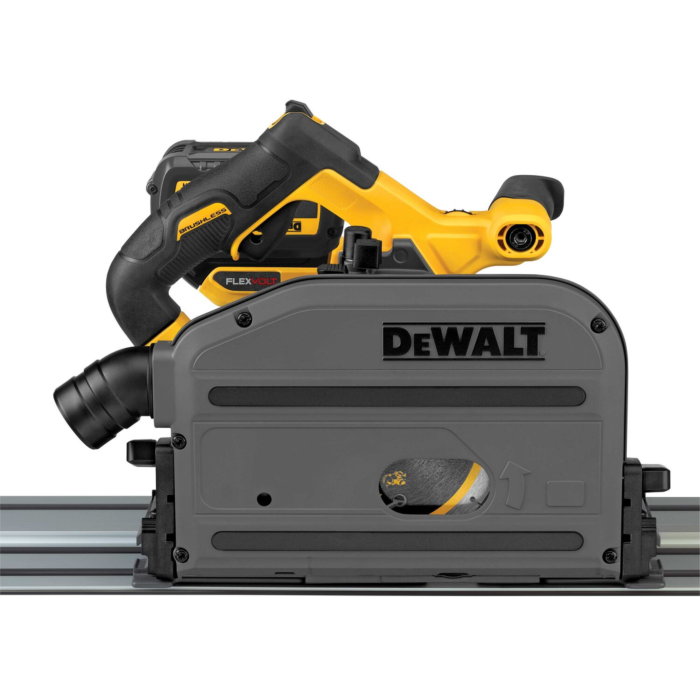

DEWALT 60V Max Track Saw Kit With 59-Inch Track, 6-1/2-Inch
SKU: DCS520ST1
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$679.99
Features
Specifications
The DCS520 60 V MAX 6-1/2 In. TrackSaw kit easily Powers through hardwoods up to 2-1/8 In. thick. Features straight plunge mechanism for optimal ergonomics. For use with TrackSaw cutting system to deliver precise, straight, splinter-free cuts.
- 60V brushless motor effortlessly powers through hardwoods up to 2 1/8 in. thick
- FLEXVOLT 20V/60V MAX battery system power of corded, freedom of cordless
- Zero clearance track saw cutting system delivers precisie, straight, splinter-free cuts
- On track cut depth: 2 1/8 in. (54 mm.) at 90 degree, 1-5/8 in. (41 mm.) at 45 degree, depth scale accurately indicates exact depth of cut accounting for track thickness
| Brand | DEWALT |
|---|---|
| UPC | 885911530408 |
| Store Location (Lititz, PA) | In Warehouse, see sales associate |
| Package Length (in) | 61.69" |
| Package Width (in) | 12.38" |
| Package Height (in) | 12.38" |
| Manufacturer Part Number | DCS520ST1 |
| Country of Origin | Czechia |
| Length | 61.687 in |
| Width | 12.375 in |
| Height | 15.062 in |
| Weight | 33.5 lbs |
| Power Source | Battery |
| Cordless Vs. Corded | Cordless |
| Motor Type | Brushless |
| Voltage | 60 V V |
| Battery Included | Yes |
| Battery Type | 60V MAX Lithium Ion |
| Battery Qty | 1 |
| Battery Weight | 2.4 |
| Battery Test Summary | DEWALT_UN38.3 LITHIUM TEST SUMMARY_rev1,10.pdf |
| Battery Amp Hours | 6 Ah Ah |
| Watt Hours | 120 |
| Net Lit-Ion Y/N | No |
| Charger Included | Yes |
| Charger Type | Wall Mountable Charging Base |
| Battery Required | Yes |
| Charge Time | 60 |
| Number Of Batteries Required | 1 |
| Rechargeable | Yes |
| Disclaimer | Maximum initial battery voltage (measured without a workload) is 20 and 60 volts. Nominal voltage is 18 and 54. |
| Warranty | 3LW1YS90D |
| Certifications Or Listings | UL Listed |
| Hazmat Code | A1 |
| Bare Tool | No |
| Bevel Capacity | 47 |
| Blade Diameter | 6 1/2 in In. |
| Blade Location | Straight |
| Individual Vs. Set (Syndigo) | INDIVIDUAL |
| Maximum Cut Depth @ 45 Deg. | 1.625 |
| Maximum Cut Depth @ 90 Deg. | 2.125 |
| Maximum Speed | 4200 RPM Rpm |
| Saw Drive Type | Sidewinder |
