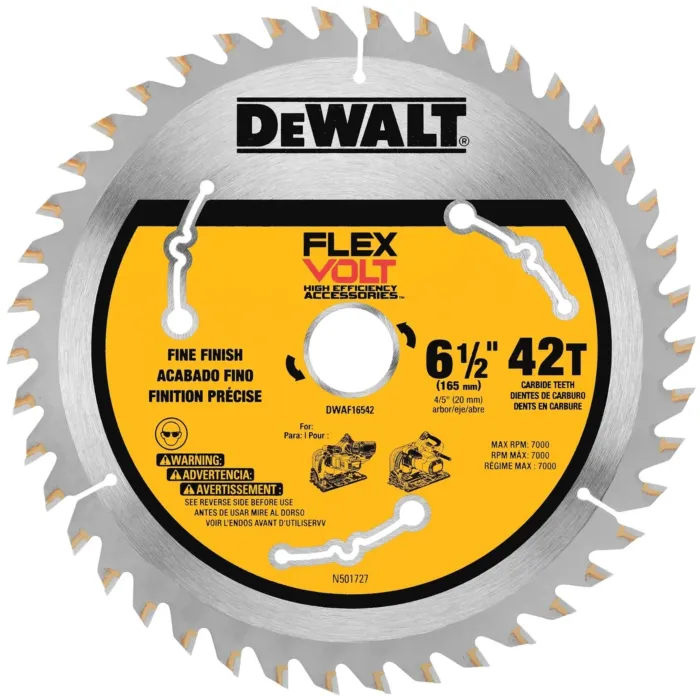

The FLEXVOLT TrackSaw Blade is designed for optimal performance. A thin kerf design and patented body slots provide smooth cuts. The submicron grade carbide teeth have 10 degrees hook angles and a 4 degrees face shear, ground with an ATB+R tooth configuration for long life and fast, accurate cuts. The blade provides up to 40% more cuts per charge when used as part of the FLEXVOLT system (saw + battery + blade).
- Thin kerf design and patented body slots for smooth cuts
- Submicron grade carbide teeth for long life
- ATB+R tooth grind for true cuts
- Optimized, 10-degree hook angle for low cut force
- 4-degree face shear for fast cuts
| Brand | DEWALT |
|---|---|
| UPC | 885911521352 |
| Store Location (Lititz, PA) | Aisle 22, Section I1 |
| Package Length (in) | 0.50" |
| Package Width (in) | 8.00" |
| Package Height (in) | 8.75" |
| Manufacturer Part Number | DWAF16542 |
| Country of Origin | China |
| Length | 7.88" |
| Width | 0.5" |
| Height | 8.75" |
| Weight | 0.48 lb |
| Power Source | NON-ENERGY USING |
| Battery Included | No |
| Battery Test Summary | DEWALT_UN38.3 LITHIUM TEST SUMMARY_rev1,10.pdf |
| Disclaimer | DWAF16542 on average vs. DW5258 in pine |
| Prop 65 Generic Warning | No |
| Warranty | MWC |
| Claims Needed | Yes |
| 13/16 Inch Diamond Arbor Knockout | No |
| Arbor Size | 20 mm |
| Blade Diameter | 6-1/2" |
| Blade Material | Carbide |
| Cuts Into | Wood |
| Individual Vs. Set (Syndigo) | INDIVIDUAL |
| Kerf | 0.076" |
| Maximum Speed | 7000 RPM Rpm |
| Non-Stick Coating | No |
| Number Of Teeth | 42 |
| Thickness | 0.076" |
| Tooth Configuration | Alternate Top Bevel Plus Raker (ATB+R) |
| Use With | Table Saw |
