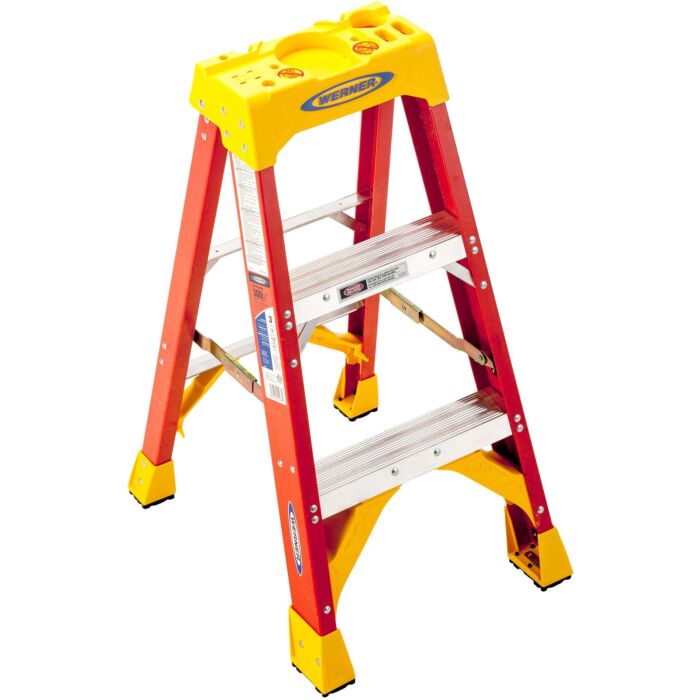

The 6203 Fiberglass 3 ft Step Ladder is an ideal tool for both homeowners and professionals, featuring a heavy-duty 300-pound duty rating. Built with non-conductive fiberglass rails, it is safe for use near electricity. The ladder enhances productivity with its HolsterTop with Lock-In System, which secures tools from falling while keeping them conveniently at hand. For safety and durability, it is constructed with heavy-duty internal spreaders, a full set of rear horizontals, and steps that are all knee braced. Each step is a slip-resistant, double-riveted TRACTION-TRED® design, and the foot pads are securely riveted to the EDGE® structure, a bracing system that provides superior rail protection against damage.
- HolsterTop with Lock-In System secures tools to increase productivity
- All steps and top rear horizontal are knee braced
- Back-up plates reinforce all top connectors
- 4 rivets attach top to each front rail
- Shoulder bolt and nut on top hinge
- Slip-resistant foot pads attached to the EDGE® structure
- Double-riveted slip-resistant TRACTION-TRED® steps
- Every rivet backed up by metal, metal plates, or washers to protect rails
- Heavy-duty internal spreaders
- Full set of rear horizontals spaced one per foot
| Brand | Werner |
|---|---|
| UPC | 051751014884 |
| Store Location (Lititz, PA) | Aisle 32, Section A1 |
| Manufacturer Part Number | 6203 |
| Spreader Material | Steel |
| Description of Top Features | Paint tray slot, can hook, Lock in accessory sockets, 2 tool holes, drill hole, p int, quart & gallon paint can, 2 parts trays, tape measure slot |
| Approx. Spread | 23-1/8" |
| Load Capacity | 300 lb |
| Performance Rating | 4 star |
| Max. Standing Height | 1 ft 11" |
| Certifications | ANSI A14.5 (2007); OSHA |
| Approx. Width | 18-1/8" |
| Edge Bracing | Heavy |
| Size | 3 ft |
| Approx. Shipping Wt. | 13 lb |
| Approx. Cu. Ft. Per Unit | 2 |
| Type | Type IA Duty Rating |
| With Pail Shelf | No |
| Reach Height | 7 ft |
| Material | Fiberglass |
| Front Flange Dimension | 1-3/16" |
| Rear Flange Dimension | 2-1/16" |
| Rear Rails Dimension | 1-7/8" |
| Top Dimension | 5-3/4" x 13" |
| Steps Dimension | 3" |
| Front Rails Dimension | 3-1/8" |
| Style | Single-Sided |
