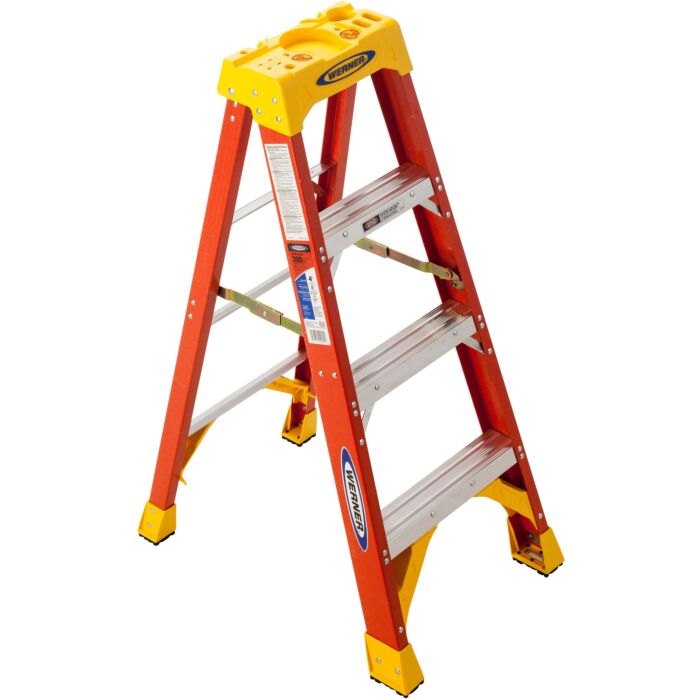

The 6204 Fiberglass 4 ft Step Ladder is ideal for the homeowner or the professional. With a duty rating of 300 pounds, it features a HolsterTop with the Lock-In System to secure tools from falling while keeping them right at hand. The ladder offers a full set of rear horizontals and heavy duty internal spreaders. All steps are knee braced and the foot pads are riveted to the EDGE® structure. The EDGE bracing system helps protect the rail from damage. Each TRACTION-TRED® step is slip resistant and double riveted. Fiberglass rails are non-conductive for working near electricity.
- HolsterTop with Lock-In System secures tools to increase productivity
- Back-up plates reinforce all top connectors
- Slip-resistant foot pads attached to the EDGE® structure
- Optional manual pail shelf kit, model no. PK76-9 or automatic closing pail shelf kit model no. 76-2
- 4 rivets attach top to each front rail
- All steps and top rear horizontal are knee-braced
- Every rivet backed up by metal, metal plates or washers to protect rails
- Double riveted slip-resistant TRACTION-TRED® steps
- Shoulder bolt and nut on top hinge
- Full set of rear horizontals spaced one per foot
- Heavy duty internal spreaders
- 6205
- 6208
- 6212
- 6210
- 6206
- 6206S
- 6204
- 6203
- 6207
- AC50-JB-3 Lock-In Job Bucket
- PK76-9 Universal Pail Shelf
- AC11 Stepladder Hanger
- AC27-P Lock-In Paint Cup
- AC24 Multipurpose Project Tray
- 76-2 Molded Plastic Pail Shelf
- PK76-3 Auto-Closing Pail Shelf
- AC58-TL Lock-In Tool Lasso
- AC54-JC Lock-In Job Caddy
- AC56-UH Lock-In Utility Hook
- AC52-UB Lock-In Utility Bucket
- 21-20 Grating Shoes
Brand | Werner |
---|---|
UPC | 051751014891 |
Store Location (Lititz, PA) | Aisle 31, Section A2 |
Manufacturer Part Number | 6204 |
Load Capacity | 300 lbs |
Reach Height | 8 ft |
Spreader Material | Steel |
Performance Rating | 4 star |
Size | 4 ft |
Approx. Cu. Ft. Per Unit | 3 |
Type | Type IA Duty Rating |
Max. Standing Height | 1 ft 11 in |
Edge Bracing | Heavy |
Material | Fiberglass |
Certifications | ANSI A14.5 (2007); OSHA |
Approx. Spread | 29 in |
Approx. Width | 19-7/8 in |
Description of Top Features | Paint tray slot, can hook, Lock in accessory sockets, 2 tool holes, drill hole, p int, quart & gallon paint can, 2 parts trays, tape measure slot |
Approx. Shipping Wt. Lbs. | 16 |
With Pail Shelf | No |
Style | Single-Sided |
Steps Dimension | 4 in |
Rear Flange Dimension | 1-3/16 in |
Front Flange Dimension | 1-3/16 in |
Rear Rails Dimension | 1-3/8 in |
Front Rails Dimension | 3-1/8 in |
Top Dimension | 5-3/4 in x 13 in |
