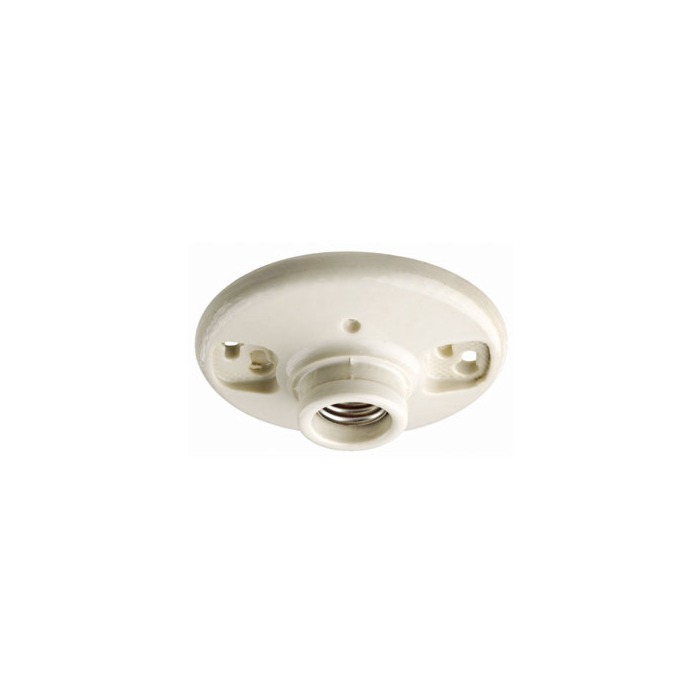

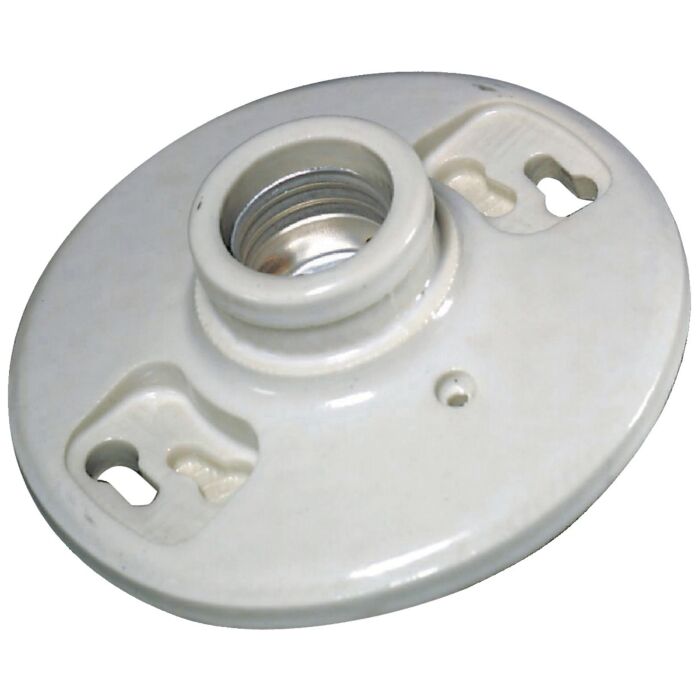

660W/250V Medium Base One-Piece Glazed Porcelain Outlet Box Mount Incandescent Lampholder, Keyless, Single Circuit, 4 Screws with Case Lip, Top Wired - White
- Leviton produces lamp holders for virtually every light source equipped with incandescent, fluorescent, or LED lamps. Lamp-holders include incandescent medium base, and specialty sizes & fluorescent lamp holders, in addition to a large line of porcelain lamp holders including pulse-rated mogul-base products, and an extensive selection of devices for high-intensity lamps.
Brand | Leviton |
---|---|
UPC | 078477323007 |
Store Location (Lititz, PA) | Aisle 09, Section C4 |
Package Length (in) | 4.56" |
Package Width (in) | 1.78" |
Package Height (in) | 1.78" |
Manufacturer Part Number | B01-49875-000 |
CSA Certified | File LR-1863 |
UL Listed | File E3810 |
Availability | Distribution |
Body Material | Glazed Porcelain |
Circuit | Single Circuit |
Color | White |
Fits Outlet Box Size | 3-1/4 or 4 Inch |
Lamp Socket Base | Medium |
Mounting Type | Twist-Lock |
Operator Type | Keyless |
Sequence | ON-OFF |
Shell Material | Aluminum |
Socket Shell Material | Aluminum |
Termination | 4 Terminal Screws |
Construction | One-Piece |
Torque Range | 14 – 18 in.-lbs |
Country of Origin | China |
RoHS Compliant | True |
Lamp Base | Medium |
Lampholder Type | Outlet Box Mount |
Light Type | Incandescent |
Max. Lamp Wattage | 660W |
Standards and Certifications | UL/CSA, NOM |
Warranty | 1-Year Limited |
Wiring Access | Top Wired |
