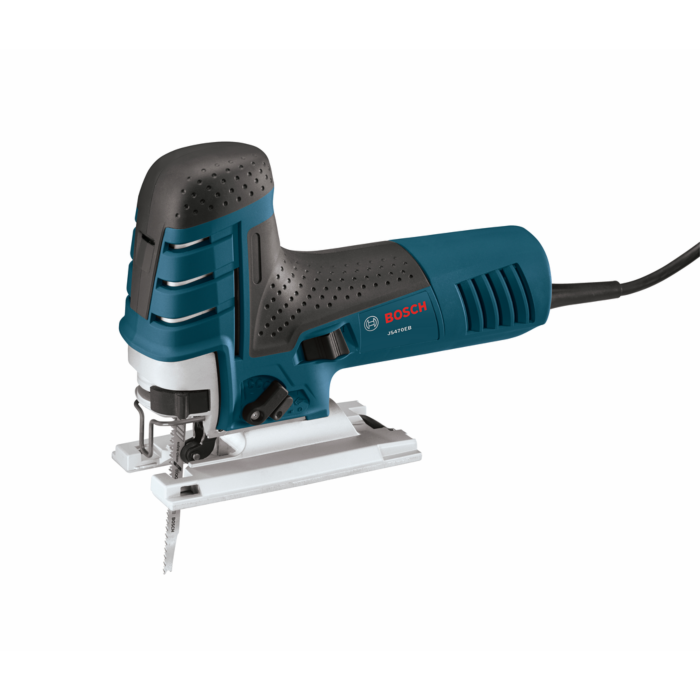

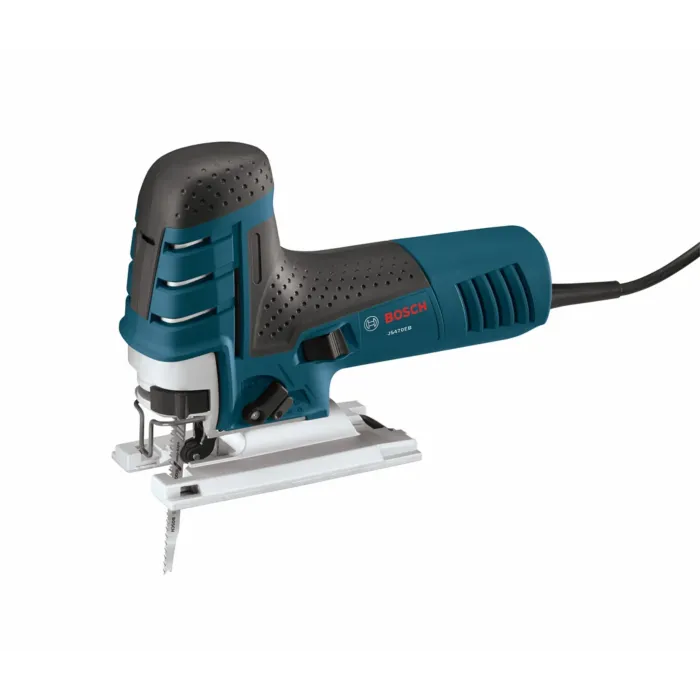

The Bosch JS470EB Barrel-Grip Jig Saw provides unsurpassed cut precision. Finish carpenters and kitchen and bath installers will appreciate the best-in-class 7.0 Amp motor and variable-speed control, making this saw an excellent choice for curve-cutting. It delivers 500 up to 3,100 strokes per minute – with a stroke length of 1 In. It has an ergonomic body with an upfront soft-grip handle for comfort and user control. It was manufactured with an aluminum gearbox. This fully counterbalanced low-vibration mechanism provides a low-vibration plunging design and Constant Response circuitry for consistent speed under load. It has a large die-cast aluminum footplate with a no-mar plastic overshoe. The JS470EB's multidirectional blade clamp delivers superior grip of T-shank blades (but it does not accept U-shank blades). A variable-speed dial sets the operating speed. The blade-ejection lever that eliminates need to touch hot blades. It has a dust blower for max cut-line visibility.
- Large die-cast aluminum footplate – provides a no-mar plastic overshoe
- Ergonomic body – features an upfront grip area for maximum control, precision and comfort
- Soft-grip areas – offers a solid, comfortable grip
- Powerful 7.0 Amp motor – delivers up to 3,100 strokes per minute
- Variable-speed control – includes a dial to control operating speed
- Constant Response circuitry – for consistent performance under load
- Multi-directional blade clamp – superior grip of T-shank blades (does not accept U-shank blades)
- Aluminum gearbox with insulated cover – provides durability
- Toolless blade-change system – permits fast blade insertion
- Ejection lever – eliminates the need to touch hot blades
- Four orbital-action settings – varied blade strokes
- Internal precision control – precision-machined plunging system and low-vibration design for enhanced accuracy and extremely smooth operation
- Dust blower with on/off switch – keeps the cut line visible and free of dust
- Fully counterbalanced low-vibration mechanism – ensures extremely smooth operation
- Bosch JA1007
- Bosch JA1010
Brand | Bosch |
---|---|
UPC | 000346398373 |
Store Location (Lititz, PA) | Aisle 27, Section N4 |
Package Length (in) | 15.50" |
Package Width (in) | 14.50" |
Package Height (in) | 4.75" |
Manufacturer Part Number | JS470EB |
Adjustable Shoe | Yes |
Amperage (A) | 7 |
Bevel Adjustment Wrench Included | Yes - Loose |
Blade Type | Jig Saw T-Shank |
Blade Wrench Included | Not Required |
Blades Included | 1 |
CSA Certified | No |
Color / Finish | Blue |
Cord Length (ft) | 10 |
Cordless / Corded | Corded |
Country of Origin | Hungary |
Cutting Capacity- Soft Wood | 5-7/8" |
Cutting Capacity-Aluminum | 0.875 |
Cutting Capacity-Mild Steel | 0.375 |
Dust Blower | Yes |
Dust Collection | Yes |
Dust Port | Yes |
ETL Listed | No |
Electrical Cord Configuration | 14 Gauge |
Electronic Speed Control | No |
External Motor Brush Access | No |
GTIN | 00000346398373 |
Height (in) | 7 |
Hertz | 60 |
Housing Material | High Density Plastic |
Integrated Blade Storage | No |
Integrated Laser Guide | No |
Integrated Work Light | Not Featured |
Jig Saw Adjustable Shoe | Yes |
Jig Saw Bevel Adjustment Wrench Included | Yes - Loose |
Jig Saw Blade Type | Jig Saw T-Shank |
Jig Saw Blade Wrench Included | Not Required |
Jig Saw Blades Included | 1 |
Jig Saw Color / Finish | Blue |
Jig Saw Dust Blower | Yes |
Jig Saw Electronic Speed Control | No |
Jig Saw External Motor Brush Access | No |
Jig Saw Height (in) | 7 |
Jig Saw Housing Material | High Density Plastic |
Jig Saw Integrated Blade Storage | No |
Jig Saw Integrated Laser Guide | No |
Jig Saw Integrated Work Light | No |
Jig Saw Length (in) | 7 |
Jig Saw Lock-on Switch | Yes |
Jig Saw Main Handle Type | Top Handle |
Jig Saw Maximum Metal Cutting Capacity (in) | 0.875 |
Jig Saw Maximum Strokes per Minute - No Load | 3100 |
Jig Saw Maximum Wood Cutting Capacity (in) | 5.875 |
Jig Saw Minimum Strokes per Minute - No Load | 500 |
Jig Saw Orbital Action | Yes |
Jig Saw Orbital Action Settings | 4 |
Jig Saw Quick Change Blade System | Yes |
Jig Saw Scrolling Action | Yes |
Jig Saw Shoe Cover Included | Yes |
Jig Saw Shoe Material | Die-Cast Aluminum with Steel Insert |
Jig Saw Stroke Length (in) | 1 |
Jig Saw Tool-Less Bevel Adjustment | No |
Jig Saw Tool-Less Blade Changing | Yes |
Jig Saw Variable Speed | Yes |
Jig Saw Width (in) | 2.5 |
Keyless / Keyed Blade Change | Keyless |
Length (in) | 7 |
Lock-on Switch | Yes |
Main Handle Type | Top Handle |
Max. Bevel Cut | 45° |
Maximum Metal Cutting Capacity (in) | 0.875 |
Maximum Strokes per Minute - No Load | 3100 |
Maximum Wood Cutting Capacity (in) | 5.875 |
Minimum Strokes per Minute - No Load | 500 |
Net Tool Weight (lbs) | 5.9 |
Number of Orbital Action Settings | 4 |
Orbital Action | Yes |
Powered Tool Power Source | Electric - Corded |
Quick Change Blade System | Yes |
Rating | 120V |
Reverse | No |
Saw Design | Barrel Grip |
Scrolling Action | Yes |
Shoe Cover Included | Yes |
Shoe Material | Die-Cast Aluminum with Steel Insert |
Stroke Length (in) | 1 |
Tool Storage | Case |
Tool-Less Bevel Adjustment | No |
Tool-Less Blade Changing | Yes |
UL Listed | Yes |
Variable Speed | Yes |
Voltage | 120 |
Voltage (V) | 120 |
Weight | 5.9 lb |
Weight (lbs) | 5.9 lb |
Width (in) | 2.5 |
