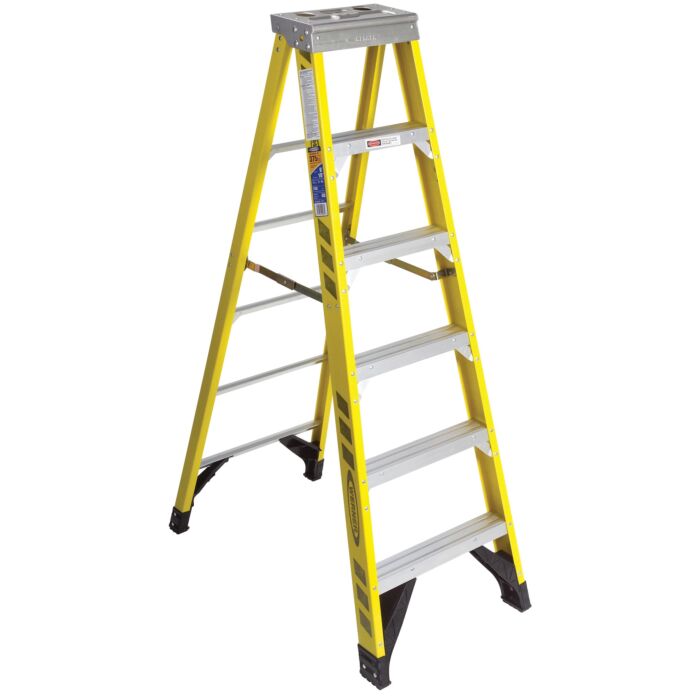

The 7306 Fiberglass 6-foot Step Ladder has a duty rating of 375 pounds and features a heavy-duty aluminum HolsterTop®. With a full set of horizontals and heavy-duty internal spreaders, these ladders are built for the long haul. The molded external rail shields and the EDGE® bracing system help decrease damage to the rails. The slip-resistant Traction-Tred® steps are single riveted and have extra-wide knee braces. The GLAS*MARK® Violator stripes increase the visibility of the ladder on the jobsite. Fiberglass rails are nonconductive for working near electricity.
- Extra heavy-duty aluminum HolsterTop® with thick side plates
- Shoulder bolt and lock nut on top hinge; four (4) solid aluminum rivets attach top to each front rail
- Slip-resistant Traction-Tred® steps are single riveted and have extra-wide knee braces
- Heavy-duty internal spreaders
- Full set of rear horizontals spaced one per foot
- GLAS*MARK® Violator stripes on rails allow ladder to be more visible
- EDGE® bracing system helps to decrease damage to rail
- Molded external rail shield helps protect against abrasion damage
- Slip-resistant foot pads attached to the EDGE® structure
- Plastic external rail shield helps protect against abrasion damage
- Every rivet backed up by metal, metal plates, or a washer to protect rails
| Brand | Werner |
|---|---|
| UPC | 051751042870 |
| Store Location (Lititz, PA) | Front Porch |
| Manufacturer Part Number | 7306 |
| Performance Rating | 5 star |
| Reach Height | 10 ft |
| Approx. Width | 25" |
| Description of Top Features | Parts tray, 2 drill holes, 2 tool slots, 3 tool holes |
| With Pail Shelf | No |
| Material | Fiberglass |
| Approx. Spread | 42" |
| Spreader Material | Steel |
| Type | Type IAA Duty Rating |
| Approx. Cu. Ft. Per Unit | 5.8 |
| Edge Bracing | Heavy |
| Size | 6 ft |
| Certifications | ANSI A14.5 (2007); OSHA |
| Load Capacity | 375 lb |
| Max. Standing Height | 3 ft 10" |
| Approx. Shipping Wt. | 22.5 lb |
| Style | Single-Sided |
| Steps Dimension | 3" |
| Front Flange Dimension | 1-3/16" |
| Front Rails Dimension | 3-1/8" |
| Rear Rails Dimension | 1-7/8" |
| Rear Flange Dimension | 1-3/16" |
| Top Dimension | 7-1/4" x 14-7/8" |
