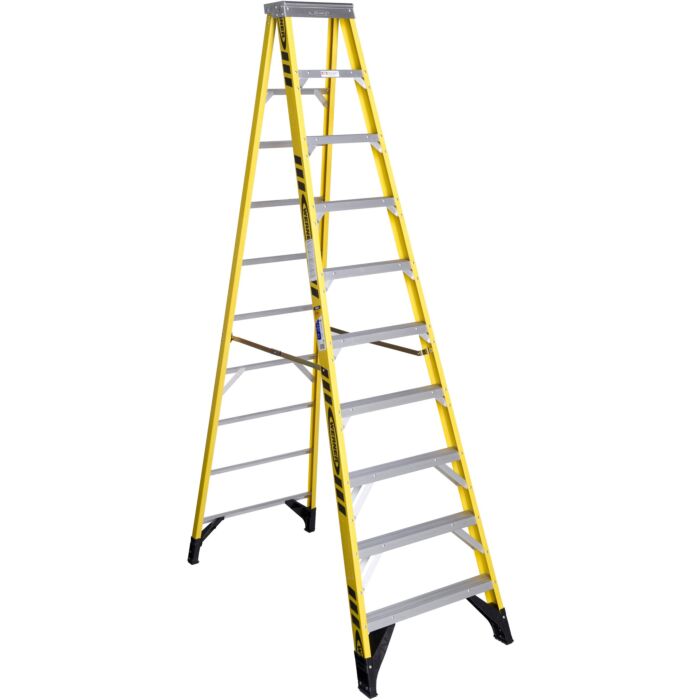

The 7310 Fiberglass 10 ft Step Ladder has a duty rating of 375 pounds and features heavy duty aluminum HolsterTop. With a full set of horizontals and heavy duty internal spreaders, these ladders are built for the long haul. The molded external rail shields and the EDGE® bracing system help decrease damage to the rails. The slip-resistant TRACTION-TRED® steps are single riveted and have extra wide knee braces. The GLAS*MARK® Violator stripes increase the visibility of the ladder on the jobsite. Fiberglass rails are non-conductive for working near electricity.
- Shoulder bolt and lock nut on top hinge; 4 solid aluminum rivets attach top to each front rail
- GLAS*MARK® Violator stripes on rails allow ladder to be more visible
- Full set of rear horizontals spaced one per foot
- Heavy duty internal spreaders
- Plastic external rail shield helps protect against abrasion damage
- Optional manual pail shelf kit, model no. PK76-9 or automatic closing pail shelf kit model no. 76-2
- Extra heavy duty aluminum HolsterTop with thick side plates
- Molded external rail shield helps protect against abrasion damage
- Slip-resistant TRACTION-TRED® steps are single riveted and have extra wide knee braces
- Slip-resistant foot pads attached to the EDGE® structure
- EDGE® bracing system helps to decrease damage to rail
- Every rivet backed up by metal, metal plates or washers to protect rails
- AC11 Stepladder Hanger
- 21-20 Grating Shoes
- AC24 Multipurpose Project Tray
- PK76-3 Auto-Closing Pail Shelf
- PK76-9 Universal Pail Shelf
Brand | Werner |
---|---|
UPC | 051751042900 |
Manufacturer Part Number | 7310 |
Reach Height | 14 ft |
Approx. Width | 32 in |
Approx. Cu. Ft. Per Unit | 11.4 |
Edge Bracing | Heavy |
Type | Type IAA Duty Rating |
Certifications | ANSI A14.5 (2007); OSHA |
Performance Rating | 5 star |
Max. Standing Height | 7 ft 8 in |
Description of Top Features | Parts tray, 2 drill holes, 2 tool slots, 3 tool holes |
Spreader Material | Steel |
Approx. Spread | 66-5/8 in |
Material | Fiberglass |
Load Capacity | 375 lbs |
With Pail Shelf | No |
Approx. Shipping Wt. Lbs. | 40.5 |
Size | 10 ft |
Style | Single-Sided |
Rear Flange Dimension | 1-3/16 in |
Rear Rails Dimension | 1-7/8 in |
Front Flange Dimension | 1-3/16 in |
Front Rails Dimension | 3-1/8 in |
Top Dimension | 7-1/4 in x 14-7/8 in |
Steps Dimension | 3 in |
