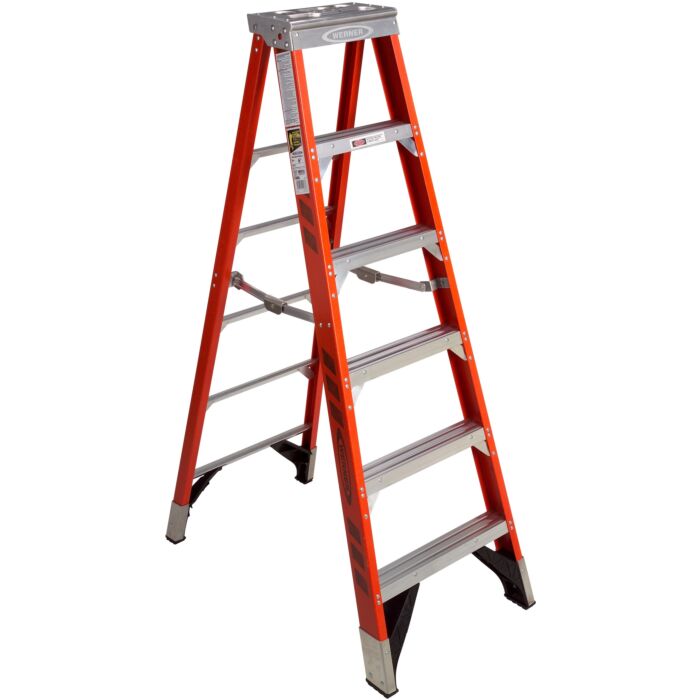

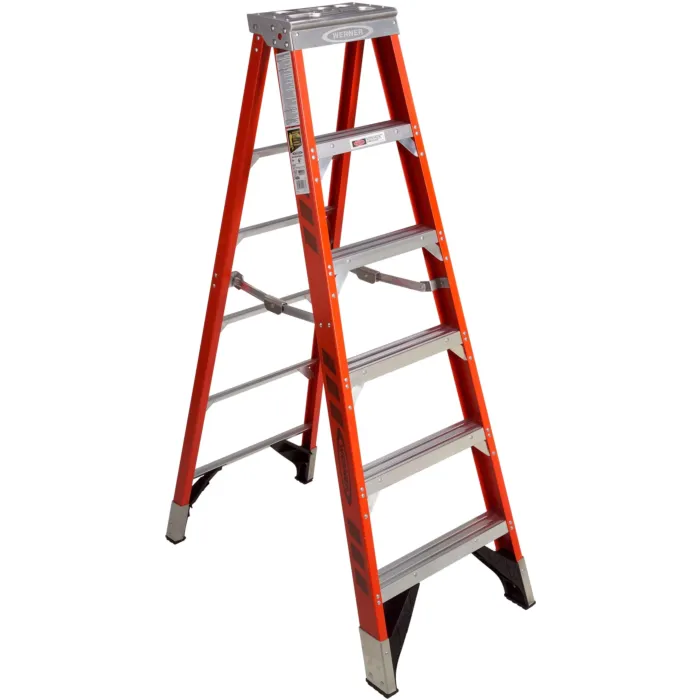

Built to last, the Werner 375-pound duty rated 7406 Fiberglass 6 ft Step Ladder is rugged and ready for the job. This ladder features extra heavy duty aluminum HolsterTop, internal spreaders and external rail shields for long lasting durability. With The EDGE® bracing system and GLAS*MARK® Violator stripes on the rails, the 7400 series is built to handle the work site and stands ready for tough jobs. Fiberglass rails are non-conductive for working near electricity.
- Back-up plates reinforce all top connectors
- Extra heavy duty internal aluminum spreaders
- GLAS*MARK® Violator stripes on rails allow ladder to be more visible
- Full set of rear horizontals are knee braced and spaced one per foot
- Slip-resistant foot pads attached to the EDGE® structure
- Optional manual pail shelf kit, model no. PK76-9 or automatic closing pail shelf kit model no. 76-2
- EDGE® bracing system helps to decrease damage to rail
- Slip-resistant TRACTION-TRED® steps are double riveted and have extra wide knee braces
- Extra heavy duty aluminum HolsterTop with thick side plates
- Shoulder bolt and lock nut on top hinge; 4 solid aluminum rivets attach top to each front rail
- Aluminum external rail shield helps protect against abrasion damage
- Every rivet backed up by metal, metal plates or washers to protect rails
- 7412
- 7410
- 7404
- 7405
- 7403
- 7406
- 7408
- 7407
- PK76-3 Auto-Closing Pail Shelf
- PK76-9 Universal Pail Shelf
- AC11 Stepladder Hanger
- AC24 Multipurpose Project Tray
- 21-20 Grating Shoes
Brand | Werner |
---|---|
UPC | 051751011333 |
Store Location (Lititz, PA) | Aisle 34, Section A3 |
Manufacturer Part Number | 7406 |
Approx. Spread | 42-7/8 in |
Approx. Width | 25 in |
Approx. Cu. Ft. Per Unit | 5.8 |
With Pail Shelf | No |
Material | Fiberglass |
Type | Type IAA Duty Rating |
Performance Rating | 5 star |
Load Capacity | 375 lbs |
Size | 6 ft |
Reach Height | 10 ft |
Max. Standing Height | 3 ft 10 in |
Spreader Material | Aluminum |
Edge Bracing | Heavy |
Certifications | ANSI A14.5 (2007); OSHA |
Approx. Shipping Wt. Lbs. | 25 |
Description of Top Features | Parts tray, 2 drill holes, 2 tool slots, 3 tool holes |
Front Rails Dimension | 3-1/8 in |
Rear Rails Dimension | 1-7/8 in |
Steps Dimension | 3 in |
Front Flange Dimension | 1-3/16 in |
Top Dimension | 7-1/4 in x 14-7/8 in |
Rear Flange Dimension | 1-3/16 in |
Style | Single-Sided |
