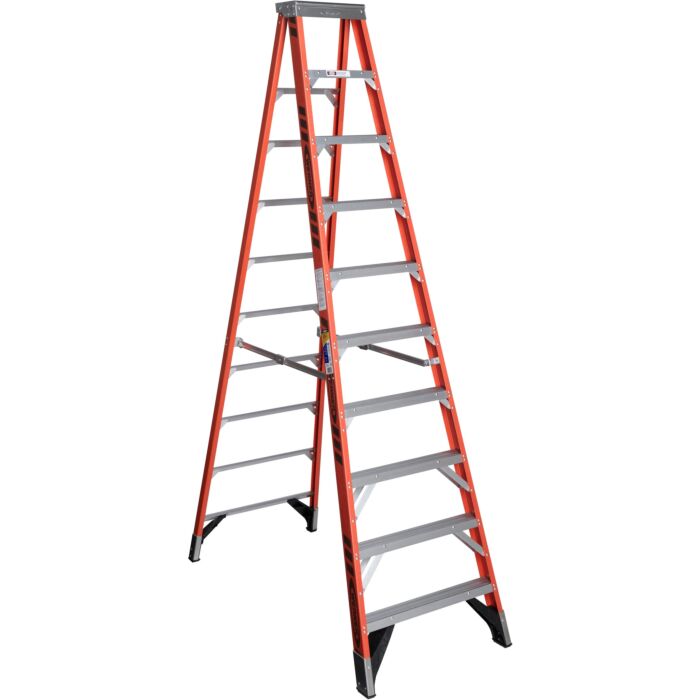

Built to last, the Werner 375-pound duty rated 7410 Fiberglass 10 ft Step Ladder is rugged and ready for the job. This ladder features extra heavy duty aluminum HolsterTop, internal spreaders and external rail shields for long lasting durability. With The EDGE® bracing system and GLAS*MARK® Violator stripes on the rails, the 7400 series is built to handle the worksite and stands ready for tough jobs. Fiberglass rails are non-conductive for working near electricity.
- AC24 Multipurpose Project Tray
- 21-20 Grating Shoes
- PK76-3 Auto-Closing Pail Shelf
- AC11 Stepladder Hanger
- PK76-9 Universal Pail Shelf
- 7404
- 7408
- 7410
- 7412
- 7405
- 7406
- 7403
- 7407
- EDGE® bracing system helps to decrease damage to rail
- Slip-resistant TRACTION-TRED® steps are double riveted and have extra wide knee braces
- Full set of rear horizontals are knee braced and spaced one per foot
- Extra heavy duty internal aluminum spreaders
- Back-up plates reinforce all top connectors
- Shoulder bolt and lock nut on top hinge; 4 solid aluminum rivets attach top to each front rail
- Optional manual pail shelf kit, model no. PK76-9 or automatic closing pail shelf kit model no. 76-2
- Aluminum external rail shield helps protect against abrasion damage
- GLAS*MARK® Violator stripes on rails allow ladder to be more visible
- Extra heavy duty aluminum HolsterTop with thick side plates
- Slip-resistant foot pads attached to the EDGE® structure
- Every rivet backed up by metal, metal plates or washers to protect rails
Brand | Werner |
---|---|
UPC | 051751011364 |
Manufacturer Part Number | 7410 |
Reach Height | 14 ft |
Style | Single-Sided |
Load Capacity | 375 lbs |
Size | 10 ft |
Type | Type IAA Duty Rating |
Performance Rating | 5 star |
Top Dimension | 7-1/4 in x 14-7/8 in |
Front Rails Dimension | 3-1/8 in |
Rear Flange Dimension | 1-3/16 in |
Front Flange Dimension | 1-3/16 in |
Rear Rails Dimension | 1-7/8 in |
Steps Dimension | 3 in |
Approx. Spread | 67-1/2 in |
Max. Standing Height | 7 ft 8 in |
With Pail Shelf | No |
Certifications | ANSI A14.5 (2007); OSHA |
Description of Top Features | Parts tray, 2 drill holes, 2 tool slots, 3 tool holes |
Edge Bracing | Heavy |
Approx. Width | 32 in |
Approx. Cu. Ft. Per Unit | 11.4 |
Approx. Shipping Wt. Lbs. | 40.5 |
Material | Fiberglass |
Spreader Material | Aluminum |
