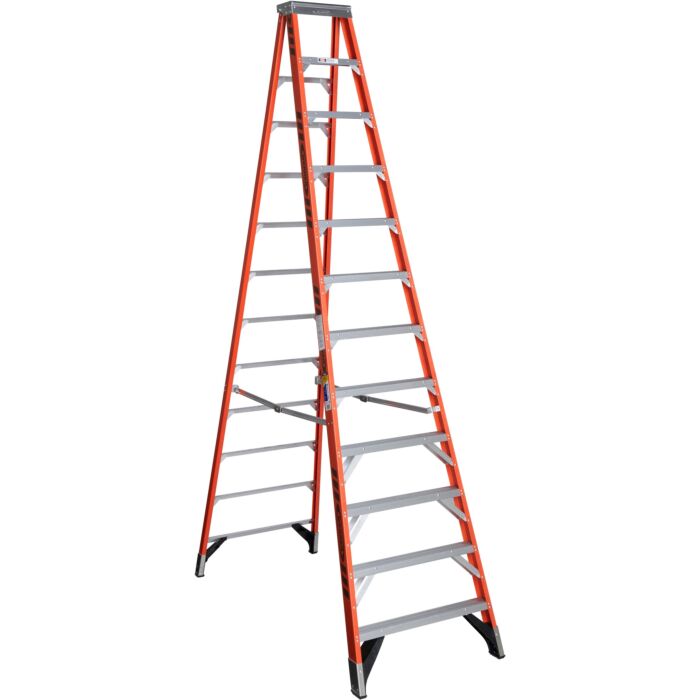

Built to last, the Werner 375-pound duty rated 7412 Fiberglass 12 ft Step Ladder is rugged and ready for the job. This ladder features extra heavy duty aluminum HolsterTop, internal spreaders and external rail shields for long lasting durability. With The EDGE® bracing system and GLAS*MARK® Violator stripes on the rails, the 7400 series is built to handle the worksite and stands ready for tough jobs. Fiberglass rails are non-conductive for working near electricity.
- EDGE® bracing system helps to decrease damage to rail
- Aluminum external rail shield helps protect against abrasion damage
- Optional manual pail shelf kit, model no. PK76-9 or automatic closing pail shelf kit model no. 76-2
- Back-up plates reinforce all top connectors
- Shoulder bolt and lock nut on top hinge; 4 solid aluminum rivets attach top to each front rail
- Extra heavy duty aluminum HolsterTop with thick side plates
- Full set of rear horizontals are knee braced and spaced one per foot
- Every rivet backed up by metal, metal plates or washers to protect rails
- Slip-resistant TRACTION-TRED® steps are double riveted and have extra wide knee braces
- GLAS*MARK® Violator stripes on rails allow ladder to be more visible
- Extra heavy duty internal aluminum spreaders
- Slip-resistant foot pads attached to the EDGE® structure
- 7407
- 7408
- 7406
- 7403
- 7410
- 7412
- 7405
- 7404
- AC24 Multipurpose Project Tray
- PK76-3 Auto-Closing Pail Shelf
- PK76-9 Universal Pail Shelf
- 21-20 Grating Shoes
- AC11 Stepladder Hanger
Brand | Werner |
---|---|
UPC | 051751011371 |
Manufacturer Part Number | 7412 |
Approx. Spread | 79-7/8 in |
Performance Rating | 5 star |
Size | 12 ft |
Load Capacity | 375 lbs |
With Pail Shelf | No |
Edge Bracing | Heavy |
Max. Standing Height | 9 ft 7 in |
Approx. Width | 35-1/2 in |
Type | Type IAA Duty Rating |
Approx. Cu. Ft. Per Unit | 14.8 |
Description of Top Features | Parts tray, 2 drill holes, 2 tool slots, 3 tool holes |
Approx. Shipping Wt. Lbs. | 49.5 |
Spreader Material | Aluminum |
Material | Fiberglass |
Certifications | ANSI A14.5 (2007); OSHA |
Reach Height | 16 ft |
Front Flange Dimension | 1-3/16 in |
Front Rails Dimension | 3-1/8 in |
Rear Rails Dimension | 1-7/8 in |
Top Dimension | 7-1/4 in x 14-7/8 in |
Rear Flange Dimension | 1-3/16 in |
Steps Dimension | 3 in |
Style | Single-Sided |
