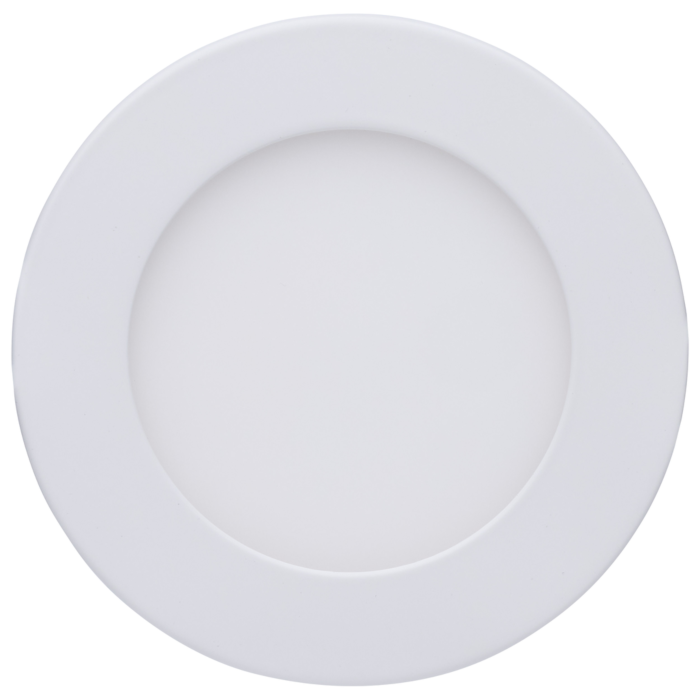

8/12 Watt LED Direct Wire Downlight - 27K/3K/35K/4K/5K CCT - Remote Driver - 4 Inch - Round - Flat Face - White Finish - 120-277 Volt - Dual Dimming
SKU: S11690
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$24.99
Features
Specifications
Downloads

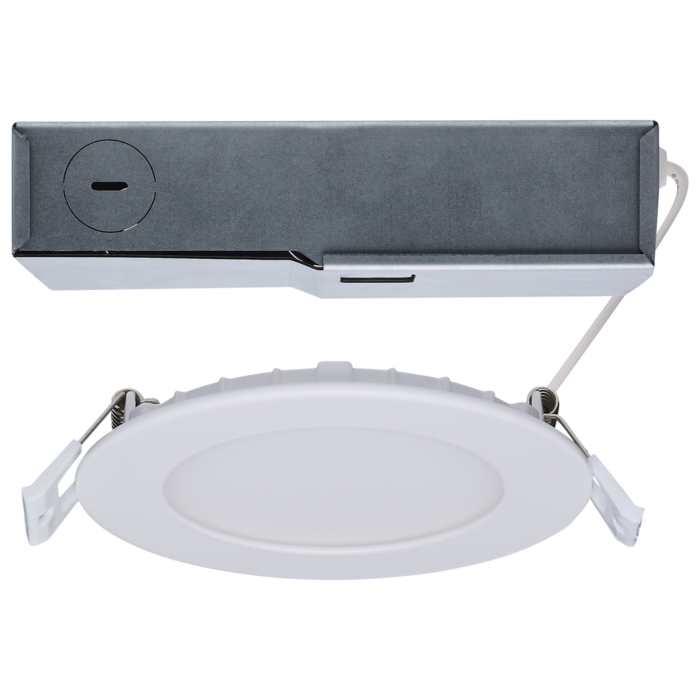

The SATCO NUVO Pro Series S11690 4" LED Slimfit Downlight delivers compact, high-performance illumination for applications with limited ceiling clearance. Field-selectable CCT and dual wattage options (8W/12W) provide up to 1,000 lumens while replacing a 75W incandescent lamp. A pre-wired remote driver and dual dimming compatibility-Phase-cut at 120V and 0–10V at 120–277V-support flexible lighting control. IC and Airtight rated with 90 CRI, this slim-profile fixture is NEC-compliant for closets and built with durable aluminum construction and an acrylic lens. Rated for 50,000 hours and backed by a 5-year warranty.
- Wattage Selectable for High & Very High Outputs
- 5 CCT Selectable from Warm to Natural Light
- Flat Face Design for Reduced Glare
- NEC Compliant Junction Box
- Dual Dimming
- FT6 Cable for Commercial Plenums
- 90 CRI
- Wet Location Rated
- 50,000 Hour Functional Life
- 5 Year Warranty
- Lead
- Plenum Rated FT6 Cable
| Date Added | Jul 14, 2026 |
|---|---|
| Store Location (Lititz, PA) | Aisle 03, Section Z1 |
| Package Length (in) | 2.48" |
| Package Width (in) | 5.08" |
| Package Height (in) | 6.89" |
| Country of Origin | Vietnam |
| Width | 4.72 in |
| Height | 1.34 in |
| Weight | 1.04 lbs |
| Warranty | 5-Years |
| Air Tight | Yes |
| ANSI Base | Integrated |
| Beam Spread | 108 |
| Bulb Included | Integrated |
| CCT Selectable | Yes |
| Ceiling Aperture | 4.25 in. Cutout |
| Closet Rated | Yes |
| Color Temp | Warm White to Natural Light |
| Connection | Direct Wired |
| CRI | 90+ |
| Diameter | 4.72 in. |
| Dimmable | Yes-Dimmable |
| Dimmable Function | Dual Dimming, Forward Phase at 120V / 0-10V at 120-277V |
| ENERGY STAR | Yes |
| ES Unique ID | 3994344 |
| ES Category | Downlight Recessed |
| FCC Compliant | Yes |
| Finish | White |
| Finish Family | White |
| Fixture shape | Round |
| Product Type | Remote Driver LED Downlight |
| Has Emergency Battery | No |
| Avg Rated Hours | 50000 |
| IC Rated | Yes |
| Incandescent Equiv | 75W |
| Indoor Outdoor | Indoor and Outdoor |
| Lamp Base | Integrated |
| Lamp Shape | Integrated LED |
| Lens Finish | Matte Frosted |
| Lens Material | Acrylic |
| Lumens | 720L/1000L |
| Material | Aluminum |
| Mounting Height | 3.43 |
| Mounting Diameter | 4.25 |
| NEC Compliance | Clothes Closet Certified - Reg: 410.16 (A)(3) and 410.16 (C)(5) |
| Operating Frequency | 60Hz |
| Operating Temp | -4F to +104F (-20C to +40C) |
| Power Factor | >0.9 |
| Replaceable Light Source | No |
| RoHS Compliant | Yes |
| Safety Listing | cETLus - Listed |
| Location Rating | Wet |
| Sloped Ceiling Compatible | Yes |
| Style | Utility |
| Surge Protection | Built-in surge protection - 2.5KV |
| Technology | LED |
| Temperature (CCT) | 2700K/3000K/3500K/4000K/5000K |
| THD | <20% |
| Volts | 120V-277V |
| Watts | 8W/12W |
| Wattage Selectable | Yes |
| Voltage Text | Range Voltage, AC Only |
| Has Camera | No |
| IOT Enabled | No |
| Title 20 | Exempt |
| T24 Compliant | Yes |
| CA Regulations | California T24 2016 - 2025 JA8 Listed |
