Features
Specifications

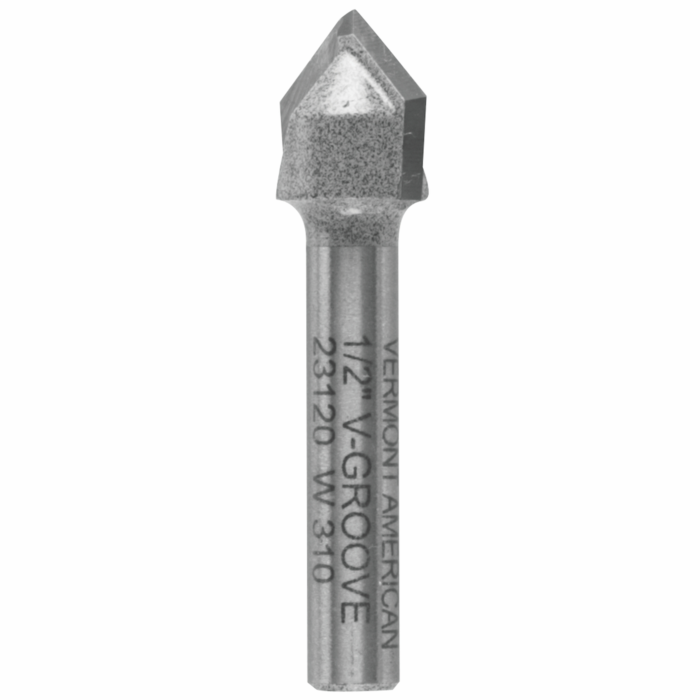

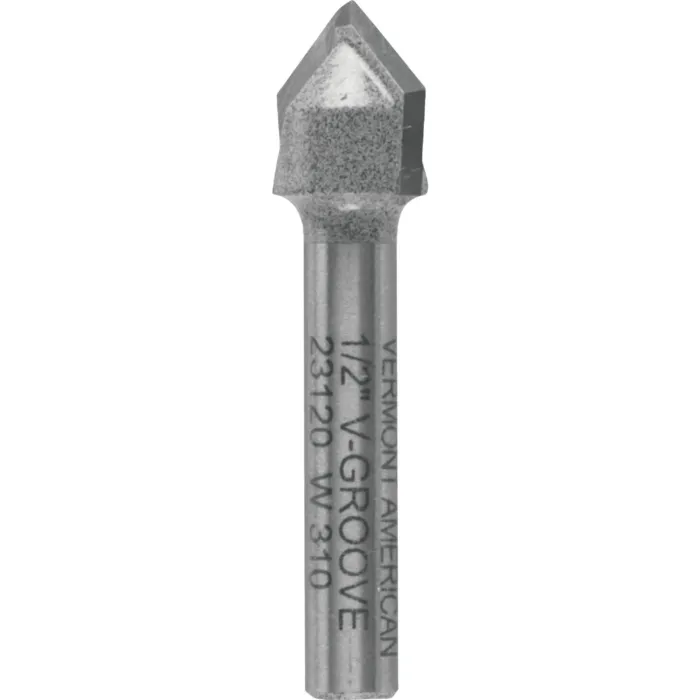

High quality tungsten carbide tips provide superior wear resistance and sharp edges. V-groove bit is used for cutting grooves of various shapes in a variety of applications. Heat treated shanks and bodies provide added durability.
- Ideal for door-front grooving, lettering and sign work
- Shear angle cutter geometry for efficient cutting
- Use with edge guide or template
- Micrograin carbide tips provide superior wear resistance and long life
- Includes plastic storage case
Brand | Bosch |
---|---|
UPC | 045325738009 |
Store Location (Lititz, PA) | Aisle 21, Section I5 |
Package Length (in) | 2.40" |
Package Width (in) | 1.20" |
Package Height (in) | 1.20" |
Manufacturer Part Number | 23120 |
A. Overall Diameter | 1/2" |
Angle | 90° |
B. Cutting Edge Length | 1/2" |
Bearing Included | No |
Bit Material | Carbide Tipped |
C. Shank Diameter | 1/4" |
Case Included | No |
Color / Finish | grey |
Country of Origin | China |
Cut Diameter (in) | 1 |
D. Overall Length | 1-3/4" |
Flute Length (in) | 0.5 |
GTIN | 00045325738009 |
Grooving Router Bit Type | V Groove |
Number of Flutes | 2 |
Overall Length (in) | 1.75 |
Router Bit Angle | 90 degrees |
Set / Individual | Individual |
Shank Diameter | 1/4 in |
