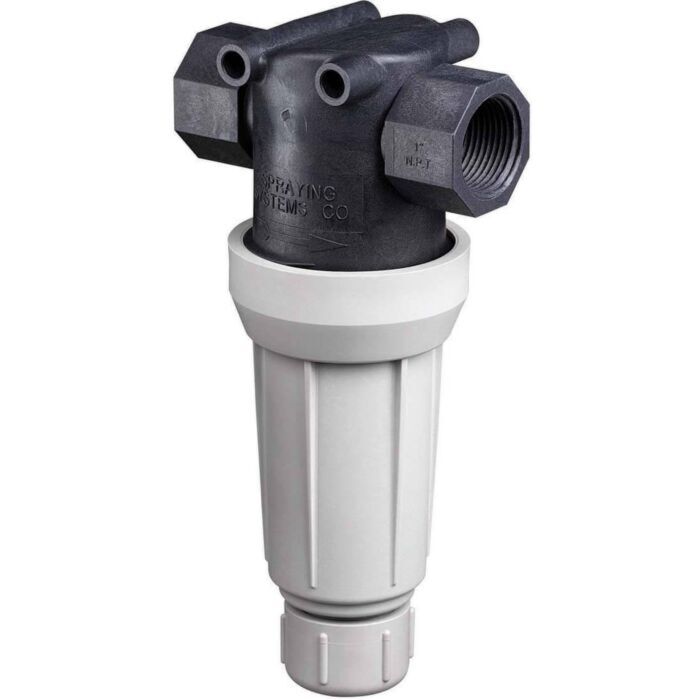

AA126 Poly FNPT Flush-Out Line Strainer with Mesh Screen
AA126 1-1/4" FNPT Flush-Out Line Strainer with 50 Mesh Screen
AA126 3/4" FNPT Flush-Out Line Strainer with 50 Mesh Screen
AA126 1-1/2" FNPT Flush-Out Line Strainer with 50 Mesh Screen
AA126 1" FNPT Flush-Out Line Strainer with 50 Mesh Screen
SKU: AA126ML-
SKU: AA126ML550
SKU: AA126ML350
SKU: AA126ML650
SKU: AA126ML450
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
As low as:
$39.99
As low as:
Features
Specifications
Downloads
AA126 1-1/4" FNPT Flush-Out Line Strainer with 50 Mesh Screen
- Strainer head and bowl are made of glass-filled polypropylene with EPDM gasket.
- Screens are made of 304SS with color-coded polypropylene frames and are removable for cleaning.
- Removable cap and o-ring for flush-out for self-cleaning operations.
- Integral mounting provision allows the strainer to be attached to machine using M10 or 3/8" bolts.
AA126 1-1/4" FNPT Flush-Out Line Strainer with 50 Mesh Screen
- Strainer head and bowl are made of glass-filled polypropylene with EPDM gasket.
- Screens are made of 304SS with color-coded polypropylene frames and are removable for cleaning.
- Removable cap and o-ring for flush-out for self-cleaning operations.
- Integral mounting provision allows the strainer to be attached to machine using M10 or 3/8" bolts.
AA126 3/4" FNPT Flush-Out Line Strainer with 50 Mesh Screen
- Strainer head and bowl are made of glass-filled polypropylene with EPDM gasket.
- Screens are made of 304SS with color-coded polypropylene frames and are removable for cleaning.
- Removable cap and o-ring for flush-out for self-cleaning operations.
- Integral mounting provision allows the strainer to be attached to machine using M8 or 5/16" bolts.
AA126 1-1/2" FNPT Flush-Out Line Strainer with 50 Mesh Screen
- Strainer head and bowl are made of glass-filled polypropylene with EPDM gasket.
- Screens are made of 304SS with color-coded polypropylene frames and are removable for cleaning.
- Removable cap and o-ring for flush-out for self-cleaning operations.
- Integral mounting provision allows the strainer to be attached to machine using M10 or 3/8" bolts.
AA126 1" FNPT Flush-Out Line Strainer with 50 Mesh Screen
- Strainer head and bowl are made of glass-filled polypropylene with EPDM gasket.
- Screens are made of 304SS with color-coded polypropylene frames and are removable for cleaning.
- Removable cap and o-ring for flush-out for self-cleaning operations.
- Integral mounting provision allows the strainer to be attached to machine using M8 or 5/16" bolts.
| Brand | TeeJet |
|---|---|
| Store Location (Lititz, PA) | Aisle 09, Section N2 |
| Package Length (in) | 11.40" |
| Package Width (in) | 5.40" |
| Package Height (in) | 4.40" |
| Manufacturer Part Number | AA126ML-5-50 |
| Type | Flush-out |
| Series | AA126ML |
| Nominal Size | 1-1/4 in |
| Connection Type | FNPT |
| Mesh Size | 50 |
| Mesh Material | Stainless Steel |
| Mounting Type | Lug |
| Material | Polypropylene |
| Pressure Rating | 200 psi |
| Brand | TeeJet |
|---|---|
| Store Location (Lititz, PA) | Aisle 09, Section N2 |
| Package Length (in) | 11.40" |
| Package Width (in) | 5.40" |
| Package Height (in) | 4.40" |
| Manufacturer Part Number | AA126ML-5-50 |
| Type | Flush-out |
| Series | AA126ML |
| Nominal Size | 1-1/4 in |
| Connection Type | FNPT |
| Mesh Size | 50 |
| Mesh Material | Stainless Steel |
| Mounting Type | Lug |
| Material | Polypropylene |
| Pressure Rating | 200 psi |
| Brand | TeeJet |
|---|---|
| Store Location (Lititz, PA) | Aisle 09, Section N2 |
| Package Length (in) | 9.00" |
| Package Width (in) | 4.00" |
| Package Height (in) | 3.00" |
| Manufacturer Part Number | AA126ML-3-50 |
| Type | Flush-out |
| Series | AA126ML |
| Nominal Size | 3/4 in |
| Connection Type | FNPT |
| Mesh Size | 50 |
| Mesh Material | Stainless Steel |
| Mounting Type | Lug |
| Material | Polypropylene |
| Pressure Rating | 200 psi |
| Brand | TeeJet |
|---|---|
| Store Location (Lititz, PA) | Aisle 09, Section N2 |
| Package Length (in) | 11.60" |
| Package Width (in) | 5.20" |
| Package Height (in) | 4.40" |
| Manufacturer Part Number | AA126ML-6-50 |
| Type | Flush-out |
| Series | AA126ML |
| Nominal Size | 1-1/2 in |
| Connection Type | FNPT |
| Mesh Size | 50 |
| Mesh Material | Stainless Steel |
| Mounting Type | Lug |
| Material | Polypropylene |
| Pressure Rating | 200 psi |
| Brand | TeeJet |
|---|---|
| Store Location (Lititz, PA) | Aisle 09, Section N2 |
| Package Length (in) | 8.60" |
| Package Width (in) | 4.40" |
| Package Height (in) | 3.00" |
| Manufacturer Part Number | AA126ML-4-50 |
| Type | Flush-out |
| Series | AA126ML |
| Nominal Size | 1 in |
| Connection Type | FNPT |
| Mesh Size | 50 |
| Mesh Material | Stainless Steel |
| Mounting Type | Lug |
| Material | Polypropylene |
| Pressure Rating | 200 psi |
