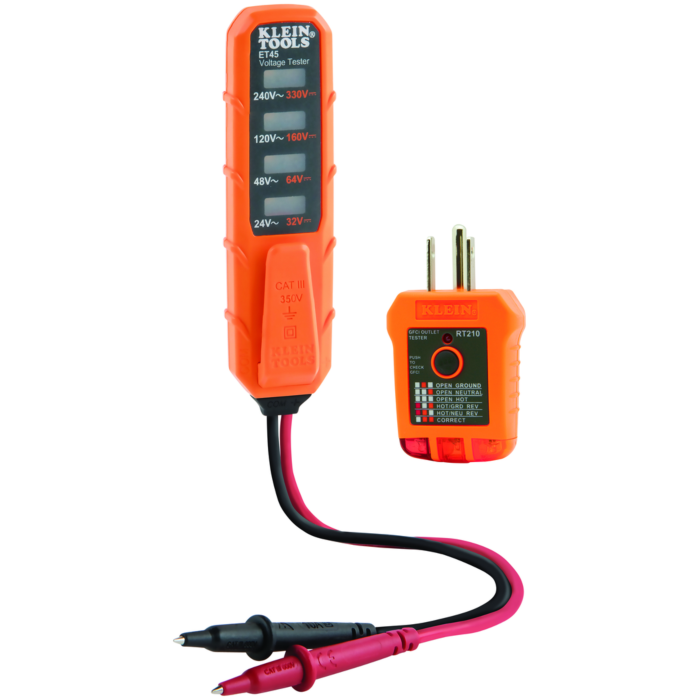

Klein Tools' Cat. No. ET45VP Kit includes an Electronic Voltage Tester, Cat. No. ET45 and a Receptacle Tester, Cat. No. RT210. The ET45 is designed as a simple, easy to use tester to check, verify or troubleshoot common residential electrical wiring in electrical outlets, light fixtures, doorbells and more. This tester does not require batteries, and features a pocket clip for convenient carrying. The RT210 is designed to detect the most common wiring problems in standard and GFCI receptacles. A convenient chart on the tester helps determine wiring condition in outlet, based on LED lights results. Conditions indicated: open ground, reverse polarity, open hot, open neutral, hot / ground reversed.
- Electronic voltage tester is designed to test AC voltages from 24 to 240V AC at four useful levels
- Tests DC voltages from 32 to 330V at four levels
- Built-in test lead holder on back of voltage tester holds the leads in one of two positions - one so that they are spaced correctly to test tamper-resistant US-style outlets and the other for convenient storage of the test leads
- Batteries not required; voltage tester is powered by the applied voltage
- Voltage tester is rated CATIII 350V, Class 2, Double insulation and has IP44 ingress protection
- Receptacle tester detects the most common wiring problems in standard and GFCI receptacles
- Works on GFI outlets and confirms operation of the ground fault protective device
- Nominal Voltage of receptacle tester - 110/125V AC at 50/60Hz in 3-wire outlet
- ET45: Built-in Test Lead Holders; RT210: Convenient Chart on the Tester
- Read, understand, and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use.
- Before each use, verify tester operation by measuring a known voltage.
- Never use the tester on a circuit with voltages that exceed the category based rating of this tester.
- Always adhere to local and national safety codes. Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed.
- Usage of this tester in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.
Brand | Klein Tools |
---|---|
Date Added | May 1, 2024 |
UPC | 092644692994 |
Package Length (in) | 6.50" |
Package Width (in) | 3.00" |
Package Height (in) | 4.00" |
Manufacturer Part Number | ET45VP |
Type | ET45 - Electronic Products; RT210 - GFCI and Standard Receptacle Tester |
Application | Measure AC/DC Voltage and Determine Wiring Condition in Outlet |
Material | Plastic Housing, PCB with Electronic Components |
Overall Height | ET45 - 1.19" (3 cm); RT210 - 2.88" (7.3 cm) |
Overall Width | ET45 - 1.05" (2.7 cm); RT210 - 1.88" (4.8 cm) |
Standard | ET45: CATIII 350V, CE |
Overall Length | ET45 - 4.45" (11.3 cm); RT210 - 1.62" (4.1 cm) |
Included | ET45 Electronic Voltage Tester; RT210 Receptacle Tester |
Pollution Degree | ET45 - 2 |
Frequency | ET45 - 50/60 Hz |
Ingress Protection | ET45 - IP44 |
Lead Length | ET45 - 9" (23 cm) |
Integral Lead Storage | ET45 - Yes |
Drop Protection | ET45 - 9.9' (3 m); RT210 - 6.6' (2 m) |
Display | ET45 - Analog LED |
Interchangeable Leads | ET45 - No |
Voltage | ET45 - AC Level Indicators - 24V, 48V, 120V, 240V; DC Level Indicators - 32V, 64V, 160V, 330V; RT210 - 110/125V AC at 50/60Hz in. 3-Wire Outlet |
Height | 1.3800 in |
Width | 4.6300 in |
Depth | 7.8800 in |
Weight | 0.2240 lbs |
