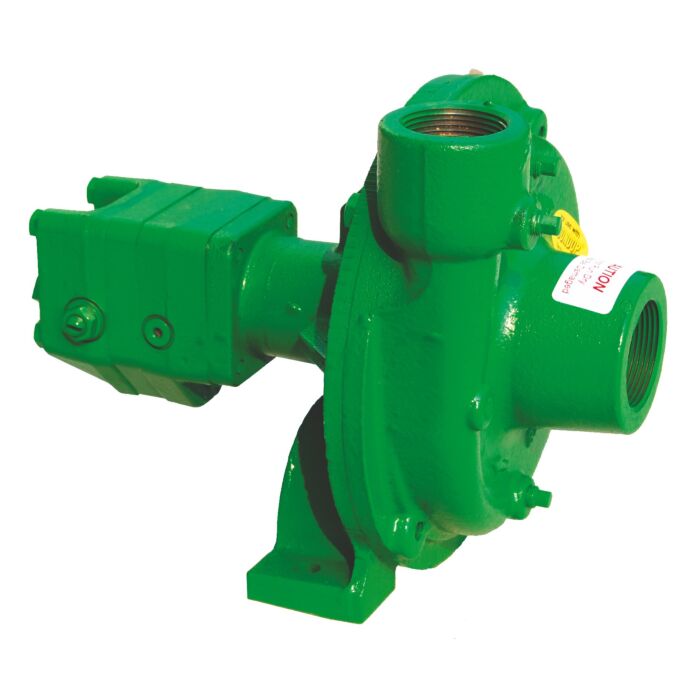

1-1/2 in FNPT 1-1/4 in FNPT 135 gpm Ace Hydraulic Centrifugal Pump
SKU: FMC150HYD206 | Location: Aisle 11, Section X1
$894.99
PICKUP
Your store: PaulB Lititz, PA |
DELIVERY
Ship to your home or business
Only 1 in stock! 1 in stock
Due to the low inventory, we recommend contacting the store to verify availability.
Features
Specifications
Centrifugal pump design provides great resistance to abrasive solutions and extra flow for agitation. the advantages of the hydraulic motor driven pump are mounting versatility, customized performance and ease of maintenance. all hydraulic driven pumps are equipped with a stainless steel shaft and wear ring for excellent corrosion resistance.
- Recommended for use on the following hydraulic systems - pressure compensating closed center, load sensing or pressure flow compensating closed center, open center up to 16 gpm
- Integral needle valve bypasses up to 9 gpm (34 lpm) on open center systems
- Standard viton® carbon/ceramic seal or optional severe duty silicon carbide mechanical seal
- Chemical resistant valox® or optional cast iron or polypropylene impeller
- Stainless steel shaft and wear ring
| Brand | Ace |
|---|---|
| UPC | 681056499200 |
| Store Location (Lititz, PA) | Aisle 11, Section X1 |
| Package Length (in) | 14.20" |
| Package Width (in) | 12.40" |
| Package Height (in) | 13.60" |
| Manufacturer Part Number | FMC-150-HYD-20 |
| Type | Ace Hydraulic |
| Inlet Connection Size | 1-1/2 in FNPT |
| Outlet Connection Size | 1-1/4 in FNPT |
| Flow Rate | 135 gpm |
| Maximum Pressure | 120 psi |
| Housing Material | Cast Iron |
