Centrifugal pump design provides great resistance to abrasive solutions and extra flow for agitation. the advantages of the hydraulic motor driven pump are mounting versatility, customized performance and ease of maintenance. all hydraulic driven pumps are equipped with a stainless steel shaft and wear ring for excellent corrosion resistance.

Suction 1 in discharge 3/4 in - 204 motor requires 4 gpm (15.1 lpm) hydraulic flow on pc closed and open center systems, 206 motor requires 7 gpm (26.75 lpm) hydraulic flow on ls closed and open center systems
Integral needle valve bypasses up to 9 gpm (34 lpm) on open center systems
Standard viton® carbon/ceramic or optional severe duty silicon carbide mechanical seal
Polypropylene corrosion resistant construction
Stainless steel shaft and hardware

Brand

Ace

UPC

681056497770

Package Length (in)

15.80"

Package Width (in)

11.20"

Package Height (in)

10.40"

Manufacturer Part Number

FMC-75-HYD-206

Type

Ace Hydraulic

Inlet Connection Size

1 in NPT

Outlet Connection Size

3/4 in NPT

Flow Rate

27 gpm

Maximum Pressure

100 psi

Housing Material

Polypropylene

My Cart

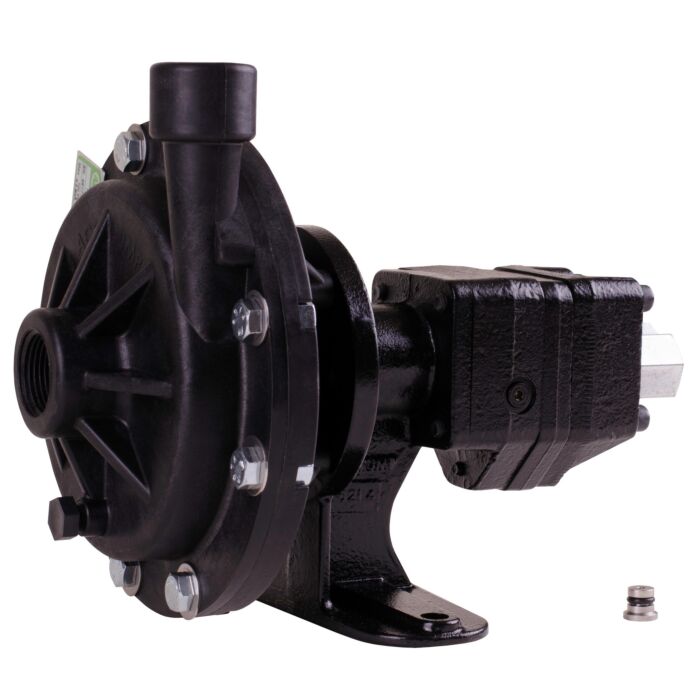

1 in NPT 3/4 in NPT 27 gpm Ace Hydraulic Centrifugal Pump
