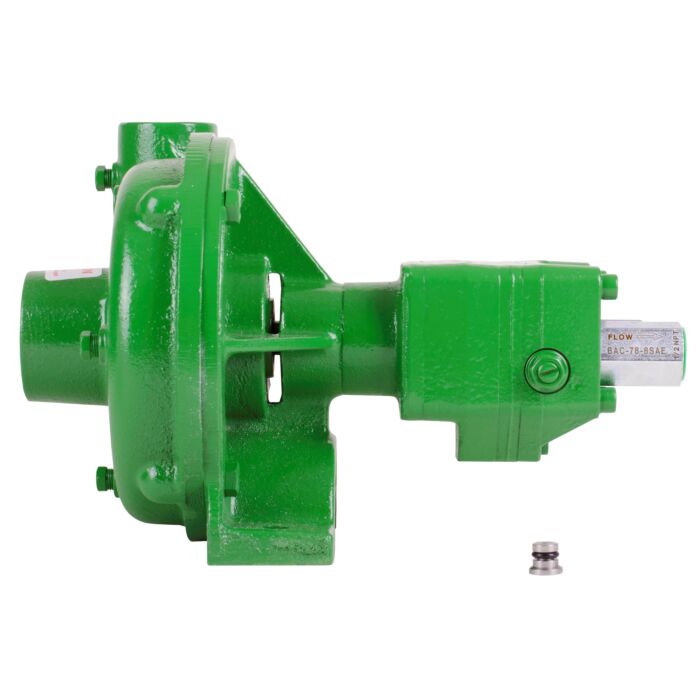

1-1/4 in FNPT 1 in FNPT 85 gpm Ace Hydraulic Centrifugal Pump
SKU: FMCHYD204 | Location: Aisle 11, Section X1
$864.99
PICKUP
Your store: PaulB Lititz, PA |
DELIVERY
Ship to your home or business
2 In stock
Features
Specifications
Commonly used on farms of all sizes, the ace fmc-hyd-204 centrifugal pump is recommended for open center systems up to 13 gpm (49.2 lpm) using internal needle bypass or a pressure compensating closed center system. the performance may be able to be increased by changing the supply of hydraulic oil that is sent to the motor. this particular product's mounting possibilities is not related to the location of the pto or engine drive shaft.
- Suction 1-1/4 in discharge 1 in - 204 motor requires 4 gpm (15.1 lpm) hydraulic flow on pc closed and open center systems, 210 motor requires 10 gpm (37.9 lpm) hydraulic flow on ls closed and open center systems, 310 motor requires 16 gpm(60.6 lpm) hydraulic flow on large open center systems
- Integral needle valve bypasses up to 9 gpm (34 lpm) on open center systems
- Standard viton® carbon/ceramic seal or optional severe duty silicon carbide mechanical seal
- Chemical resistant valox® or optional cast iron impeller
- Stainless steel shaft and wear ring
Brand | Ace |
---|---|
UPC | 681056498005 |
Store Location (Lititz, PA) | Aisle 11, Section X1 |
Package Length (in) | 12.80" |
Package Width (in) | 9.60" |
Package Height (in) | 9.40" |
Manufacturer Part Number | FMC-HYD-204 |
Type | Ace Hydraulic |
Inlet Connection Size | 1-1/4 in FNPT |
Outlet Connection Size | 1 in FNPT |
Flow Rate | 85 gpm |
Maximum Pressure | 100 psi |
Housing Material | Cast Iron |
