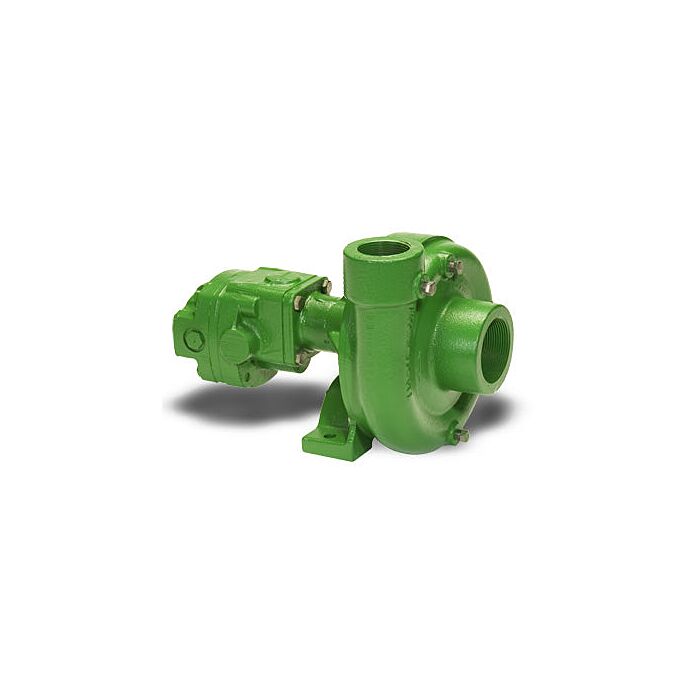

FMC-200-HYD-304 Hydraulic Motor Driven Centrifugal Pump with 2" NPT Suction x 1-1/2" NPT Discharge
SKU: FMC200HYD304
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$1,207.20
Features
Specifications
Downloads
Centrifugal pump design provides great resistance to abrasive solutions and extra flow for agitation. The advantages of the hydraulic motor driven pump are mounting versatility, customized performance and ease of maintenance.
- Ideal for spraying, large tank agitation, liquid transfer, and spray - transfer combinations.
- The 304 motor requires 11 GPM (41.6 LPM) maximum hydraulic fluid input. Recommended for: Pressure Compensating Closed Center Systems, Load Sensing Closed Center Systems, Open Center Systems up to 20 GPM (75.7 LPM) using internal needle valve bypass
| Brand | ACE PUMPS |
|---|---|
| UPC | 681056498593 |
| Package Length (in) | 15.40" |
| Package Width (in) | 10.80" |
| Package Height (in) | 10.20" |
| Manufacturer Part Number | FMC-200-HYD304 |
| Type | Hydraulic Centrifugal Pump |
| Inlet Size | 2" Female NPT |
| Outlet Size | 1-1/2" Female NPT |
| Max Flow Rate | 200 GPM |
| Max Pressure | 120 PSI |
| Material | Cast Iron |
