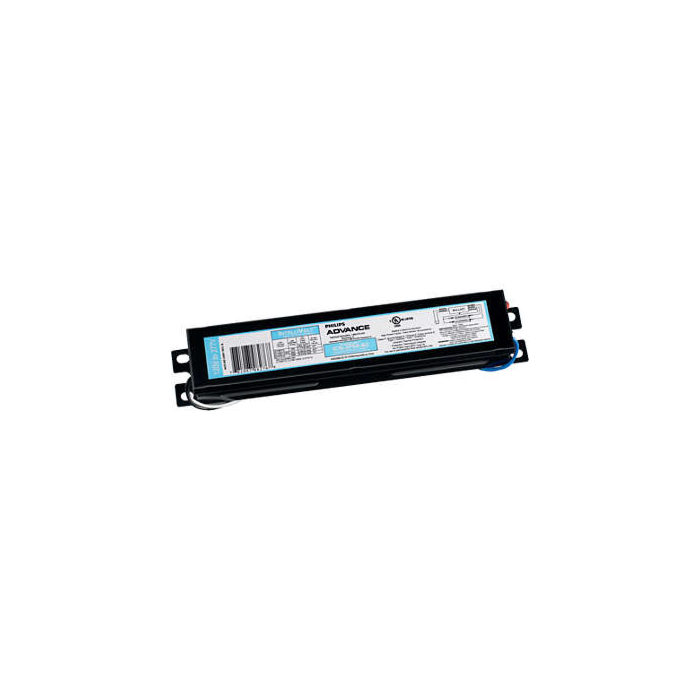

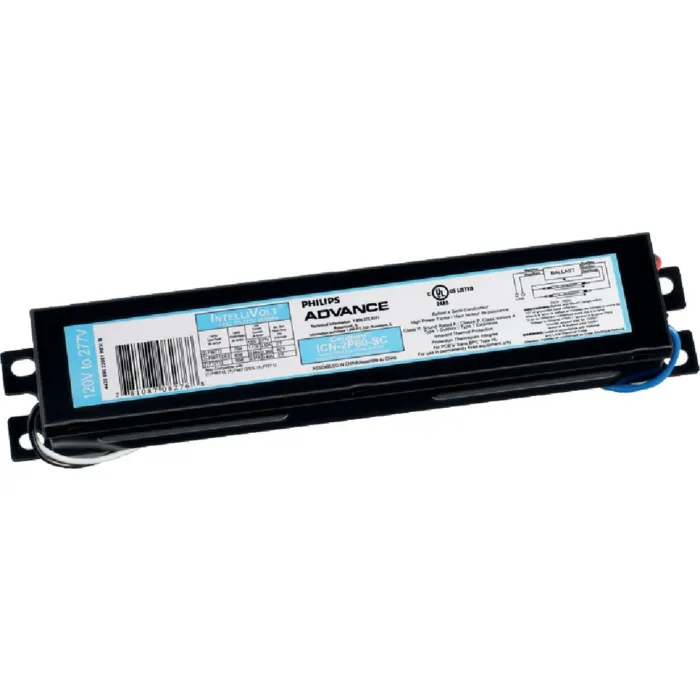

No matter what the conditions require, operating at a variety of line voltages between 120V to 480V, whether located in high ambient temperature environments (requiring a 90° C rating) or not, our family of Philips Advance Centium ballasts are ideal for a wide variety of applications.
Brand | Philips Lighting |
---|---|
UPC | 781087085288 |
Store Location (Lititz, PA) | Aisle 10, Section D2 |
Package Length (in) | 9.60" |
Package Width (in) | 2.40" |
Package Height (in) | 1.60" |
Manufacturer Part Number | 199786 |
Short product name | ELE BALLAST (2) F96T12/HO 120-277V |
Full product name | ELE BALLAST (2) F96T12/HO 120-277V |
Skus/Case | 10 |
Bar code on pack | 781087085288 |
Logistics code(s) | 913701212601 |
eop_net_weight_pp | 0.613 kg |
Pieces per Sku | 1 |
Product number | ICN2S110SC35I |
Bar code on case | 30781087085289 |
T-case maximum | 70 C |
catalog | ICN2S110SC35I |
idwItemCtrl | 781087085288 |
upc | 781087085288 |
gtin | 00781087085288 |
brandLabel | PHILIPS ADVANCE |
unspsc | 39101901 |
igcc | 3700 |
idwIndex | 10903176 |
sequenceId | 346 |
Width B1 | 1.7 in |
Length A2 | 8.90 in |
Height C1 | 1.18 in |
Length A1 | 9.5 in |
Allowed Wiring Config(Tandem) | Yes |
Allowed Wiring Config(Through) | Yes |
Lamp Connection | Series |
Wire Length by Color | See data sheet |
Max Dist. Ball to Lamp(Remote) | 20' |
Wire Striplength | 0.50/0.375 mm |
Color output terminals | No terminals |
Max Dist. Ball to Lamp(Tandem) | Red = 20' |
Color input terminals | No terminals |
Connector type | No connector |
Max Dist.Ball to Lamp(Through) | Red = 20' |
Allowed Wiring Config(Remote) | Yes |
Wire Type | Solid |
Wire Gauge | 18AWG |
Housing Dimensions | 9.5" x 1.7" x 1.18" |
Housing | SC |
Lamp Type | F96T12/HO |
Starting Method | Rapid Start |
Family Name | Centium |
Ballast Type | Electronic Fluorescent |
Line Frequency | 50/60 Hz |
Input Voltage | 120-277 V |
Number of Lamps | 1/2 piece |
Suitable for Outdoor use? | Yes |
Base Model | ICN2S110SC |
Housing Material | Metal |
Ignition time | 1 s |
Automatic restart | No |
Lamp Current Crest Factor | 1.7 - |
Max THD | 10 % |
Sound Rating | A |
Power Factor | 0.98 |
Input Power Gear | 191-186 W |
Ballast factor | 0.9 - |
Ballast Efficacy Factor | 0.47 - |
cUL certificate | No |
UL Recognized | No |
CSA certificate | Yes |
RoHS Compliant | Yes |
NEMA Premium | No |
FIDE Certificate | No |
SASO Certificate | No |
NOM certificate | No |
CEC Listing | Yes |
Circle E logo | Yes |
Energy Star | No |
EMC Immunity | FCC Non-Consumer |
UL Listed | Yes |
CEE Rated | No |
CSA E | Yes |
DOE | Yes |
Approbation Marks | UL, CSA, DOE, CSA-E, RoHS |
Rated Lamp Watts | 110W |
