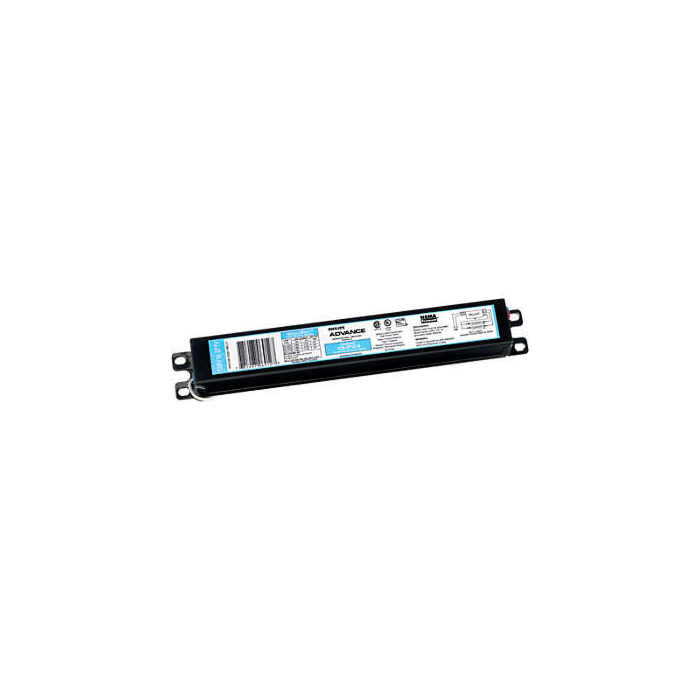

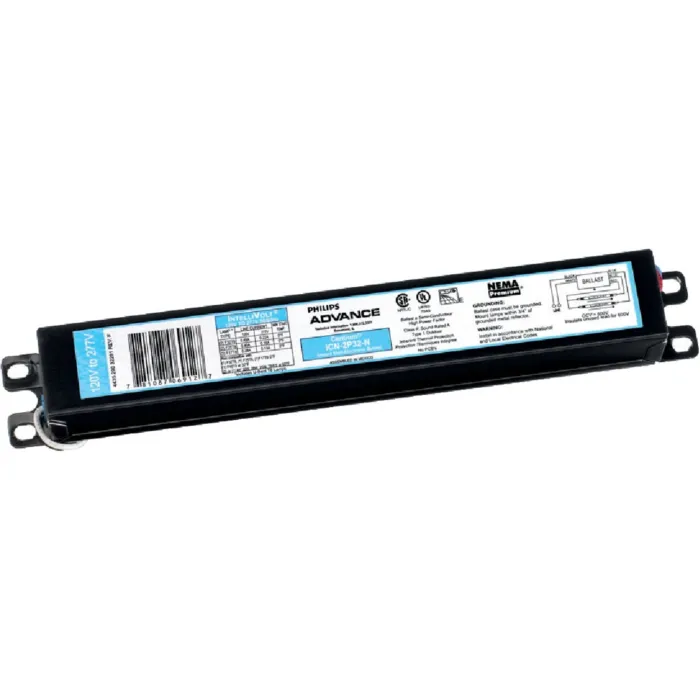

ADV ICN4P32N35I (ADVANCE) BALLAST T8 4-F17/F25/F28/F30/F32 FB16/FB24/FB29/FB30/FB32 3-F40T8 120/277V ELECTRONIC 0.88BF 112W 0.94A (REPL ICN4P32SC35I)
SKU: P109132
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$34.99
Features
Specifications
Reliable and energy efficient Philips Advance's Centium commercial grade specifications, plus added benefits of lamp striation reduction technology.
| Brand | Philips Lighting |
|---|---|
| UPC | 781087091517 |
| Store Location (Lititz, PA) | Aisle 10, Section D2 |
| Package Length (in) | 7.80" |
| Package Width (in) | 2.00" |
| Package Height (in) | 0.80" |
| Manufacturer Part Number | 109132 |
| Skus/Case | 10 |
| eop_net_weight_pp | 0.459 kg |
| Logistics code(s) | 913701220301 |
| Bar code on case | 30781087091518 |
| Full product name | ELE BALLAST (4) F32T8 120-277V |
| Short product name | ELE BALLAST (4) F32T8 120-277V |
| Bar code on pack | 781087091517 |
| Product number | ICN4P32N35I |
| Pieces per Sku | 1 |
| T-case maximum | 70 C |
| catalog | ICN4P32N35I |
| idwItemCtrl | 781087091517 |
| upc | 781087091517 |
| gtin | 00781087091517 |
| brandLabel | PHILIPS ADVANCE |
| unspsc | 39101901 |
| igcc | 3700 |
| idwIndex | 11131836 |
| sequenceId | 375 |
| Height C1 | 1.00 in |
| Length A1 | 9.50 in |
| Width B1 | 1.30 in |
| Length A2 | 8.90 in |
| Color input terminals | No terminals |
| Allowed Wiring Config(Tandem) | Yes |
| Connector type | No connector |
| Allowed Wiring Config(Through) | Yes |
| Max Dist. Ball to Lamp(Remote) | ES = 6' / Standard = 20' |
| Wire Length by Color | See data sheet |
| Wire Type | Solid |
| Allowed Wiring Config(Remote) | Yes |
| Wire Striplength | 0.50/0.375 mm |
| Wire Gauge | 18AWG |
| Max Dist.Ball to Lamp(Through) | ES = 6' / Standard = 20' |
| Lamp Connection | Parallel |
| Color output terminals | No terminals |
| Max Dist. Ball to Lamp(Tandem) | ES = 6' / Standard = 20' |
| Suitable for Outdoor use? | Yes |
| Number of Lamps | 3/4 piece |
| Housing Dimensions | 9.5" x 1.3" x 1.0" |
| Line Frequency | 50/60 Hz |
| Base Model | ICN4P32N |
| Housing Material | Metal |
| Family Name | Centium |
| Ballast Type | Electronic Fluorescent |
| Housing | N |
| Lamp Type | F32T8 |
| Starting Method | Instant Start |
| Input Voltage | 120-277 V |
| Max THD | 10 % |
| Ignition time | 0.1 s |
| Sound Rating | A |
| Automatic restart | Yes |
| Lamp Current Crest Factor | 1.7 - |
| Ballast Efficacy Factor | 0.8 - |
| Input Power Gear | 111-111 W |
| Ballast factor | 0.89 - |
| Power Factor | 0.98 |
| NEMA Premium | Yes |
| DOE | No |
| CEE Rated | Yes |
| CSA E | No |
| Approbation Marks | UL, CSA, NEMA Premium, RoHS |
| SASO Certificate | No |
| UL Listed | Yes |
| RoHS Compliant | Yes |
| cUL certificate | No |
| CSA certificate | Yes |
| Circle E logo | No |
| UL Recognized | No |
| CEC Listing | Yes |
| Energy Star | No |
| FIDE Certificate | No |
| EMC Immunity | FCC Non-Consumer |
| NOM certificate | Yes |
| Rated Lamp Watts | 32W |
